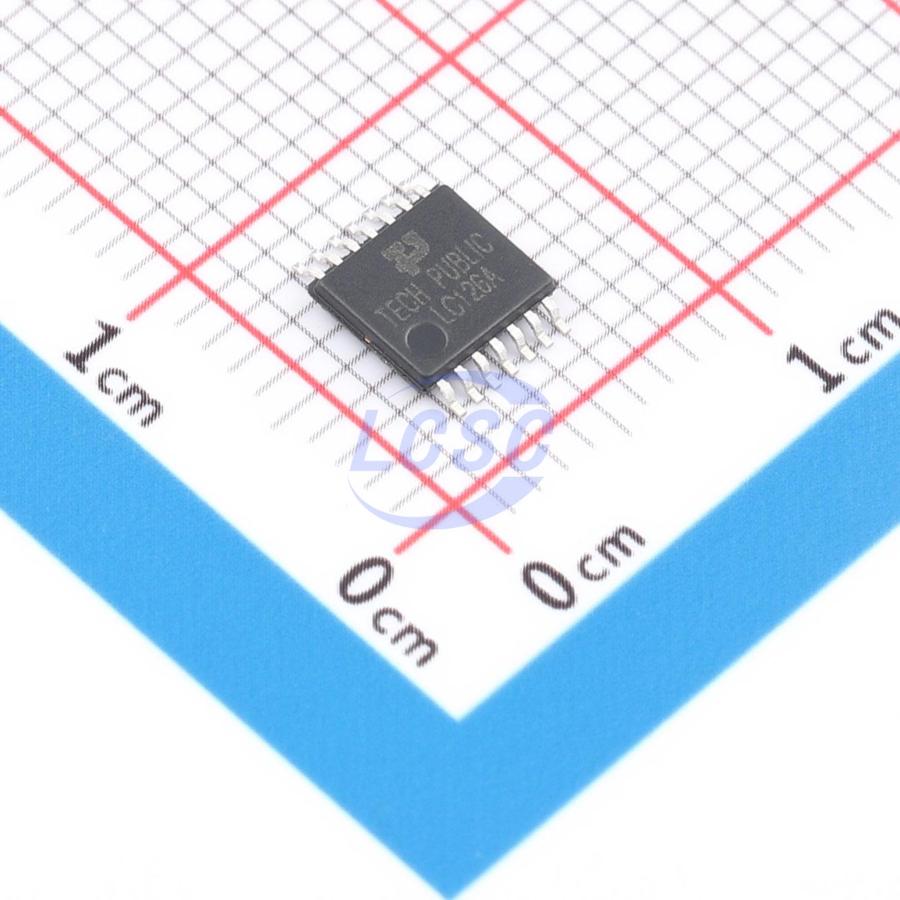

74LVC126APW-TP

Schmitt trigger 1.65V~3.6V 1 6ns@3.6V,15pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers

TSSOP-14RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LVC126APW-TP
Store part #: C54561846
Package / case: TSSOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,500 in stock

#C54561846

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹43.98	₹219.90
50+	₹34.40	₹1,720.00
150+	₹30.28	₹4,542.00
500+	₹25.16	₹12,580.00
2,500+	₹22.87	₹57,175.00
5,000+	₹21.50	₹1,07,500.00

Quantity (min 5, multiples of 5)

5 × ₹43.98

₹219.90

excl. GST

₹259.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74LVC126APW-TP

₹219.90 for 5 + GST

Specifications

Input type: Schmitt trigger
Function: Power-off isolation;Output enable;Level shifting
Series: 74LVC
Voltage - Supply: 1.65V~3.6V
Output Type: Tri-State
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 40uA
Propagation Delay: 6ns@3.6V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.193 g

Overview

This is a quad buffer/line driver with 3-state outputs controlled by an output enable input (nOE). When nOE is high, the outputs enter a high-impedance off state. The inputs can be driven by 2.7 V or 3.6 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action on all inputs enables the circuit to tolerate slower input rise and fall times.

Key features

Wide supply voltage range: 1.65 V to 3.6 V
CMOS low power consumption
Overvoltage-tolerant inputs up to 5.5 V
Latch-up performance exceeds 250 mA
Direct TTL-level interface compatible
ESD protection: HBM ANSI/ESDA/JEDEC JS-003 Class A exceeds 6000 V, CDM ANSI/ESDA/JEDEC JS-002 C3 exceeds 2000 V
I<sub>OFF</sub> circuitry supports partial power-down mode operation
JEDEC standards compliant: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V)
Package: TSSOP-14
