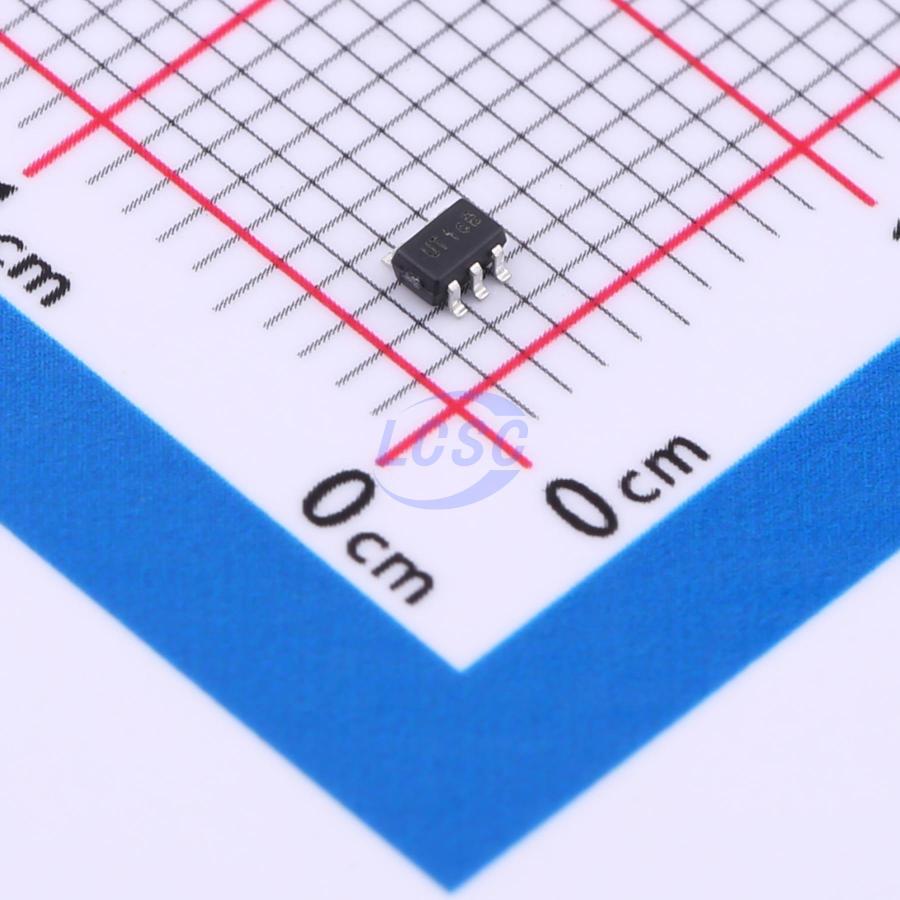

DIODES

74LVC1G02SE-7

TTL-compatible CMOS 1.65V~5.5V 1.7ns@5V,50pF 200uA SOT-353 Gates and Inverters RoHS

SOT-353ROHS3 CompliantActive

SINGLE 2 INPUT POSITIVE NOR GATE

Manufacturer: DIODES
Manufacturer part #: 74LVC1G02SE-7
Store part #: C460515
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,540 in stock

#C460515

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.48	₹112.40
50+	₹17.85	₹892.50
150+	₹15.86	₹2,379.00
500+	₹13.38	₹6,690.00
3,000+	₹12.28	₹36,840.00
6,000+	₹11.62	₹69,720.00

Quantity (min 5, multiples of 5)

5 × ₹22.48

₹112.40

excl. GST

₹132.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G02SE-7

₹112.40 for 5 + GST

Specifications

Input Type: TTL-compatible CMOS
output type: Push-pull
Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 1.7ns@5V,50pF
Features: Overvoltage-tolerant input;Local shutdown mode
Input Logic Level - Low: 700mV~800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V~2V
Quiescent Current(Iq): 200uA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

The 74LVC1G02 is a single 2- input positive NOR gate with a standard push- pull output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed- voltage environment. The device is fully specified for partial power down applications using IoFF. The IoFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = (A + B)(overline) or Y = A(overline) • B(overline)

Applications

Voltage level shifting
General- purpose logic
Power down signal isolation
Wide array of products such as:
PCs, networking, notebooks, netbooks, PDAs
Tablet computers, E- readers
Computer peripherals, hard drives, CD/DVD ROM
TV, DVD, DVR, set top boxes
Cell phones, personal navigation / GPS
MP3 players, cameras, video recorders

Key features

Wide Supply Voltage Range from 1.65 to 5.5V
±24mA Output Drive at 3.3V
CMOS low power consumption
IoFF Supports Partial- Power- Down Mode Operation
Inputs accept up to 5.5V
ESD Protection Tested per JESD 22
Exceeds 200- V Machine Model (A115)
Exceeds 2000- V Human Body Model (A114)
Exceeds 1000- V Charged Device Model (C101)
Latch- Up Exceeds 100mA per JESD 78, Class I
Range of Package Options
Direct Interface with TTL Levels
Totally Lead- Free & Fully RoHS Compliant
Halogen and Antimony Free. "Green" Device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SN74LVC1G02DC(LX)#C22469921lingxingic · SOT-353	lingxingic	SOT-353	340	₹5.69 · 340 in stock	View
74LVC1G02GW#C41407550TECH PUBLIC · SOT-353	TECH PUBLIC	SOT-353	6,990	₹5.49 · 6,990 in stock	View
AIP74LVC1G02GC353.TR#C4945061Wuxi I-core Elec · SOT-353	Wuxi I-core Elec	SOT-353	3,500	₹12.34 · 3,500 in stock	View
SN74LVC1G02DCKR#C113520TI · SC-70-5	TI	SC-70-5	40,240	₹8.77 · 40,240 in stock	View
SN74LVC1G02MDCKREP#C2861737TI · SC-70-5	TI	SC-70-5	87	₹312.06 · 87 in stock	View
