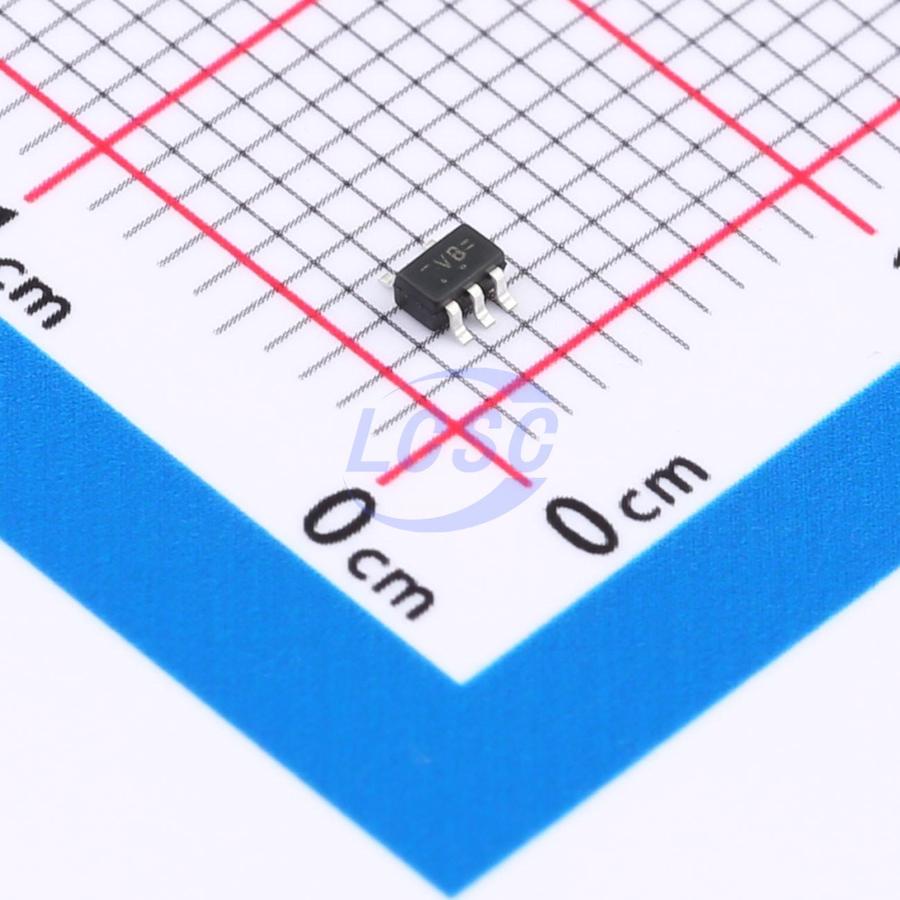

74LVC1G02GW
10uA 1.6V~5.5V 1.9ns@1.8V,15pF SOT-353 Gates and Inverters
SOT-353RoHSActive
SINGLE 2-INPUT NOR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G02GW
- Store part #
- C41407550
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,990 in stock
#C41407550
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.49 | ₹54.90 |
| 100+ | ₹4.34 | ₹434.00 |
| 300+ | ₹3.76 | ₹1,128.00 |
| 3,000+ | ₹3.33 | ₹9,990.00 |
| 6,000+ | ₹2.99 | ₹17,940.00 |
| 9,000+ | ₹2.82 | ₹25,380.00 |
10 × ₹5.49
₹54.90
excl. GST
₹64.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G02GW
₹54.90 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- 74LVC
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.6V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Propagation Delay
- 1.9ns@1.8V,15pF
- Output Logic Level - Low
- 100mV~550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The 74LVC1G02 is a 2-input NOR gate device which provides the Function v = A+B(overline) in positive logic. This device has power-down protective circuit preventing device from destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs Tablet Computers, E-readers Computer Peripherals, Hard Drives, CD/DVD ROM TV, DVD, DVR, Set-Top Box Cell Phones, Personal Navigation / GPS MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 1.6V ~ 5.5V
- Low Power Current: lcc = 10μA (Max.)
- ±24mA Output Drive (VCC = 3.0V)
- Power Down Protection
