NexperiaDatasheet (PDF)

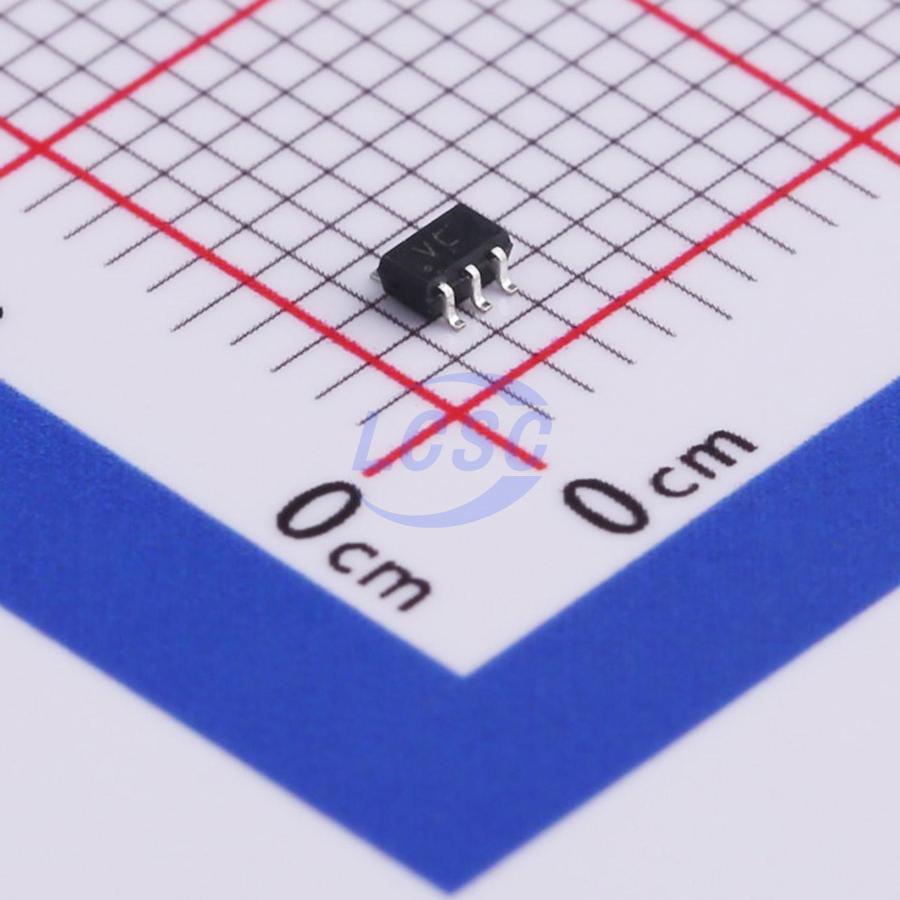

74LVC1G04GW-Q100H
TTL兼容CMOS 1.65V~5.5V 3.7ns@5.5V,50pF 4uA 1 TSSOP-5-1.3mm Gates and Inverters RoHS
TSSOP-5-1.3mmROHS3 CompliantActive
Single inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC1G04GW-Q100H
- Store part #
- C503430
- Package / case
- TSSOP-5-1.3mm
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C503430
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.32 | ₹171.60 |
| 50+ | ₹26.90 | ₹1,345.00 |
| 150+ | ₹23.72 | ₹3,558.00 |
| 500+ | ₹19.75 | ₹9,875.00 |
| 3,000+ | ₹17.99 | ₹53,970.00 |
| 6,000+ | ₹16.93 | ₹1,01,580.00 |
5 × ₹34.32
₹171.60
excl. GST
₹202.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G04GW-Q100H
₹171.60 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- TTL兼容CMOS
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 3.7ns@5.5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Features
- Power shutdown protection;Noise suppression function
- Input Logic Level - High
- 1.7V;2V
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP74LVC1G04GC353.TR#C3294714Wuxi I-core Elec · SOT-353 | Wuxi I-core Elec | SOT-353 | 640 | ₹12.67 · 640 in stock | View |
 | Aip74LVC1G04GC.TR#C5139006Wuxi I-core Elec · SOT-353 | Wuxi I-core Elec | SOT-353 | 60 | ₹12.33 · 60 in stock | View |
 | 74LVC1G04SE-7#C264081DIODES · SOT-353 | DIODES | SOT-353 | 12,130 | ₹8.04 · 12,130 in stock | View |
 | 74LVCE1G04SE-7#C842501DIODES · SOT-353 | DIODES | SOT-353 | 13 | ₹59.07 · 13 in stock | View |
