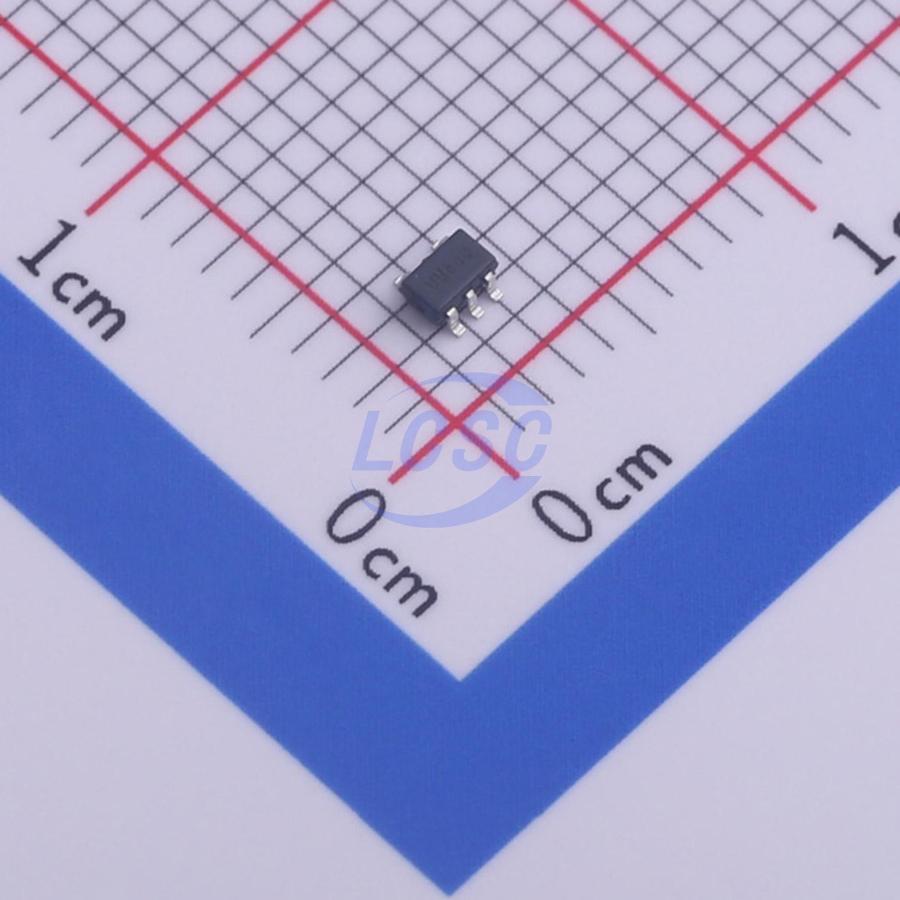

DIODES

74LVC1G06SE-7

200uA 1.65V~5.5V 1 4ns@5V,50pF SOT-353 Gates and Inverters RoHS

SOT-353ROHS3 CompliantActive

SINGLE INVERTER BUFFER/DRIVER WITH OPEN DRAIN OUTPUT

Manufacturer: DIODES
Manufacturer part #: 74LVC1G06SE-7
Store part #: C460519
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,115 in stock

#C460519

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.03	₹110.15
50+	₹17.27	₹863.50
150+	₹15.23	₹2,284.50
500+	₹12.67	₹6,335.00
3,000+	₹11.55	₹34,650.00
6,000+	₹10.86	₹65,160.00

Quantity (min 5, multiples of 5)

5 × ₹22.03

₹110.15

excl. GST

₹129.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G06SE-7

₹110.15 for 5 + GST

Specifications

Features: Power shutdown protection
Input Logic Level - Low: 580mV~1.65V
Logic Family: 74LVC
Input Logic Level - High: 1.07V~3.85V
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 200uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1
Output Logic Level - Low: 800mV
Propagation Delay: 4ns@5V,50pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.015 g

Overview

The 74LVC1G06 is a single inverter gate with an open drain output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The input is tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The open-drain output can be connected to other open drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32mA.

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
Wide Array of Products Such as: PCs, Networking, Notebooks, Netbooks, PDAs, Tablet Computers, E-readers, Computer Peripherals, Hard Drives, CD/DVD ROM, TV, DVD, DVR, Set Top Box, Cell Phones, Personal Navigation / GPS, MP3 players, Cameras, Video Recorders

Key features

Wide Supply Voltage Range from 1.65 to 5.5V
24mA Sink Current at 3.3V
CMOS Low Power Consumption
IOFF Supports Partial-Power-Down Mode Operation
Inputs Accept up to 5.5V
ESD Protection Tested per JESD 22 Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Range of Package Options
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
