Slkor

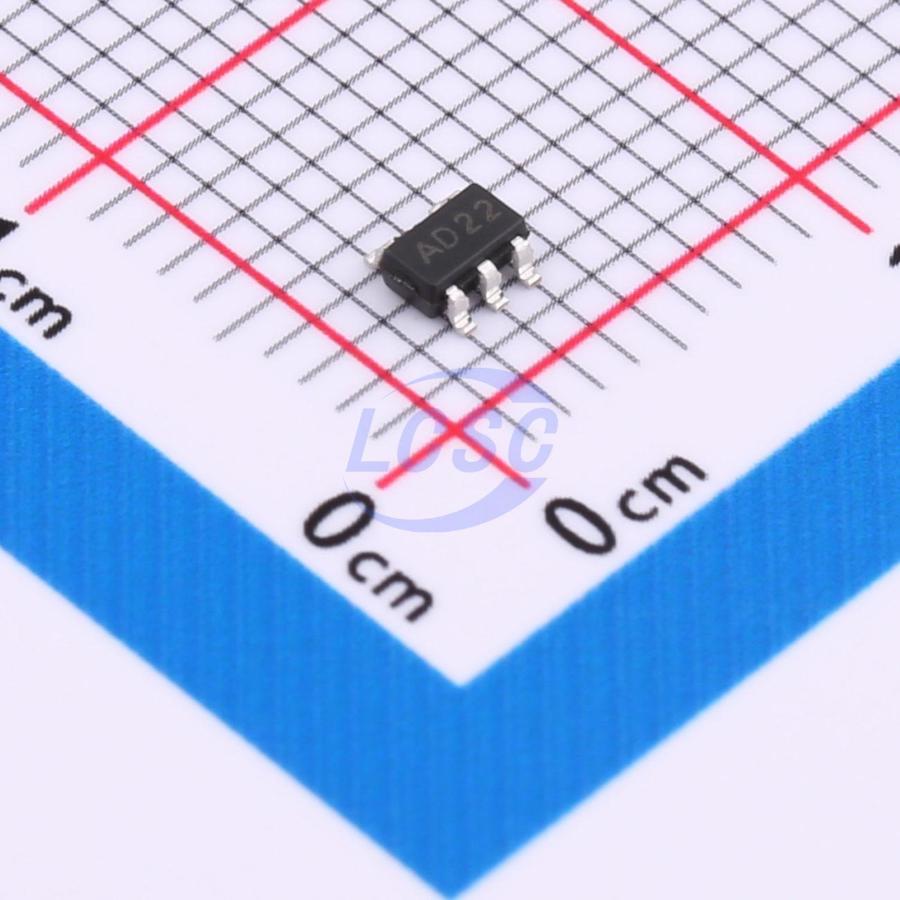

74LVC1G07DBVR

1.65V~5.5V 1 1 2.2ns@3.3V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-23-5ROHS CompliantActive

SINGLE BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT

Manufacturer: Slkor
Manufacturer part #: 74LVC1G07DBVR
Store part #: C7496536
Package / case: SOT-23-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,060 in stock

#C7496536

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.25	₹76.25
50+	₹12.15	₹607.50
150+	₹10.58	₹1,587.00
500+	₹9.41	₹4,705.00
3,000+	₹8.48	₹25,440.00
6,000+	₹8.00	₹48,000.00

Quantity (min 5, multiples of 5)

5 × ₹15.25

₹76.25

excl. GST

₹89.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G07DBVR

₹76.25 for 5 + GST

Specifications

Function: Power-off isolation
Series: 74LVC
Voltage - Supply: 1.65V~5.5V
Current - Output Low(IOL): 24mA
Output Type: Open-drain
Number of Bits per Element: 1
Operating Temperature: -40℃~+105℃
Number of Elements: 1
Quiescent Supply Current: 4uA
Propagation Delay: 2.2ns@3.3V,50pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

The 74LVC1G07 provides the non-inverting buffer. The output of this device is an open drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
