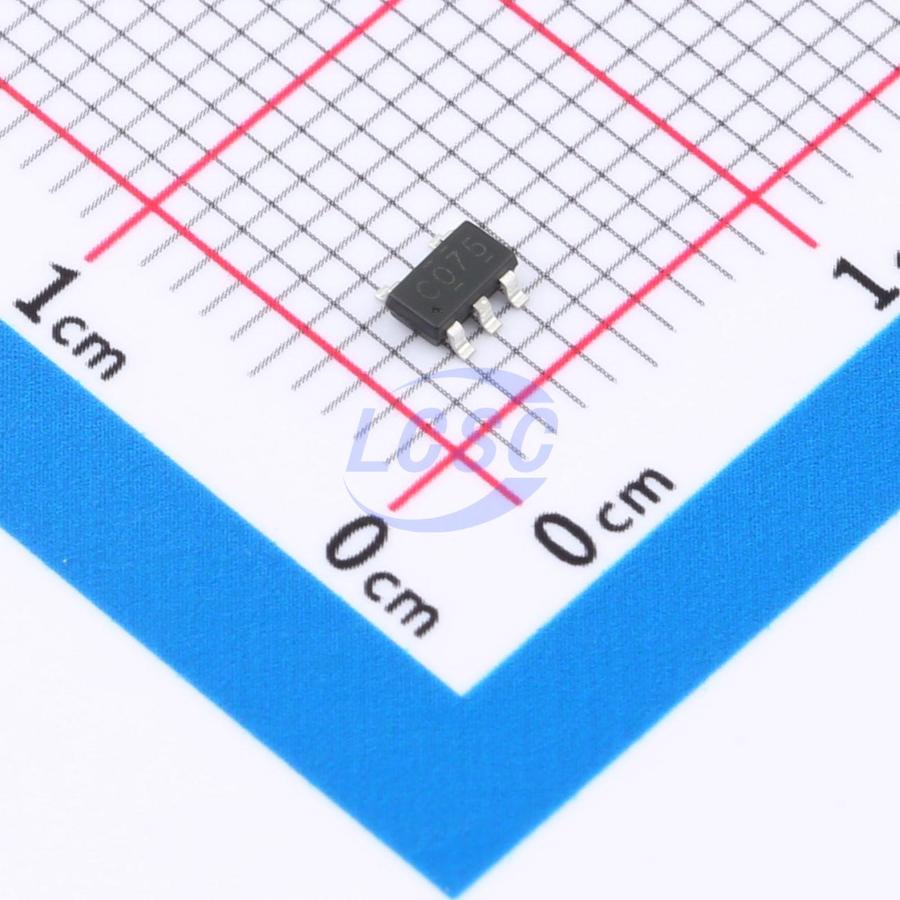

74LVC1G07LT05ARCQ
1.65V~5.5V 1 1 SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
Single Buffer/Driver With Open-Drain Output
- Manufacturer
- GR
- Manufacturer part #
- 74LVC1G07LT05ARCQ
- Store part #
- C48391414
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,680 in stock
#C48391414
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.25 | ₹85.00 |
| 200+ | ₹3.31 | ₹662.00 |
| 600+ | ₹2.79 | ₹1,674.00 |
| 3,000+ | ₹2.47 | ₹7,410.00 |
| 9,000+ | ₹2.21 | ₹19,890.00 |
| 21,000+ | ₹2.06 | ₹43,260.00 |
20 × ₹4.25
₹85.00
excl. GST
₹100.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G07LT05ARCQ
₹85.00 for 20 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Operating Temperature
- 0℃~+70℃
- Quiescent Supply Current
- 10uA
- Function
- Level shifting;Power-off isolation
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
This single buffer/driver is designed for VCC operating voltages from 1.65 V to 5.5 V. The 74LVC1G07 device features an open-drain output that can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. Its maximum sink current is 32 mA.
Key features
- 5 V VCC operation supported
- Inputs and open-drain outputs accept up to 5.5 V
- Voltage translation up or down
- Low power consumption, max ICC of 10 μA
- ±24 mA output drive capability at 3.3 V
- Ioff feature supports hot insertion, partial power-down, and back-drive protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G125LT05ARCQ#C46527077GR · SOT-23-5 | GR | SOT-23-5 | 2,900 | ₹5.11 · 2,900 in stock | View |
 | 74LVC1G34LT05ARCQ#C48391412GR · SOT-23-5 | GR | SOT-23-5 | 2,220 | ₹4.22 · 2,220 in stock | View |
