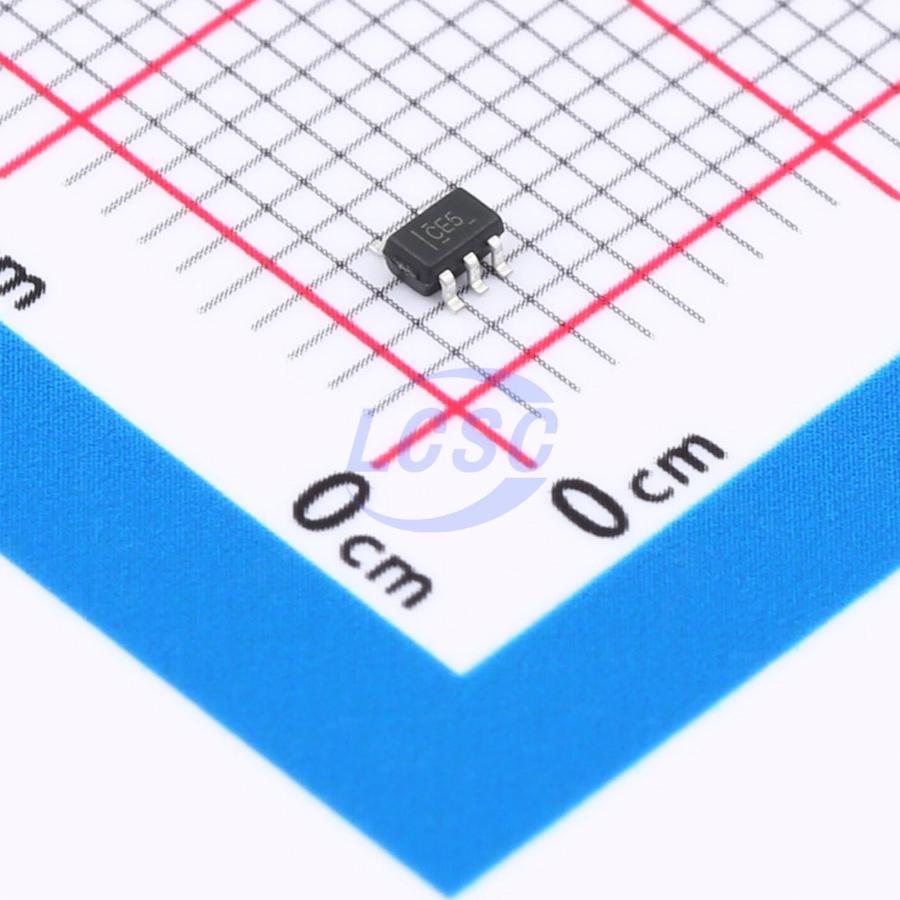

74LVC1G08CT05ARCQ
AND Gate IC 1 Channel SC-70-5
SC-70-5RoHSActive
Single 2-lnput Positive-AND Gate
- Manufacturer
- GR
- Manufacturer part #
- 74LVC1G08CT05ARCQ
- Store part #
- C46527069
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,820 in stock
#C46527069
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.25 | ₹105.00 |
| 200+ | ₹4.22 | ₹844.00 |
| 600+ | ₹3.69 | ₹2,214.00 |
| 3,000+ | ₹3.31 | ₹9,930.00 |
| 9,000+ | ₹2.99 | ₹26,910.00 |
| 21,000+ | ₹2.83 | ₹59,430.00 |
20 × ₹5.25
₹105.00
excl. GST
₹123.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G08CT05ARCQ
₹105.00 for 20 + GST
Specifications
- Features
- Live insertion protection;Local shutdown mode;Rear drive protection
- Operating Temperature
- 0℃~+70℃
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2.1V
- Logic Family
- 74LVC
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.035 g
Overview
This single 2-input AND gate is designed for VCC operating voltages from 1.65V to 5.5V. The 74LVC1G08 device performs the Boolean function Y = A AND B or Y = NOT(NOT A OR NOT B) in positive logic. This CMOS device features high output drive capability while maintaining low quiescent power consumption over a wide VCC operating range.
Key features
- 5V VCC operation
- Inputs accept up to 5.5V
- Down-translation to VCC capability
- Low power consumption, max ICC of 10μA
- ±24mA output drive at 3.3V
- Ioff supports hot-plug, partial power-down, and back-drive protection
