74LVC1G09CT05ARCQ

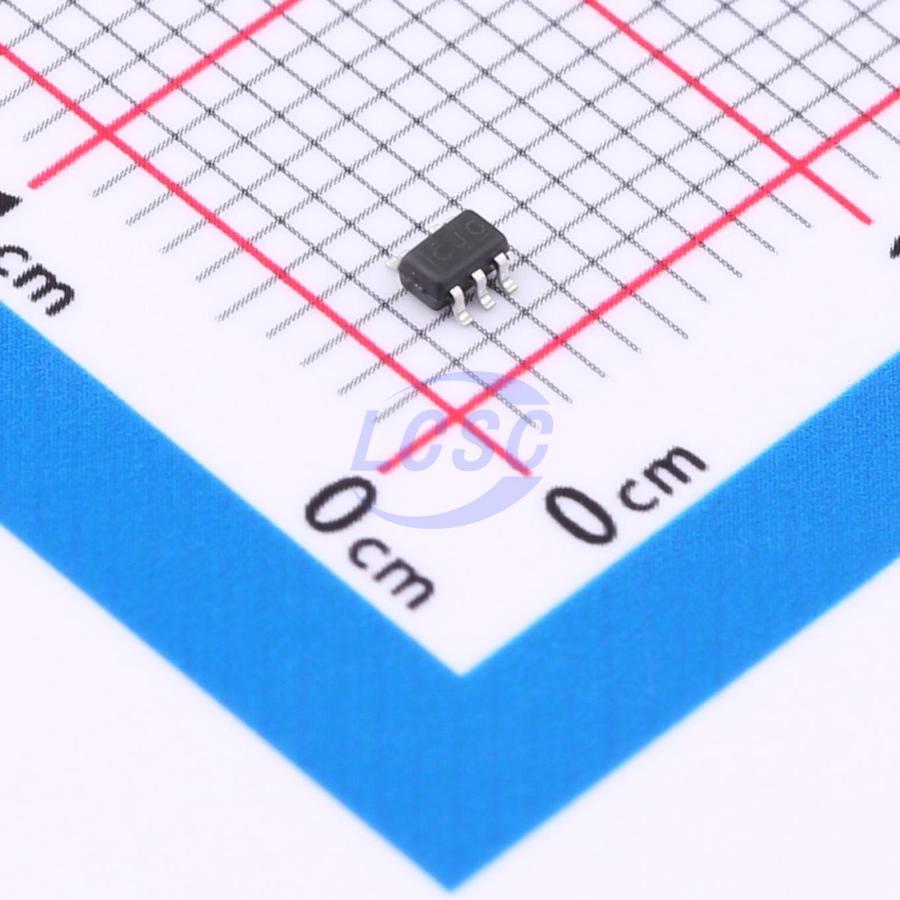

AND Gate IC 1 Channel SC-70-5
SC-70-5RoHSActive
Single 2-lnput Positive-AND Gate With Open-Drain Output
- Manufacturer
- GR
- Manufacturer part #
- 74LVC1G09CT05ARCQ
- Store part #
- C46527071
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,360 in stock
#C46527071
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.17 | ₹83.40 |
| 200+ | ₹3.25 | ₹650.00 |
| 600+ | ₹2.74 | ₹1,644.00 |
| 3,000+ | ₹2.43 | ₹7,290.00 |
| 9,000+ | ₹2.17 | ₹19,530.00 |
| 21,000+ | ₹2.02 | ₹42,420.00 |
20 × ₹4.17
₹83.40
excl. GST
₹98.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G09CT05ARCQ
₹83.40 for 20 + GST
Specifications
- output type
- Open-drain
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 90mV;100mV;150mV;250mV
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- 0℃~+70℃
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.036 g
Overview
The 74LVC1G09 is designed for 1.65V to 5.5V VCC operation. It is a single 2-input AND gate with open-drain output. It performs the Boolean function Y = A AND B or Y = NOT (A OR B) (positive logic). For digital operation, this device requires an external pull-up resistor to establish a logic HIGH level.
Key features
- 5V VCC operation supported
- Inputs and open-drain outputs accept up to 5.5V
- Low power consumption, maximum ICC of 10 μA
- Output drive capability of ±24mA (VCC=3.3V)
- Ioff supports partial power-down mode
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G08CT05ARCQ#C46527069GR · SC-70-5 | GR | SC-70-5 | 2,820 | ₹5.25 · 2,820 in stock | View |
