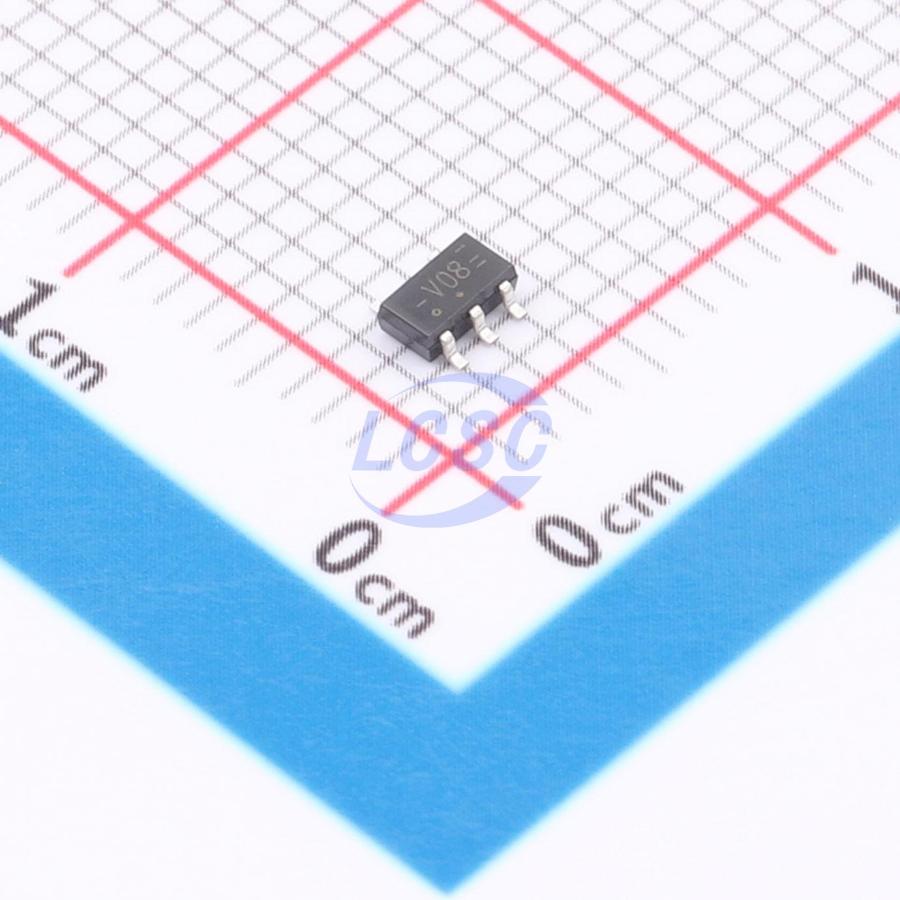

74LVC1G08GV-Q100,1

Schmitt trigger 1.65V~5.5V 5.5ns@5.5V,50pF 4uA SC-74A Gates and Inverters RoHS

SC-74AROHS3 CompliantActive

Single 2-input AND gate

Manufacturer: Nexperia
Manufacturer part #: 74LVC1G08GV-Q100,1
Store part #: C6708307
Package / case: SC-74A
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,330 in stock

#C6708307

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹14.59	₹72.95
50+	₹11.46	₹573.00
150+	₹9.90	₹1,485.00
500+	₹8.72	₹4,360.00
3,000+	₹7.78	₹23,340.00
6,000+	₹7.32	₹43,920.00

Quantity (min 5, multiples of 5)

5 × ₹14.59

₹72.95

excl. GST

₹86.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G08GV-Q100,1

₹72.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 450mV;800mV
Propagation Delay: 5.5ns@5.5V,50pF
Features: Local shutdown mode;Overvoltage-tolerant input
Input Logic Level - Low: 700mV~800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V~2V
Output Logic Level - High: 2V;3.4V
Quiescent Current(Iq): 4uA
Number of Channels: 1;2
Current - Output High(IOH): 24mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.195 g

Overview

The 74LVC1G08-Q100 is a single 2-input AND gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications. Schmitt trigger action at all inputs makes the circuit tolerant of slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The l(OFF) circuitry disables the output, preventing the damaging backflow current through the device when it is powered down. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.

Key features

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Wide supply voltage range from 1.65 V to 5.5 V
High noise immunity
±24 mA output drive (V(CC)=3.0 V)
CMOS low power dissipation
Direct interface with TTL levels
Overvoltage tolerant inputs to 5.5 V
IOFF circuitry provides partial Power-down mode operation
Latch-up performance ≤250 mA
Complies with JEDEC standard: JESD8-7 (1.65 V to 1.95 V) JESD8-5 (2.3 V to 2.7 V) JESD8C (2.7 V to 3.6 V) JESD36 (4.5 V to 5.5 V)
ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
