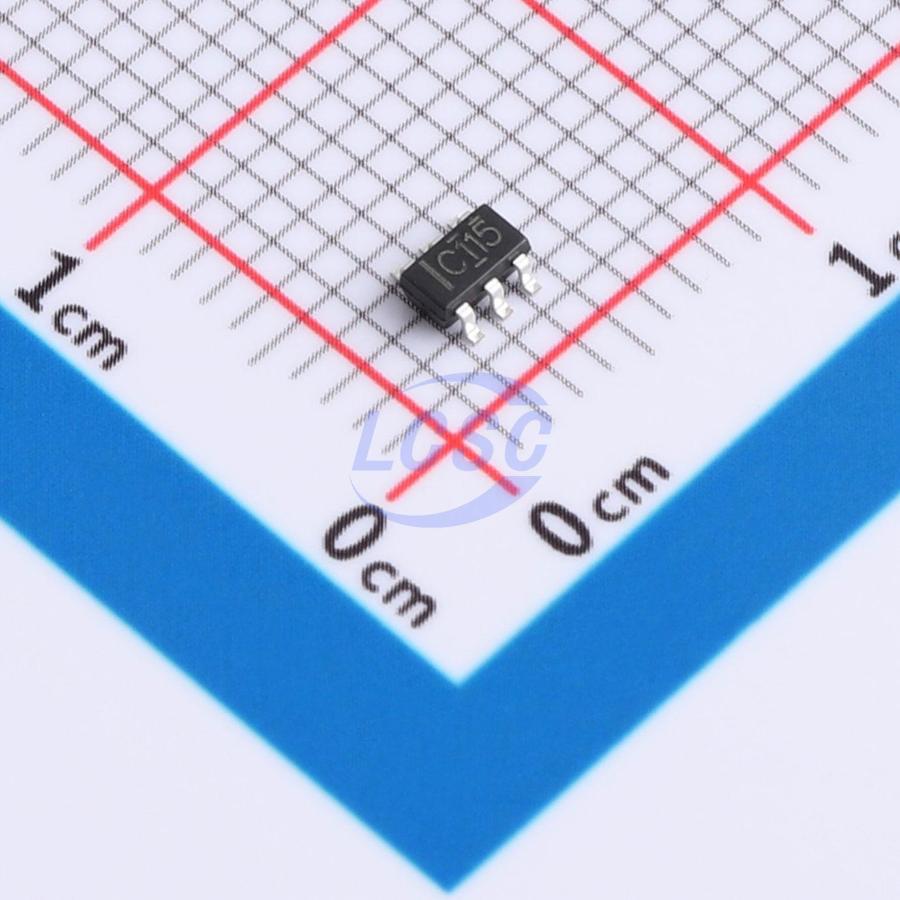

74LVC1G11GV-MS
1.65V~5.5V 3.5ns@5V,50pF 10uA SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- 74LVC1G11GV-MS
- Store part #
- C52988863
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C52988863
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.78 | ₹97.80 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.79 | ₹2,037.00 |
| 3,000+ | ₹6.05 | ₹18,150.00 |
| 6,000+ | ₹5.45 | ₹32,700.00 |
| 9,000+ | ₹5.15 | ₹46,350.00 |
10 × ₹9.78
₹97.80
excl. GST
₹115.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G11GV-MS
₹97.80 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 3.5ns@5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Operating Temperature
- -40℃~+125℃
- Features
- Live insertion protection;Local shutdown mode;Rear drive protection
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
This single 3-input positive NAND gate is designed for VCC operating voltages from 1.65V to 5.5V. The 74LVC1G11Gx-MS device performs the Boolean function Y = A·B·C (overline) or Y = Ā + B̄ + C̄ under positive logic. The device is fully suitable for partial power-down applications using Ioff. The Ioff circuit disables the outputs, preventing destructive backflow current when the device is powered down.
Applications
- Audio/video receivers
- Digital photo frames
- Digital radios
- Digital still cameras
- Digital video cameras
Key features
- 5V VCC operation supported
- Inputs accept voltages up to 5.5V
- Down-translation to VCC supported
- Low power consumption, maximum Icc of 10μA
- ±24mA output drive capability at 3.3V
- Ioff supports hot-plug, partial power-down mode, and back-drive protection
