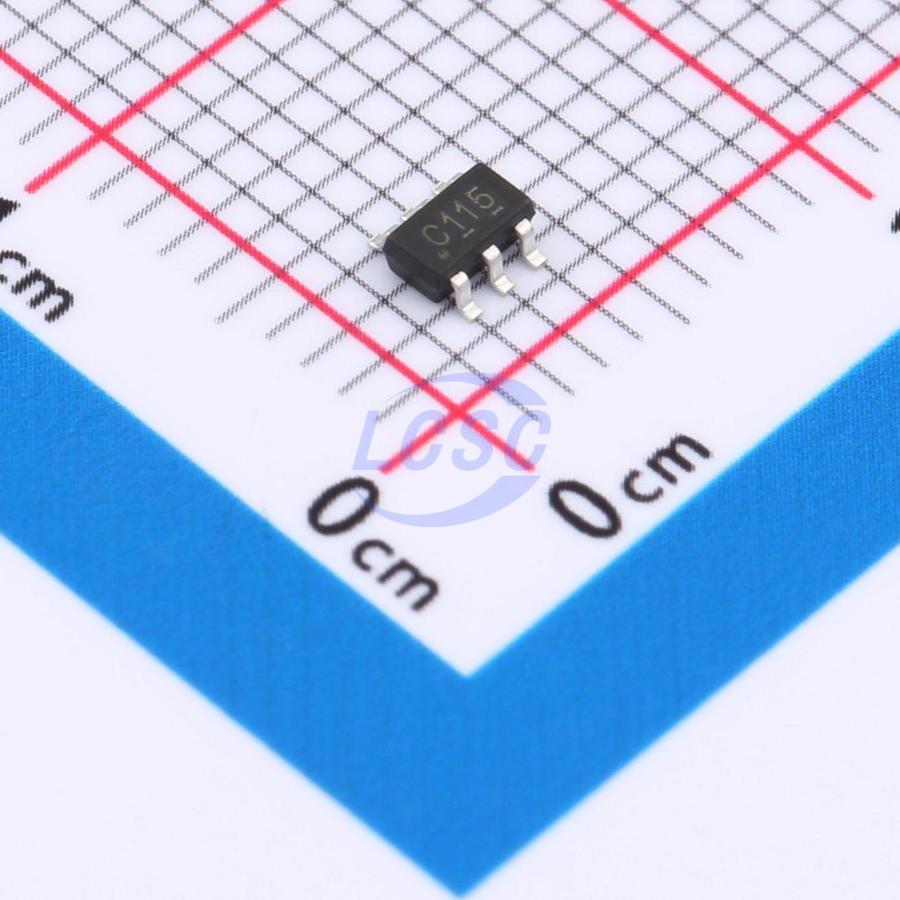

MSN74LVC1G11DBVR

1.65V~5.5V 3.1ns@5V,15pF 10uA SOT-23-6 Gates and Inverters

SOT-23-6RoHSActive

Single 3-input Positive-NAND OR Gate

Manufacturer: MSKSEMI
Manufacturer part #: MSN74LVC1G11DBVR
Store part #: C42403091
Package / case: SOT-23-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,560 in stock

#C42403091

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.22	₹72.20
100+	₹5.72	₹572.00
300+	₹4.96	₹1,488.00
3,000+	₹4.39	₹13,170.00
6,000+	₹3.94	₹23,640.00
9,000+	₹3.70	₹33,300.00

Quantity (min 10, multiples of 10)

10 × ₹7.22

₹72.20

excl. GST

₹85.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MSN74LVC1G11DBVR

₹72.20 for 10 + GST

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 3.1ns@5V,15pF
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Features: Live insertion protection;Local shutdown mode;Rear drive protection
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1;3
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.044 g

Overview

This single 3-input positive-NAND OR gate is designed for 1.65-V to 5.5-V VCC operation. The device performs the Boolean function Y = A·B·C(overline) or Y = A(overline) + B(overline) + C(overline) in positive logic. This device is fully specified for partial-power-down applications using loff. The loff circuitry disables the outputs, prevents damaging current backflow through the device when it is powered down.

Applications

AV receivers
DLP front projection system
Digital picture frames
Digital radio
Digital still cameras
Digital video cameras (DVC)
GPS: personal navigation devices
Handset: smartphones
Notebook PC and netbooks
Network-attached storage (NAS)
Power line communication modems
Server PSU
STB, DVR, and streaming media

Key features

Supports 5V Vcc operation
Inputs accept voltages to 5.5V
Provides down translation to Vcc
Low power consumption, 10-μA Max Icc
±24-mA output drive at 3.3V
loff supports live insertion, partial-power-down mode, and back drive protection
