JSMSEMIDatasheet (PDF)

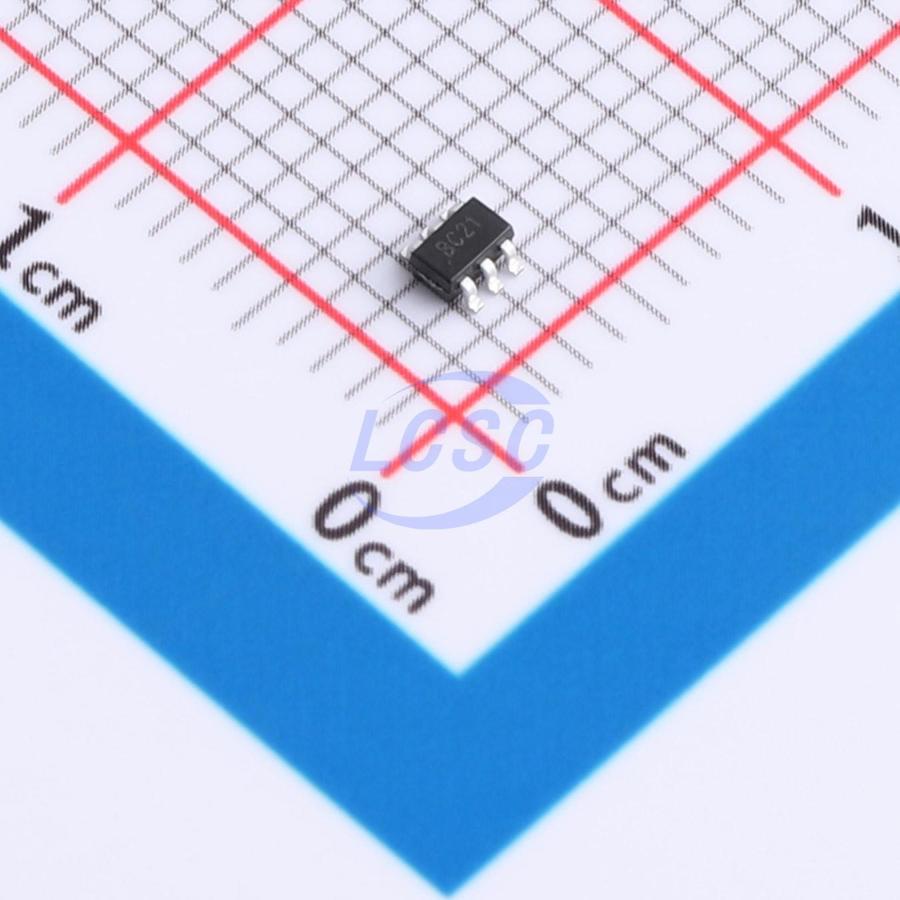

74LVC1G11GW,125-JSM
4uA 1.65V~5.5V 13.5ns@4.5V,50pF SOT-363 Gates and Inverters RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G11GW,125-JSM
- Store part #
- C53114365
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C53114365
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.33 | ₹73.30 |
| 100+ | ₹5.85 | ₹585.00 |
| 300+ | ₹5.09 | ₹1,527.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.09 | ₹24,540.00 |
| 9,000+ | ₹3.86 | ₹34,740.00 |
10 × ₹7.33
₹73.30
excl. GST
₹86.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G11GW,125-JSM
₹73.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Features
- Overvoltage-tolerant input;Rear drive protection
- Output Logic Level - High
- 1.54V;2.15V;2.5V;2.62V;4.11V
- Quiescent Current(Iq)
- 4uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 13.5ns@4.5V,50pF
- Output Logic Level - Low
- 70mV;120mV;170mV;330mV;390mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
The 74LVC1G11 provides a single 3-input AND gate. Its inputs can be driven by 3.3V or 5V devices, allowing the device to be used in mixed 3.3V and 5V environments.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- 5V-tolerant inputs for easy interface with 5V logic
- Output drive capability ±24mA (at VCC = 3.0V)
- CMOS low power consumption
- Operating temperature range: -40℃ to +125℃
- Package: SOT-23-6 / SOT-363
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G11GW-JSM#C50376598JSMSEMI · SOT-363 | JSMSEMI | SOT-363 | 2,040 | ₹7.82 · 2,040 in stock | View |
