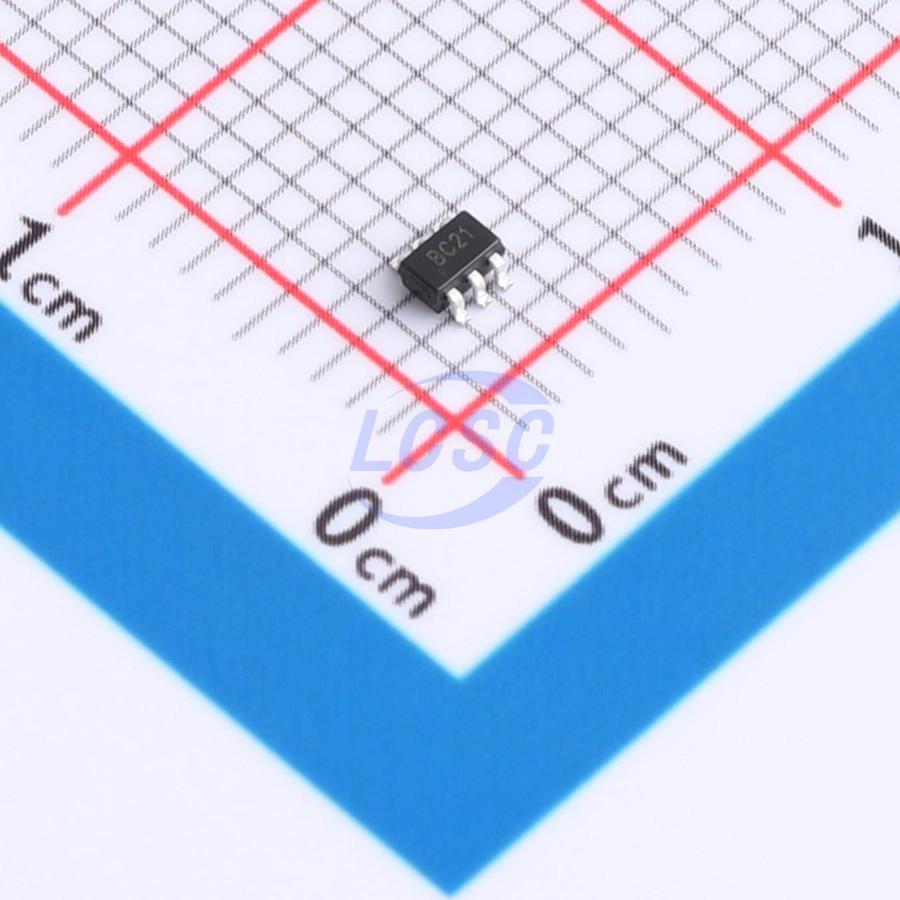

74LVC1G11GW-JSM
1.65V~5.5V 14ns@1.65V,30pF SOT-363 Gates and Inverters RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G11GW-JSM
- Store part #
- C50376598
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C50376598
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.82 | ₹78.20 |
| 100+ | ₹6.23 | ₹623.00 |
| 300+ | ₹5.44 | ₹1,632.00 |
| 3,000+ | ₹4.84 | ₹14,520.00 |
| 6,000+ | ₹4.37 | ₹26,220.00 |
| 9,000+ | ₹4.13 | ₹37,170.00 |
10 × ₹7.82
₹78.20
excl. GST
₹92.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G11GW-JSM
₹78.20 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 14ns@1.65V,30pF
- Output Logic Level - Low
- 300mV;400mV;450mV;550mV
- Operating Temperature
- -40℃~+125℃
- Features
- Overvoltage-tolerant input
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
74LVC1G11 is a single 3-input AND gate. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used in mixed 3.3V and 5V environments.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- 5V-tolerant inputs for easy interface with 5V logic
- Output drive capability: ±24mA (VCC = 3.0V)
- CMOS low power consumption
- Operating temperature range: -40°C to +125°C
- Package: SOT-23-6/SOT-363
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G11GW,125-JSM#C53114365JSMSEMI · SOT-363 | JSMSEMI | SOT-363 | 2,850 | ₹7.33 · 2,850 in stock | View |
