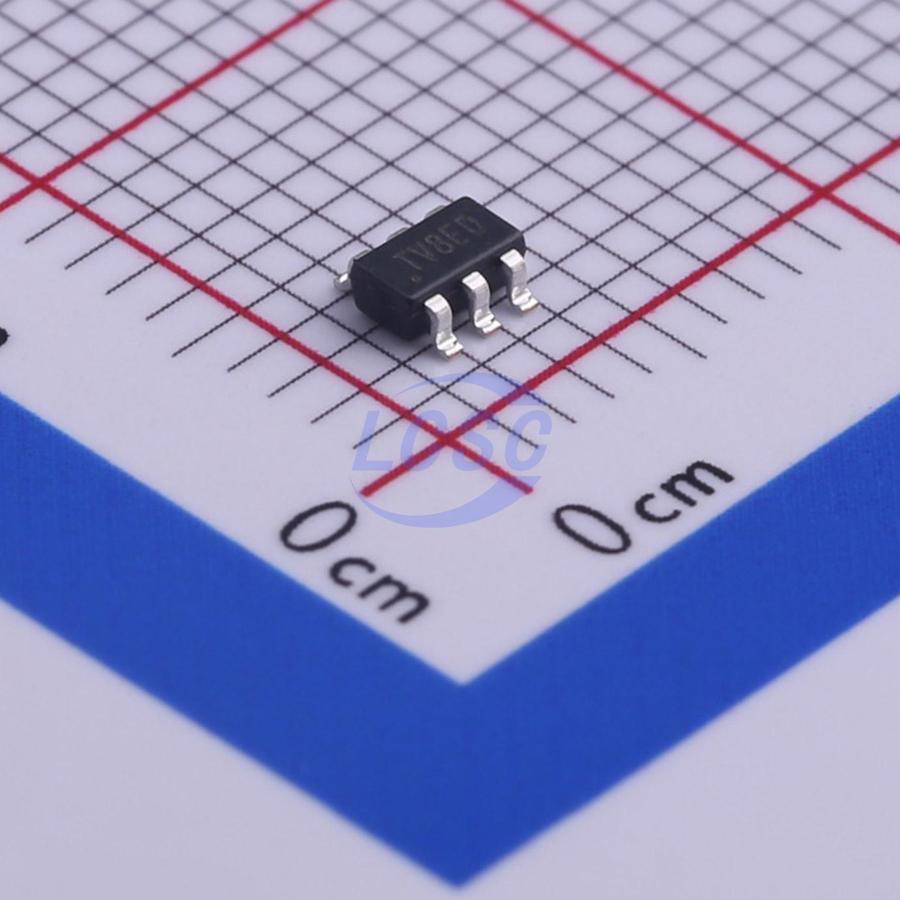

DIODES

74LVC1G11W6-7

1.65V~5.5V 3.5ns@5V,50pF 40uA SOT-26 Gates and Inverters RoHS

SOT-26ROHS3 CompliantActive

SINGLE 3 INPUT POSITIVE AND GATE

Manufacturer: DIODES
Manufacturer part #: 74LVC1G11W6-7
Store part #: C460526
Package / case: SOT-26
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,305 in stock

#C460526

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
5+	₹19.50	₹97.50
50+	₹15.37	₹768.50
150+	₹13.31	₹1,996.50
500+	₹11.76	₹5,880.00
3,000+	₹10.53	₹31,590.00
6,000+	₹9.91	₹59,460.00

Quantity (min 5, multiples of 5)

5 × ₹19.50

₹97.50

excl. GST

₹115.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G11W6-7

₹97.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 3.5ns@5V,50pF
Features: Local shutdown mode;Overvoltage-tolerant input
Input Logic Level - High: 1.7V~2V
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 40uA
Number of Channels: 1;3
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.024 g

Overview

The 74LVC1G11 is a single 3-input positive AND gate with a standard push-pull output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = A • B • C or Y = NOT(NOT(A) + NOT(B) + NOT(C))

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
Wide array of products such as:
PCs, networking, notebooks, Netbooks, PDAs
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box
Cell Phones, Personal Navigation / GPS
MP3 players, Cameras, Video Recorders

Key features

Wide Supply Voltage Range from 1.65V to 5.5V
±24mA Output Drive at 3.3V
CMOS Low Power Consumption
IOFF Supports Partial-Power-Down Mode Operation
Inputs Accept up to 5.5V
ESD Protection Exceeds JESD 22:
200-V Machine Model (A115-A)
2000-V Human Body Model (A114-A)
Latch-Up Exceeds 100mA per JESD 78, Class I
Range of Package Options
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SN74LVC1G11DB(LX)#C22469916lingxingic · SOT-23-6	lingxingic	SOT-23-6	2,990	₹7.90 · 2,990 in stock	View
SN74LVC1G11DBVR#C22046TI · SOT-23-6	TI	SOT-23-6	12,420	₹29.28 · 12,420 in stock	View
TP74LVC1G11S6#C51939625TECH PUBLIC · SOT-23-6	TECH PUBLIC	SOT-23-6	2,550	₹6.52 · 2,550 in stock	View
AiP74LVC1G11GB236.TR#C19191278Wuxi I-core Elec · SOT-23-6	Wuxi I-core Elec	SOT-23-6	930	₹7.69 · 930 in stock	View
74LVC1G11GV,125-JSM#C53114319JSMSEMI · SOT-23-6	JSMSEMI	SOT-23-6	14,755	₹16.46 · 14,755 in stock	View
