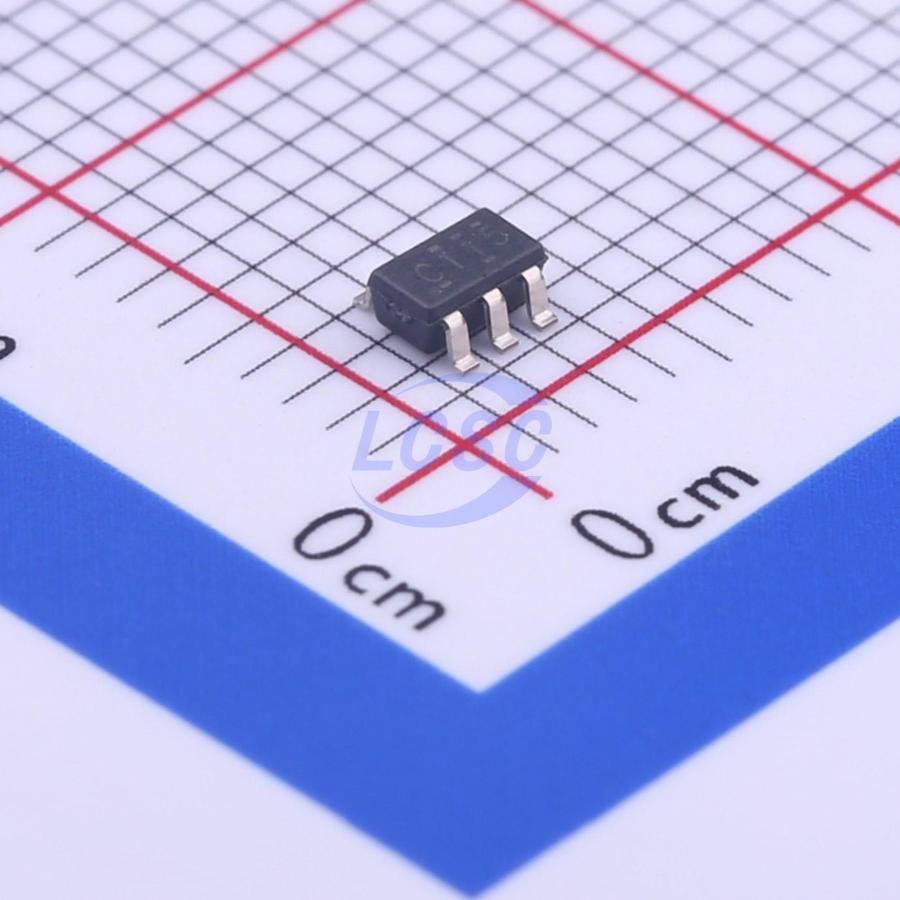

SN74LVC1G11DBVR
1.65V~5.5V 3.5ns@5V,50pF 10uA SOT-23-6 Gates and Inverters RoHS
SOT-23-6ROHS3 CompliantActive
Single 3-Input Positive-AND Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G11DBVR
- Store part #
- C22046
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,965 in stock
#C22046
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.34 | ₹121.70 |
| 50+ | ₹19.68 | ₹984.00 |
| 150+ | ₹17.69 | ₹2,653.50 |
| 500+ | ₹15.19 | ₹7,595.00 |
| 3,000+ | ₹13.17 | ₹39,510.00 |
| 6,000+ | ₹12.50 | ₹75,000.00 |
5 × ₹24.34
₹121.70
excl. GST
₹143.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G11DBVR
₹121.70 for 5 + GST
Specifications
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 450mV;300mV;550mV
- Propagation Delay
- 3.5ns@5V,50pF
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV~800mV
- Input Logic Level - High
- 1.7V~2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.063 g
Overview
The SN74LVC1G11 performs the Boolean function Y = A • B • C or Y = A (overline) + B (overline) + C (overline) in positive logic. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Key features
- Available in the Texas Instruments NanoFree™ Package
- Supports 5-V Vcc Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 4.1 ns at 3.3 V
- Low Power Consumption, 10 - μA Max ICC
- ±24 mA Output Drive at 3.3 V
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP74LVC1G11GB236.TR#C19191278Wuxi I-core Elec · SOT-23-6 | Wuxi I-core Elec | SOT-23-6 | 940 | ₹6.39 · 940 in stock | View |
 | SN74LVC1G11DB(LX)#C22469916lingxingic · SOT-23-6 | lingxingic | SOT-23-6 | 2,990 | ₹6.57 · 2,990 in stock | View |
 | TP74LVC1G11S6#C51939625TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,550 | ₹5.42 · 2,550 in stock | View |
 | U74LVC1G11G-AG6-R#C53152857UTC · SOT-26 | UTC | SOT-26 | 465 | ₹10.54 · 465 in stock | View |
 | 74LVC1G11W6-7#C460526DIODES · SOT-26 | DIODES | SOT-26 | 4,905 | ₹16.21 · 4,905 in stock | View |
