74LVC1G126GM,132
Schmitt trigger 1.65V~5.5V 1 1 2ns@3.3V,50pF XSON-6(1x1.5) Buffers, Drivers, Receivers, Transceivers RoHS
XSON-6(1x1.5)ROHS3 CompliantActive

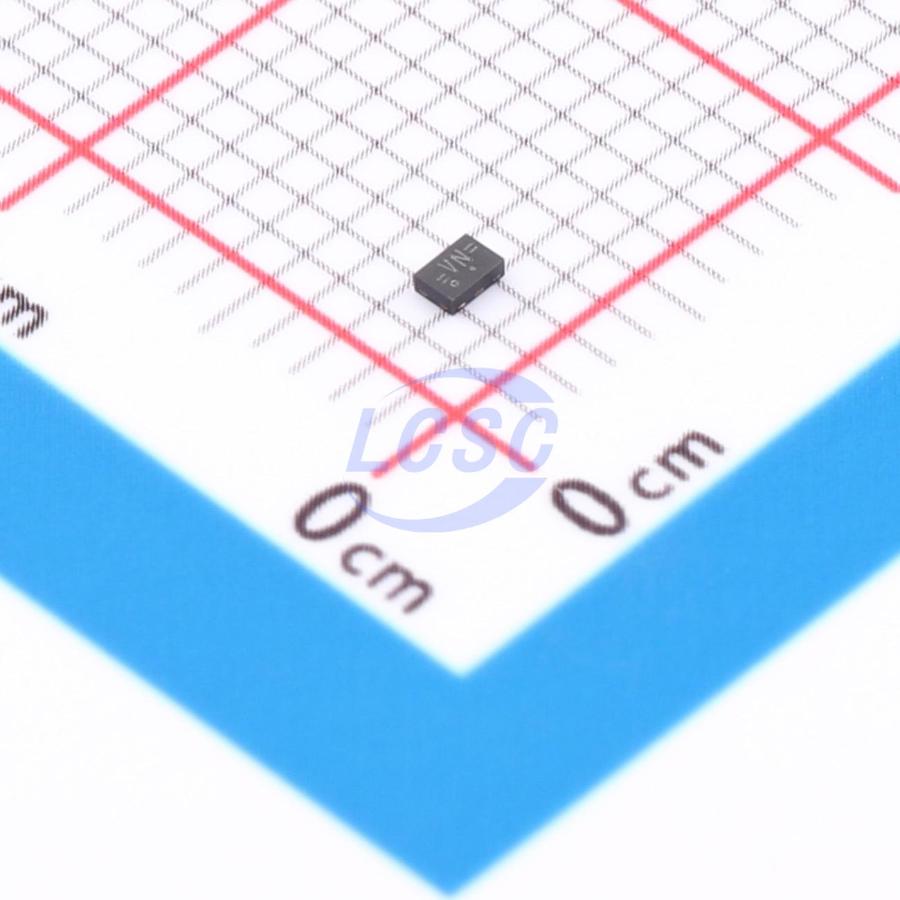

74LVC1G126 Single Buffer/Line Driver: 3-State Output, Wide Voltage Range, and High Noise Immunity
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC1G126GM,132
- Store part #
- C548260
- Package / case
- XSON-6(1x1.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,860 in stock
#C548260
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.39 | ₹66.95 |
| 50+ | ₹11.74 | ₹587.00 |
| 150+ | ₹10.90 | ₹1,635.00 |
| 500+ | ₹10.28 | ₹5,140.00 |
| 2,500+ | ₹9.79 | ₹24,475.00 |
| 5,000+ | ₹9.54 | ₹47,700.00 |
5 × ₹13.39
₹66.95
excl. GST
₹79.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
74LVC1G126GM,132
₹66.95 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Level shifting;Output enable
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.015 g
Overview
The 74LVC1G126 is a single buffer/line driver with 3-state output. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range from 1.65 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- IOFF circuitry provides partial Power-down mode operation
- ±24 mA output drive (VCC = 3.0 V)
- Latch-up performance exceeds 250 mA
- Direct interface with TTL levels
- Complies with JEDEC standard: JESD8 - 7 (1.65 V to 1.95 V), JESD8 - 5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS - 001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS - 002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G125GM,115#C548250Nexperia · XSON-6(1x1.5) | Nexperia | XSON-6(1x1.5) | 8,755 | ₹15.57 · 8,755 in stock | View |
 | 74LVC1G125GM,132#C548251Nexperia · XSON-6(1x1.5) | Nexperia | XSON-6(1x1.5) | 200 | ₹20.37 · 200 in stock | View |
 | 74LVC1G125GM-Q100X#C548252Nexperia · XSON-6(1x1.5) | Nexperia | XSON-6(1x1.5) | 100 | ₹25.28 · 100 in stock | View |
 | EM74LVC1G126GM#C49188134EnergyMath · DFN-6(1x1.5) | EnergyMath | DFN-6(1x1.5) | 3,000 | ₹14.57 · 3,000 in stock | View |
 | 1P1G126QDRYRQ1#C2682049TI · SON-6(1x1.5) | TI | SON-6(1x1.5) | 1 | ₹29.95 · 1 in stock | View |
