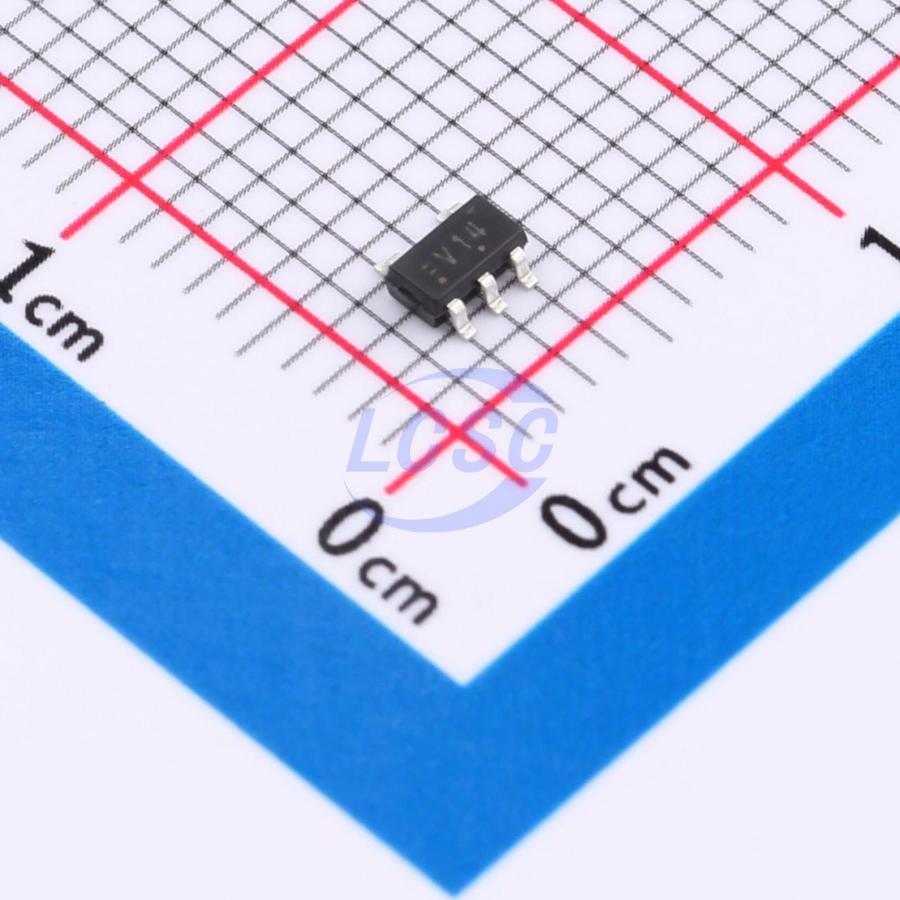

74LVC1G14GV
SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
Single Schmitt-trigger Inverter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G14GV
- Store part #
- C19829592
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,260 in stock
#C19829592
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.53 | ₹75.30 |
| 100+ | ₹5.97 | ₹597.00 |
| 300+ | ₹5.19 | ₹1,557.00 |
| 3,000+ | ₹4.60 | ₹13,800.00 |
| 6,000+ | ₹4.14 | ₹24,840.00 |
| 9,000+ | ₹3.90 | ₹35,100.00 |
10 × ₹7.53
₹75.30
excl. GST
₹88.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G14GV
₹75.30 for 10 + GST
Specifications
- Features
- Power shutdown protection;Noise suppression function;Power-off protection function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The 74LVC1G14 is a single Schmitt-trigger inverter, it provides the function Y(overline)= A. The device have different input threshold levels for positivegoing VT+ and negative-going VT- signals because of the Schmitt-trigger action in the input.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation/GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 1.65V ~ 5.5V
- Low power current: Icc = 10μA(Max)
- ±24mA output drive Vcc= 3.0V
- Power down protection
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G14S5#C42460135TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,910 | ₹7.55 · 2,910 in stock | View |
 | TP74LVC2G14S6#C42460205TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,735 | ₹12.52 · 1,735 in stock | View |
