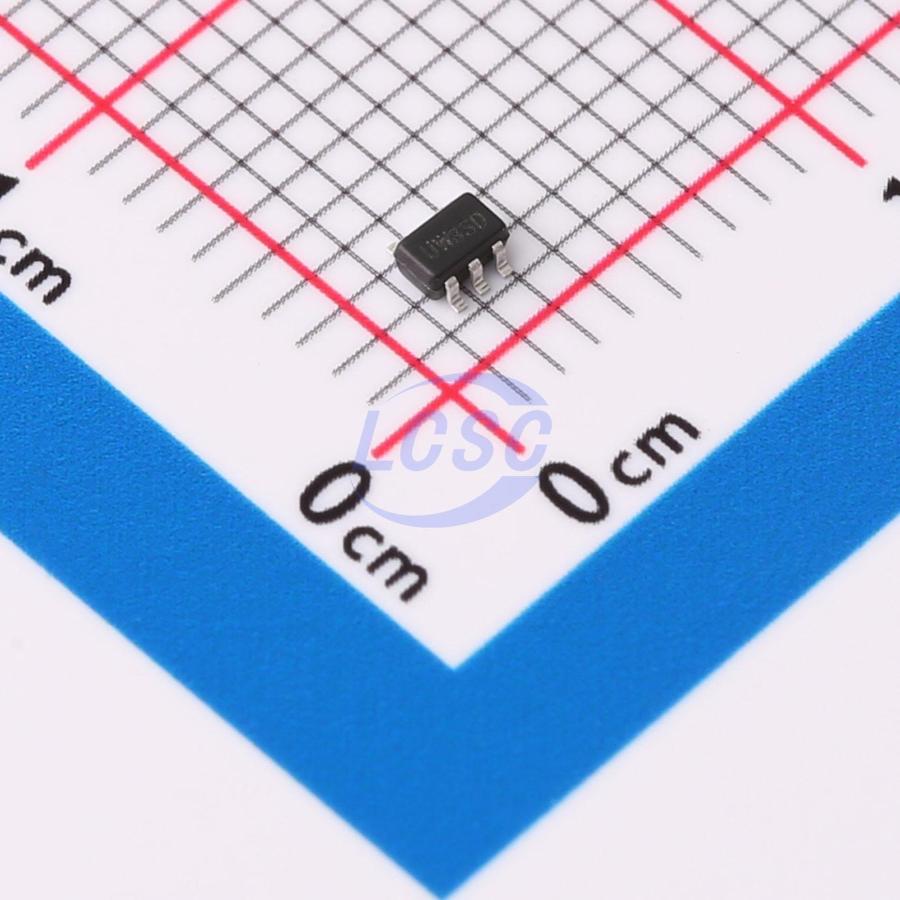

74LVC1G32SE-7

1.65V~5.5V 1.7ns@5V,50pF 200uA SOT-353 Gates and Inverters RoHS

SOT-353ROHS3 CompliantActive

SINGLE 2-INPUT POSITIVE OR GATE

Manufacturer: DIODES
Manufacturer part #: 74LVC1G32SE-7
Store part #: C460530
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,640 in stock

#C460530

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹19.14	₹95.70
50+	₹15.32	₹766.00
150+	₹13.40	₹2,010.00
500+	₹11.97	₹5,985.00
3,000+	₹10.82	₹32,460.00
6,000+	₹10.24	₹61,440.00

Quantity (min 5, multiples of 5)

5 × ₹19.14

₹95.70

excl. GST

₹112.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G32SE-7

₹95.70 for 5 + GST

Specifications

output type: Push-pull
Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Propagation Delay: 1.7ns@5V,50pF
Features: Local shutdown mode;Overvoltage-tolerant input
Input Logic Level - Low: 700mV~800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V~2V
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Quiescent Current(Iq): 200uA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

The 74LVC1G32 is a single 2-input positive OR gate with a standard push-pull output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed-voltage environment. The device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = A + B or Y = MR(overline)

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
Wide Array of Products Such as:
PCs, Networking, Notebooks, Netbooks, PDAs
Tablet Computers, E-readers
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set-Top Box
Cell Phones, Personal Navigation / GPS
MP3 Players, Cameras, Video Recorders

Key features

Wide Supply Voltage Range from 1.65 to 5.5V
±24 mA Output Drive at 3.3V
CMOS Low Power Consumption
IOFF Supports Partial-Power-Down Mode Operation
Inputs Accept Up to 5.5V
ESD Protection Tested per JESD 22
Exceeds 200V Machine Model (A115)
Exceeds 2000V Human Body Model (A114)
Exceeds 1000V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Range of Package Options
Direct Interface with TTL Levels
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
