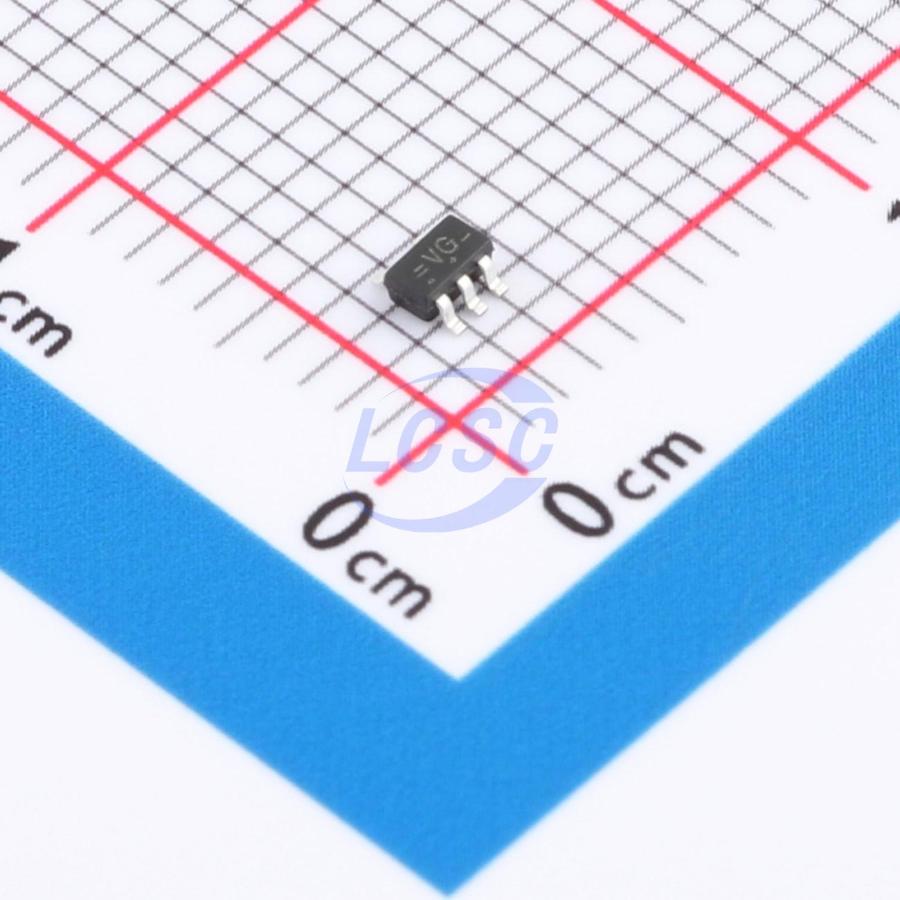

74LVC1G32SE-TP
10uA 1.6V~5.5V 6ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G32SE-TP
- Store part #
- C52098131
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,680 in stock
#C52098131
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G32SE-TP
₹58.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Features
- Local shutdown mode
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.6V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Propagation Delay
- 6ns@5V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
74LVC1G32 is a single 2-input OR gate that implements the function Y = A + B in positive logic. The device features a power-off protection circuit to prevent damage during power-down conditions.
Key features
- Operating voltage range: 1.6V ~ 5.5V
- Low quiescent current: I_CC = 10μA (maximum)
- Output drive capability: ±24mA (at VCC = 3.0V)
- Power-off protection
- ESD protection exceeds JESD 22 standard: - 2000V Human Body Model - 1000V Charged Device Model
- Available in SOT23-5 package
- Available in SOT353 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NC7SZ32P5X-TP#C19829608TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 5,480 | ₹7.32 · 5,480 in stock | View |
 | SN74LVC1G32DCKR-TP#C19829632TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | On request | ₹4.83 · 0 in stock | View |
 | NL17SZ32DFT2G-TP#C42460264TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,610 | ₹6.51 · 2,610 in stock | View |
 | 74LVC1G32GW#C19829655TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,880 | ₹7.28 · 1,880 in stock | View |
 | TC7SZ32FU-TP#C54195046TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,470 | ₹6.34 · 2,470 in stock | View |
