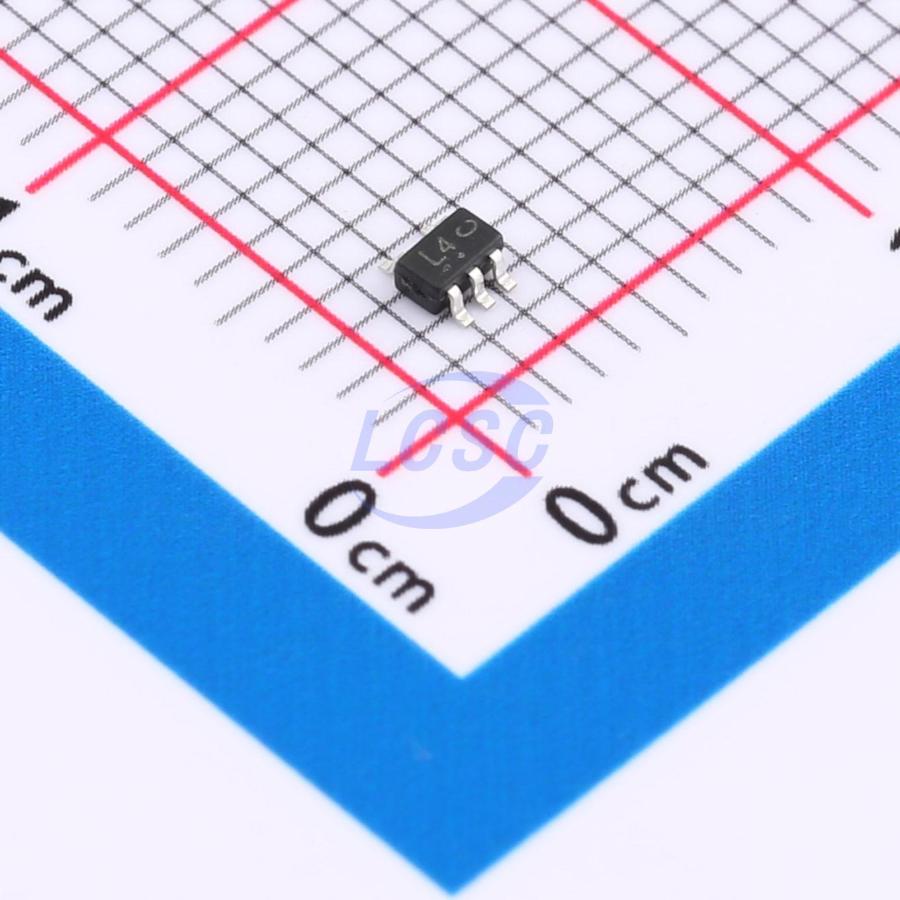

NL17SZ32DFT2G-TP
10uA 1.65V~5.5V 8ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
SINGLE 2-INPUT POSITIVE-OR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NL17SZ32DFT2G-TP
- Store part #
- C42460264
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C42460264
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.51 | ₹65.10 |
| 100+ | ₹5.12 | ₹512.00 |
| 300+ | ₹4.45 | ₹1,335.00 |
| 1,000+ | ₹3.92 | ₹3,920.00 |
| 5,000+ | ₹3.51 | ₹17,550.00 |
| 10,000+ | ₹3.31 | ₹33,100.00 |
10 × ₹6.51
₹65.10
excl. GST
₹76.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SZ32DFT2G-TP
₹65.10 for 10 + GST
Specifications
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 8ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The NL17SZ32DFT2G-TP is a single 2-input OR gate which provides the Function Y = A + B in positive logic circuit. This device has power-down protective circuit
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 1.65V to 5.5V
- Low Power Current: Icc = 10μA (Max.)
- ±24mA Output Drive (VCC = 3.0V)
- Power Down Protection
- ESD Protection Exceeds JESD 22 -2000-V Human-Body Model (A114-A)
- -200-V Machine Model (A115-A)
- -1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC7SZ32FU-TP#C54195046TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,470 | ₹6.34 · 2,470 in stock | View |
 | 74LVC1G32GW#C19829655TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,880 | ₹7.28 · 1,880 in stock | View |
 | NC7SZ32P5X-TP#C19829608TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 5,480 | ₹7.32 · 5,480 in stock | View |
 | SN74LVC1G32DCKR-TP#C19829632TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 40 | ₹4.83 · 40 in stock | View |
 | 74LVC1G32SE-TP#C52098131TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,680 | ₹5.85 · 2,680 in stock | View |
