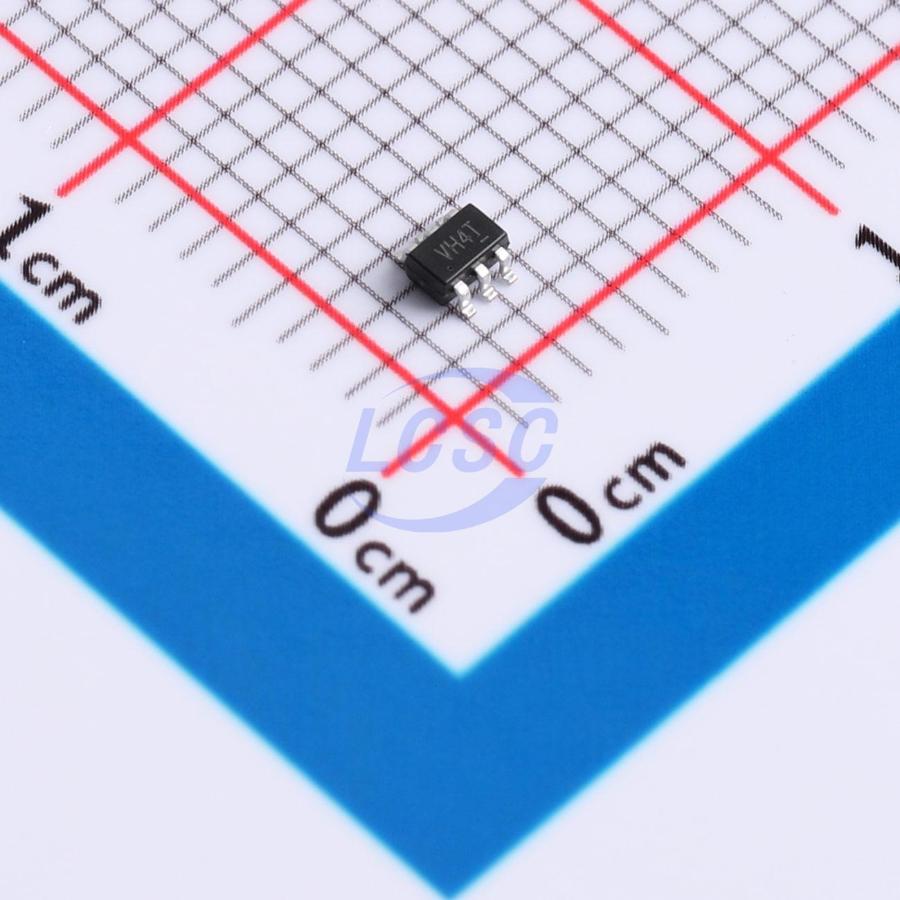

74LVC1G57GW
Schmitt trigger 1.65V~5.5V 5ns@4.5V,15pF 100nA SOT-363 Gates and Inverters
SOT-363RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC1G57GW
- Store part #
- C52953356
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,655 in stock
#C52953356
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.61 | ₹73.05 |
| 50+ | ₹11.51 | ₹575.50 |
| 150+ | ₹9.98 | ₹1,497.00 |
| 500+ | ₹8.81 | ₹4,405.00 |
| 3,000+ | ₹7.89 | ₹23,670.00 |
| 6,000+ | ₹7.42 | ₹44,520.00 |
5 × ₹14.61
₹73.05
excl. GST
₹86.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G57GW
₹73.05 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 5ns@4.5V,15pF
- Output Logic Level - Low
- 100mV
- Operating Temperature
- -40℃~+125℃
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Quiescent Current(Iq)
- 100nA
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.073 g
Overview
The 74LVC1G57 is a configurable multiple-function gate with Schmitt-trigger inputs. The device can be configured for any of the following logic functions via 3-bit inputs: AND, OR, NAND, NOR, XNOR, inverter, and buffer. All inputs can be connected directly to VCC or GND. Inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as level translators in mixed 3.3V and 5V environments. The device is fully specified for partial-power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially damaging backflow current when the device is powered down.
Key features
- Wide supply voltage range: 1.65 V ~ 5.5 V
- Input overvoltage tolerance up to 5.5 V
- High noise immunity
- ±24 mA output drive capability (VCC = 3.0 V)
- CMOS low power consumption
- Latch-up performance exceeds 200 mA
- Direct TTL-level interface compatible
- IOFF circuit for partial power-down mode operation
- Compliant with JEDEC standards: JESD8-7 (1.65 V ~ 1.95 V), JESD8-5 (2.3 V ~ 2.7 V), JESD8B/JESD36 (2.7 V ~ 3.6 V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
