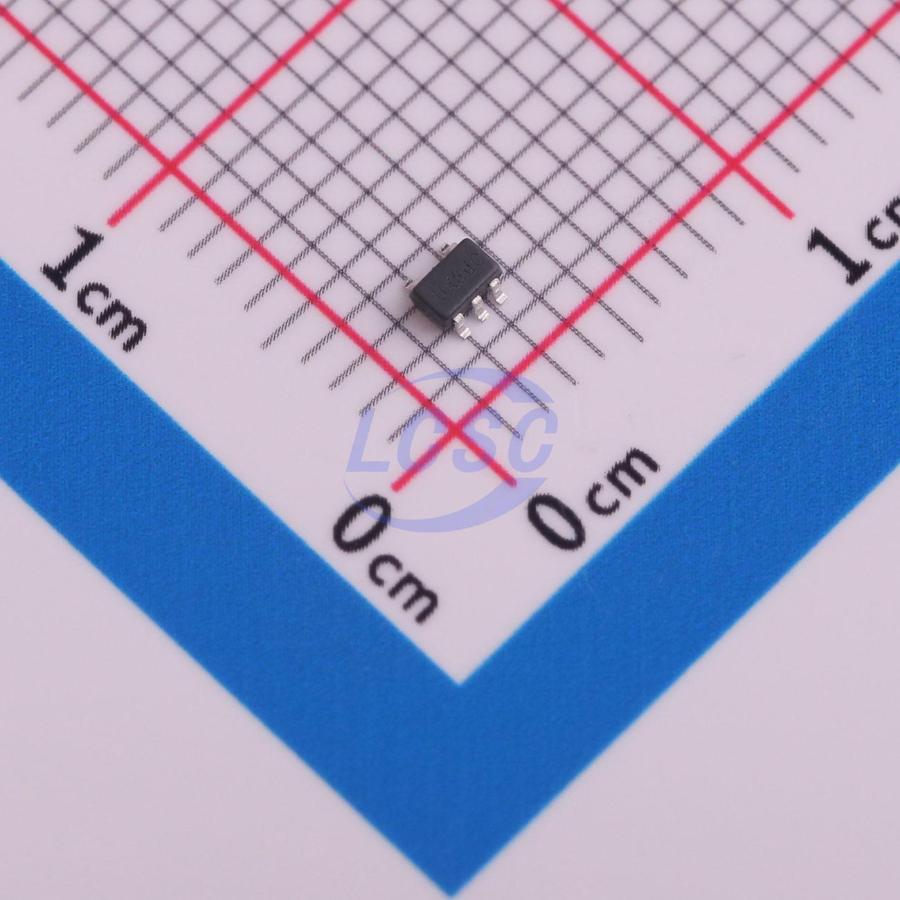

DIODES

74LVC1G86SE-7

1.65V~5.5V 4ns@5V,50pF 100nA SOT-353 Gates and Inverters RoHS

SOT-353ROHS3 CompliantActive

SINGLE 2-INPUT EXCLUSIVE OR GATE

Manufacturer: DIODES
Manufacturer part #: 74LVC1G86SE-7
Store part #: C842497
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,185 in stock

#C842497

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹14.26	₹71.30
50+	₹11.19	₹559.50
150+	₹9.66	₹1,449.00
500+	₹8.51	₹4,255.00
3,000+	₹7.25	₹21,750.00
6,000+	₹6.79	₹40,740.00

Quantity (min 5, multiples of 5)

5 × ₹14.26

₹71.30

excl. GST

₹84.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G86SE-7

₹71.30 for 5 + GST

Specifications

output type: Push-pull
Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 4ns@5V,50pF
Features: Overvoltage-tolerant input;Local shutdown mode
Input Logic Level - Low: 700mV~800mV
Input Logic Level - High: 1.7V~2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 3.8V
Quiescent Current(Iq): 100nA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

The 74LVC1G86 is a single 2-input EXCLUSIVE OR gate with a standard push-pull output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = A ⊕ B or Y = A(overline)B + A B(overline)

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
Wide Array of Products Such as: PCs, Networking, Notebooks, Netbooks, PDAs, Tablet Computers, E-readers, Computer Peripherals, Hard Drives, CD/DVD ROM, TV, DVD, DVR, Set Top Box, Cell Phones, Personal Navigation / GPS, MP3 Players, Cameras, Video Recorders

Key features

Wide Supply Voltage Range from 1.65 to 5.5V
±24mA Output Drive at 3.3V
CMOS Low Power Consumption
IOFF Supports Partial-Power-Down Mode Operation
Inputs Accept Up to 5.5V
ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Range of Package Options
Direct Interface with TTL Levels
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SN74LVC1G86DCKT#C2861400TI · SC-70-5	TI	SC-70-5	10	₹30.23 · 10 in stock	View
SN74LVC1G86DC(LX)#C22469950lingxingic · SOT-353	lingxingic	SOT-353	2,030	₹5.27 · 2,030 in stock	View
TP74LVC1G86C5#C42460142TECH PUBLIC · SOT-353	TECH PUBLIC	SOT-353	2,960	₹7.44 · 2,960 in stock	View
74LVC1G86GW,125#C12513Nexperia · SOT-353	Nexperia	SOT-353	3,085	₹25.38 · 3,085 in stock	View
74LVC1G86GW#C52140425MDD(Microdiode Semiconductor) · SOT-353	MDD(Microdiode Semiconductor)	SOT-353	5,135	₹9.51 · 5,135 in stock	View
