Nexperia

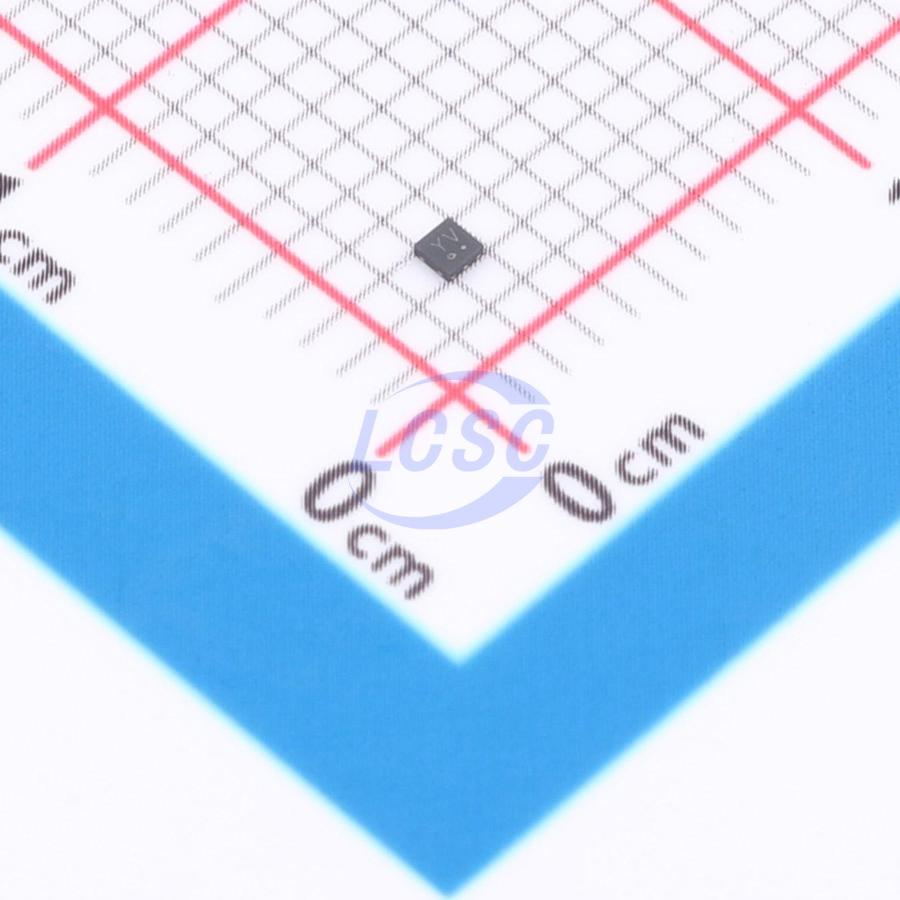

74LVC1G97GS,132

32mA 4uA 32mA 1.65V~5.5V 1 XSON-6(1x1) Gates and Inverters - Multi-Function, Configurable RoHS

XSON-6(1x1)ROHS3 CompliantActive

Low-power configurable multiple function gate

Manufacturer: Nexperia
Manufacturer part #: 74LVC1G97GS,132
Store part #: C548448
Package / case: XSON-6(1x1)
Category: Gates and Inverters - Multi-Function, Configurable
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,435 in stock

#C548448

Stock & price checked 25 h ago

Quantity	Unit price	Pack price
5+	₹14.37	₹71.85
50+	₹12.73	₹636.50
150+	₹11.91	₹1,786.50
500+	₹11.29	₹5,645.00
2,500+	₹10.80	₹27,000.00
5,000+	₹10.54	₹52,700.00

Quantity (min 5, multiples of 5)

5 × ₹14.37

₹71.85

excl. GST

₹84.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

74LVC1G97GS,132

₹71.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC Series
Input type: Schmitt trigger;TTL-compatible CMOS
Propagation Delay: 6.4ns@5.5V,50pF
Current - Output Low(IOL): 32mA
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 32mA
Voltage - Supply: 1.65V~5.5V
Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Number of Gates: 1

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.025 g

Overview

The 74LVC1G97 is a configurable multi-function gate circuit with Schmitt trigger inputs. This device can be configured to any of the following logic functions through a 3-bit input: MUX, AND gate, OR gate, NAND gate, NOR gate, inverter, and buffer. All inputs can be connected to VCC or GND. The inputs can be driven from 3.3 V or 5 V devices, allowing these devices to be used as level shifters in a mixed 3.3 V and 5 V environment. This device fully supports partial power-down applications using IOFF. The IOFF circuit disables the output to prevent damaging reverse current from flowing through the device when it is powered down.
