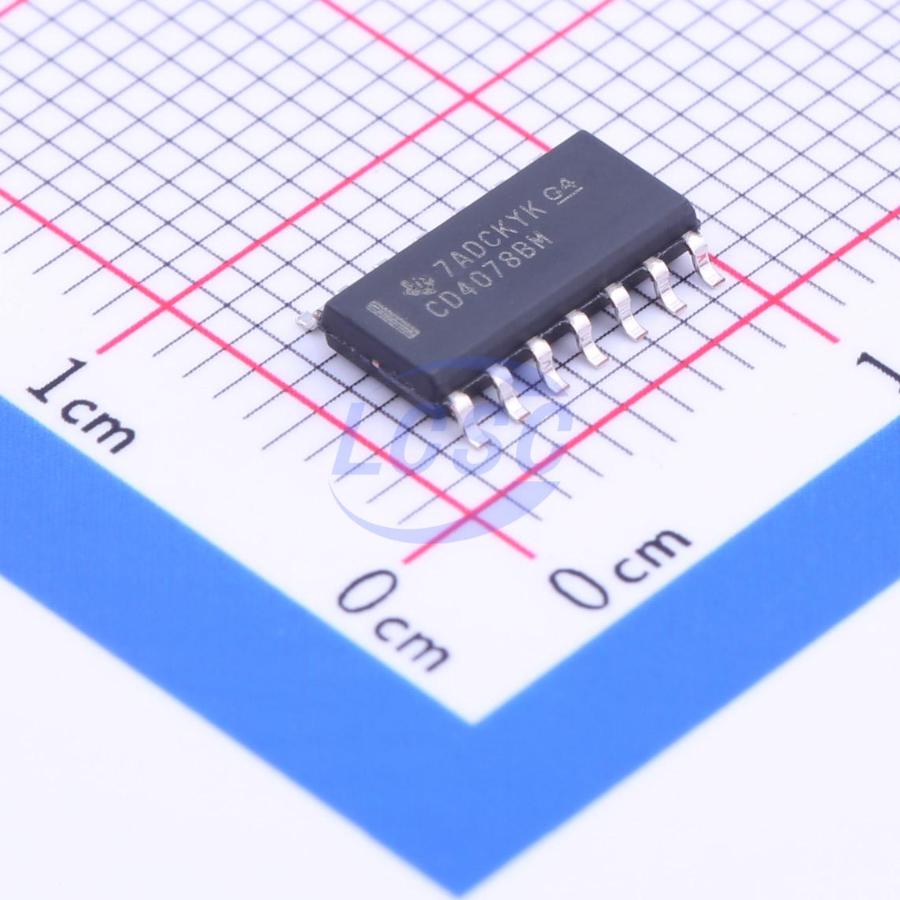

CD4078BM96

6.8mA 5uA 6.8mA 3V~18V 1 SOIC-14 Gates and Inverters - Multi-Function, Configurable RoHS

SOIC-14ROHS3 CompliantActive

CMOS 8-Input NOR/OR Gate

Manufacturer: TI
Manufacturer part #: CD4078BM96
Store part #: C84464
Package / case: SOIC-14
Category: Gates and Inverters - Multi-Function, Configurable
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,749 in stock

#C84464

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹42.46	₹42.46
10+	₹33.07	₹330.70
30+	₹28.91	₹867.30
100+	₹23.86	₹2,386.00
500+	₹20.06	₹10,030.00
1,000+	₹18.80	₹18,800.00

Quantity (min 1)

1 × ₹42.46

₹42.46

excl. GST

₹50.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD4078BM96

₹42.46 for 1 + GST

Specifications

Input Logic Level - Low: 1.5V;3V;4V
Input Logic Level - High: 3.5V;7V;11V
Logic Family: 4000B Series
Propagation Delay: 55ns@15V,50pF
Current - Output Low(IOL): 6.8mA
Output Logic Level - High: 4.95V;9.95V;14.95V
Quiescent Current(Iq): 5uA
Current - Output High(IOH): 6.8mA
Voltage - Supply: 3V~18V
Operating Temperature: -55℃~+125℃
Number of Gates: 1
Output Logic Level - Low: 50mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.264 g

Overview

CD4078B NOR/OR Gate provides the system designer with direct implementation of the positive-logic 8-input NOR and OR functions and supplements the existing family of CMOS gates.

Key features

Medium-Speed Operation: tPHL, tPLH = 75 ns (typ.) at VDD = 10 V
Buffered inputs and output
5-V, 10-V, and 15-V parametric ratings
Standardized symmetrical output characteristics, 100% tested for quiescent current at 20 V
Maximum input current of 1 μA at 18 V over full package-temperature range: 100 nA at 18 V and 25℃
Noise margin (over full package-temperature range): 1 V at VDD = 5 V, 2 V at VDD = 10 V, 2.5 V at VDD = 15 V
Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
