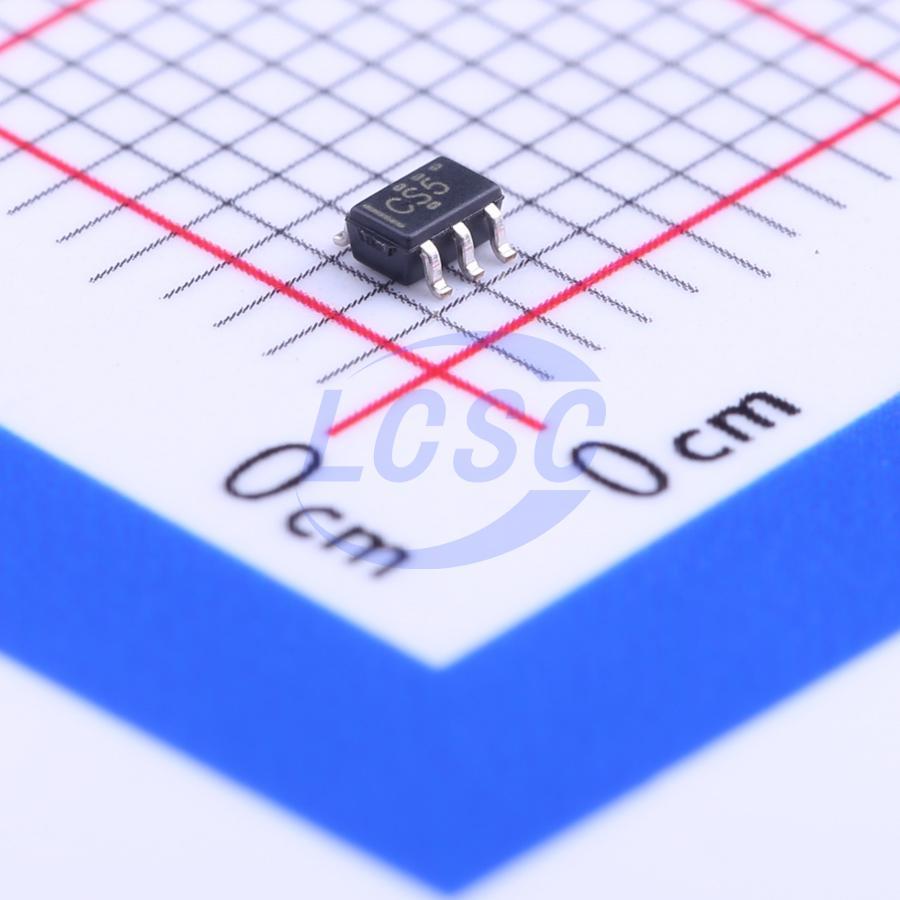

SN74LVC1G97DCKR

The SN74LVC1G97 device features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter, and noninverter. All inputs can be connected to VCC or GND. This configurable multiple-function gate is designed for 1.65 - V to 5.5 - V VCC operation. This device functions as an independent gate, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• Barcode Scanners
• Cable Solutions
• E - Books
• Embedded PCs
• Field Transmitter: Temperature or Pressure Sensors
• Fingerprint Biometrics
• HVAC: Heating, Ventilating, and Air Conditioning
• Network - Attached Storage (NAS)
• Server Motherboards and PSUs
• Software Defined Radios (SDR)
• TVs: High Definition (HDTV), LCD, and Digital - Video Communications Systems
• Wireless Data Access Cards, Headsets, Keyboard, Mouse, and LAN Cards

Key features

• ESD Protection Exceeds JESD 22
• ESD Protection Exceeds JESD 22 - 2000 - V Human Body Model (A114 - A) - 200 - V Machine Model (A115 - A) - 1000 - V Charged - Device Model (C101)
• Available in the Texas Instruments NanoFree™ Package
• Supports 5 - V VCC Operation
• Inputs Accept Voltages to 5.5V
• Supports Down Translation to VCC
• Max tpd of 6.3 ns at 3.3V
• Low Power Consumption, 10 - μA Max ICC
• ±24 - mA Output Drive at 3.3V
• Ioff Supports Live Insertion, Partial - Power - Down Mode, and Back - Drive Protection
• Latch - Up Performance Exceeds 100mA Per JESD 78, Class II
• Choose From Nine Specific Logic Functions
