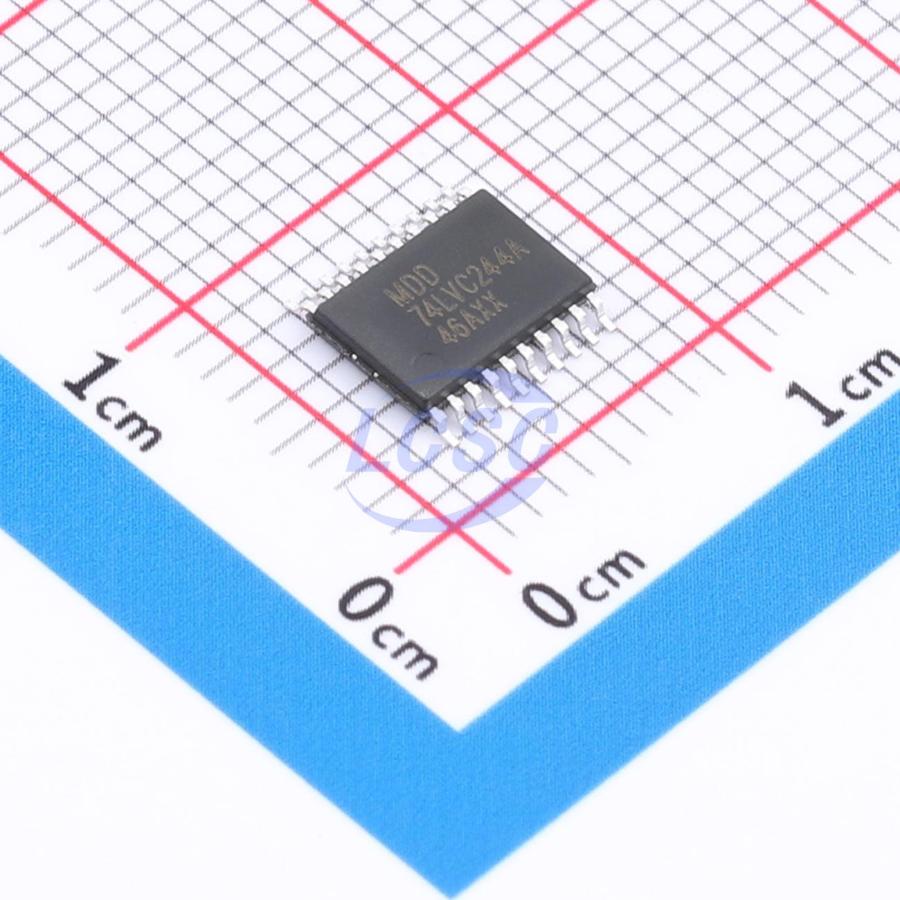

74LVC244APW
₹121.60 for 5 + GST
Specifications
- Current - Output High(IOH)
- 32mA
- Input type
- Schmitt trigger
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 20uA
- Propagation Delay
- 15ns@5.5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.147 g
Overview
The 74LVC244A and 74LVCH244A are 8-bit buffers/line drivers with 3-state outputs. These devices can be used as two 4-bit buffers or one 8-bit buffer. Both devices feature two output enable inputs (1OE and 2OE), each controlling four 3-state outputs. When nOE is HIGH, the outputs are in a high-impedance off-state. Inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V environments. All inputs incorporate Schmitt-trigger action, allowing the circuit to accommodate slower input rise and fall times. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range: 1.2V to 5.5V
- Direct TTL-level interface compatible
- CMOS low power consumption
- Input overvoltage tolerance up to 5.5V
- Bus-hold on all data inputs (74LVCH244A only)
- IOFF circuitry for partial power-down operation
- Latch-up performance exceeds 250mA
- JEDEC standard compliant:
- JESD8-7A (1.65V to 1.95V)
- JESD8-5A (2.3V to 2.7V)
- JESD8-C/JESD36 (2.7V to 3.6V)
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 6000V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
Alternatives
Similar parts — check the datasheet before substituting.
