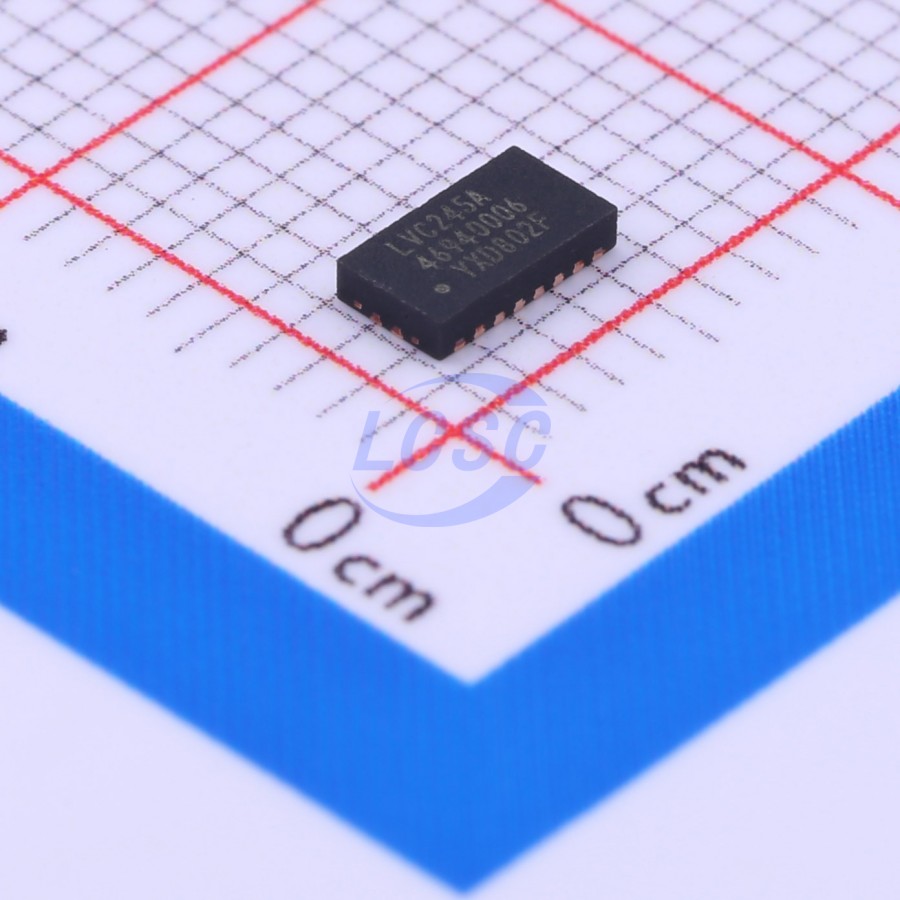

74LVC245ABQ,115
Schmitt trigger 1.2V~3.6V 8 1 2.9ns@3.3V,50pF DHVQFN-20(2.5x4.5) Buffers, Drivers, Receivers, Transceivers RoHS
DHVQFN-20(2.5x4.5)ROHS3 CompliantActive
Octal bus transceiver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC245ABQ,115
- Store part #
- C294612
- Package / case
- DHVQFN-20(2.5x4.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,790 in stock
#C294612
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.99 | ₹199.95 |
| 50+ | ₹31.24 | ₹1,562.00 |
| 150+ | ₹27.49 | ₹4,123.50 |
| 500+ | ₹22.81 | ₹11,405.00 |
| 3,000+ | ₹20.72 | ₹62,160.00 |
| 6,000+ | ₹19.46 | ₹1,16,760.00 |
5 × ₹39.99
₹199.95
excl. GST
₹235.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC245ABQ,115
₹199.95 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.2V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting;Power-off isolation
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.9ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.072 g
Overview
The 74LVC245A; 74LVCH245A is an 8-bit transceiver with 3-state outputs. The device features an output enable (OE) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range from 1.2 V to 3.6 V
- CMOS low-power consumption
- Direct interface with TTL levels
- Overvoltage tolerant inputs to 5.5 V
- Bus hold on all data inputs (74LVCH245A only)
- IOFF circuitry provides partial Power-down mode operation
- Complies with JEDEC standard: JESD8-7A (1.65 V to 1.95 V), JESD8-5A (2.3 V to 2.7 V), JESD8-C/JESD36 (2.7 V to 3.6 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
