JSMSEMIDatasheet (PDF)

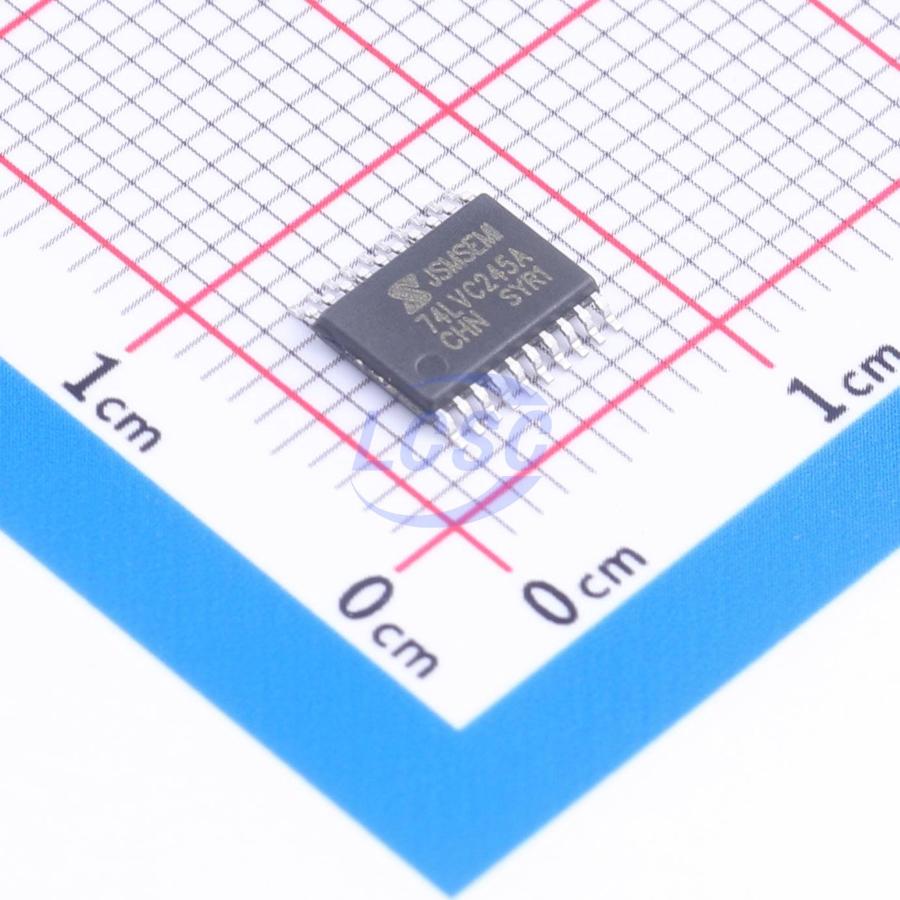

74LVC245APW,118-JSM
1.65V~5.5V 8 1 2.9ns@3.3V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC245APW,118-JSM
- Store part #
- C53436276
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,980 in stock
#C53436276
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.49 | ₹157.45 |
| 50+ | ₹24.91 | ₹1,245.50 |
| 150+ | ₹22.09 | ₹3,313.50 |
| 500+ | ₹18.57 | ₹9,285.00 |
| 2,500+ | ₹17.00 | ₹42,500.00 |
| 5,000+ | ₹16.06 | ₹80,300.00 |
5 × ₹31.49
₹157.45
excl. GST
₹185.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LVC245APW,118-JSM
₹157.45 for 5 + GST
Specifications
- Current - Output High(IOH)
- 50mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 50mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 2.9ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.226 g
Overview
74LVC245APW,118 - JS is an 8-bit transceiver with noninverting 3-state bus-compatible outputs in both send and receive directions. The circuit features an output enable input (OE) for easy cascading and a transmit/receive input (DIR) for direction control. OE controls the outputs to effectively isolate the bus. Inputs can be driven by 3.3V or 5V devices. When disabled, up to 5.5V can be applied to the outputs. These features allow the devices to be used in mixed 3.3V and 5V applications.
Key features
- 5V tolerant I/O for interfacing with 5V logic
- Wide supply voltage range: 1.2V ~ 5.5V
- CMOS low power consumption
- Direct TTL level interface
- Inputs accept voltages up to 5.5V
- High impedance when Vcc = 0V
- Package: TSSOP20
