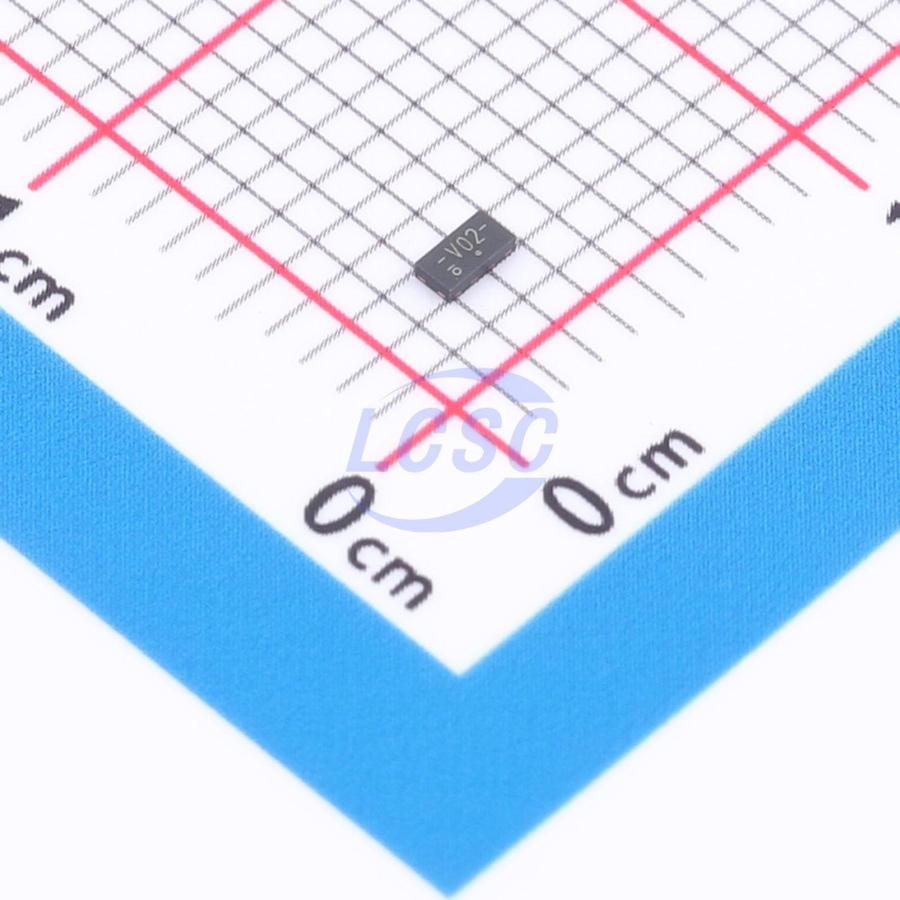

Nexperia

74LVC2G02GT,115

Schmitt trigger 1.65V~5.5V 4.3ns@5V,50pF 4uA XSON-8(1x2) Gates and Inverters RoHS

XSON-8(1x2)ROHS3 CompliantActive

Dual 2-input NOR gate

Manufacturer: Nexperia
Manufacturer part #: 74LVC2G02GT,115
Store part #: C548543
Package / case: XSON-8(1x2)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,030 in stock

#C548543

Stock & price checked 29 h ago

Quantity	Unit price	Pack price
5+	₹16.50	₹82.50
50+	₹14.35	₹717.50
150+	₹13.43	₹2,014.50
500+	₹12.28	₹6,140.00
2,500+	₹11.77	₹29,425.00
5,000+	₹11.46	₹57,300.00

Quantity (min 5, multiples of 5)

5 × ₹16.50

₹82.50

excl. GST

₹97.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

74LVC2G02GT,115

₹82.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;450mV;300mV;400mV;550mV
Propagation Delay: 4.3ns@5V,50pF
Features: Local shutdown mode;Overvoltage-tolerant input
Input Logic Level - Low: 700mV~800mV
Input Logic Level - High: 1.7V~2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Quiescent Current(Iq): 4uA
Number of Channels: 2;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.024 g

Overview

The 74LVC2G02 is a dual 2-input NOR gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.

Applications

Translator for mixed 3.3V and 5V environments
Interface with 5V logic
Direct interface with TTL levels

Key features

Wide supply voltage range from 1.65 V to 5.5 V
5 V tolerant outputs for interfacing with 5 V logic
Overvoltage tolerant inputs to 5.5 V
High noise immunity
±24 mA output drive (VCC = 3.0 V)
CMOS low power consumption
IOFF circuitry provides partial Power-down mode operation
Latch-up performance exceeds 250 mA
Direct interface with TTL levels
Complies with JEDEC standard: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8-B/JESD36 (2.7 V to 3.6 V)
ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Multiple package options
Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
