DIODES

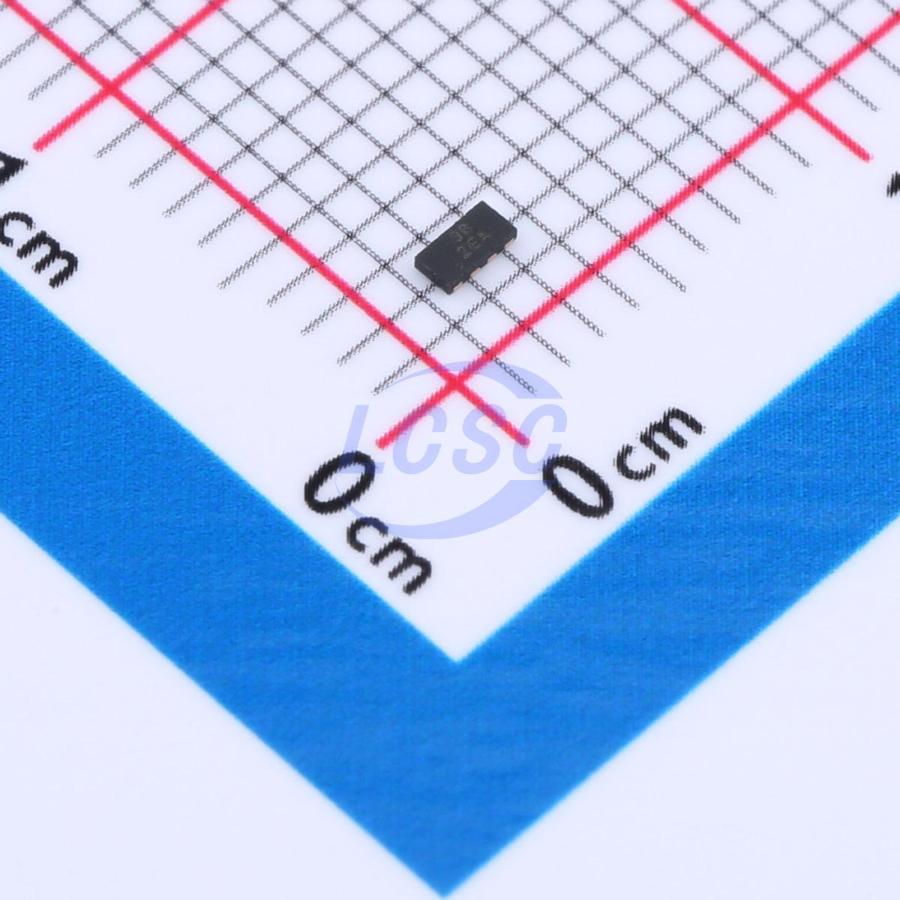

74LVC2G02HD4-7

Schmitt trigger 1.65V~5.5V 5.5ns@5V,50pF 40uA X2-DFN2010-8 Gates and Inverters RoHS

X2-DFN2010-8ROHS3 CompliantActive

DUAL 2-INPUT NOR GATE

Manufacturer: DIODES
Manufacturer part #: 74LVC2G02HD4-7
Store part #: C842640
Package / case: X2-DFN2010-8
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,000 in stock

#C842640

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹19.25	₹96.25
50+	₹15.35	₹767.50
150+	₹13.39	₹2,008.50
500+	₹11.92	₹5,960.00
2,500+	₹10.74	₹26,850.00
5,000+	₹10.16	₹50,800.00

Quantity (min 5, multiples of 5)

5 × ₹19.25

₹96.25

excl. GST

₹113.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

74LVC2G02HD4-7

₹96.25 for 5 + GST

Specifications

Input Type: Schmitt trigger
output type: Push-pull
Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 5.5ns@5V,50pF
Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 40uA
Number of Channels: 2;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.035 g

Overview

The 74LVC2G02 is a dual, two input NOR gate. Both gates have push-pull outputs designed for operation over a power supply range of 1.65V to 5.5V. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing damaging current backflow when the device is powered down. Each gate performs the positive Boolean function.

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
PCs, Networking, Notebooks, Netbooks, PDAs
Tablet Computers, E-readers
Computer Peripherals, Hard Drives, CD/DVD ROMs
TVs, DVDs, DVRs, Set Top Boxes
Cell Phones, Personal Navigation / GPS
MP3 Players, Cameras, Video Recorders

Key features

Wide Supply Voltage Range from 1.65 to 5.5V
±24mA Output Drive at 3.3V CMOS Low Power Consumption
IOFF Supports Partial-Power-Down Mode Operation
Inputs accept up to 5.5V Schmitt Trigger Action at all inputs makes the circuit tolerant for slower input rise and fall times. The hysteresis is typically 100mV at VCC = 3.0V.
ESD Protection Exceeds JESD 22 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	74LVC2G02GT,115#C548543Nexperia · XSON-8(1x2)	Nexperia	XSON-8(1x2)	3,030	₹16.50 · 3,030 in stock	View
	NL27WZ02MU1TCG#C893438onsemi · UDFN-8(1x2)	onsemi	UDFN-8(1x2)	On request	Price on request	Quote
