JSMSEMIDatasheet (PDF)

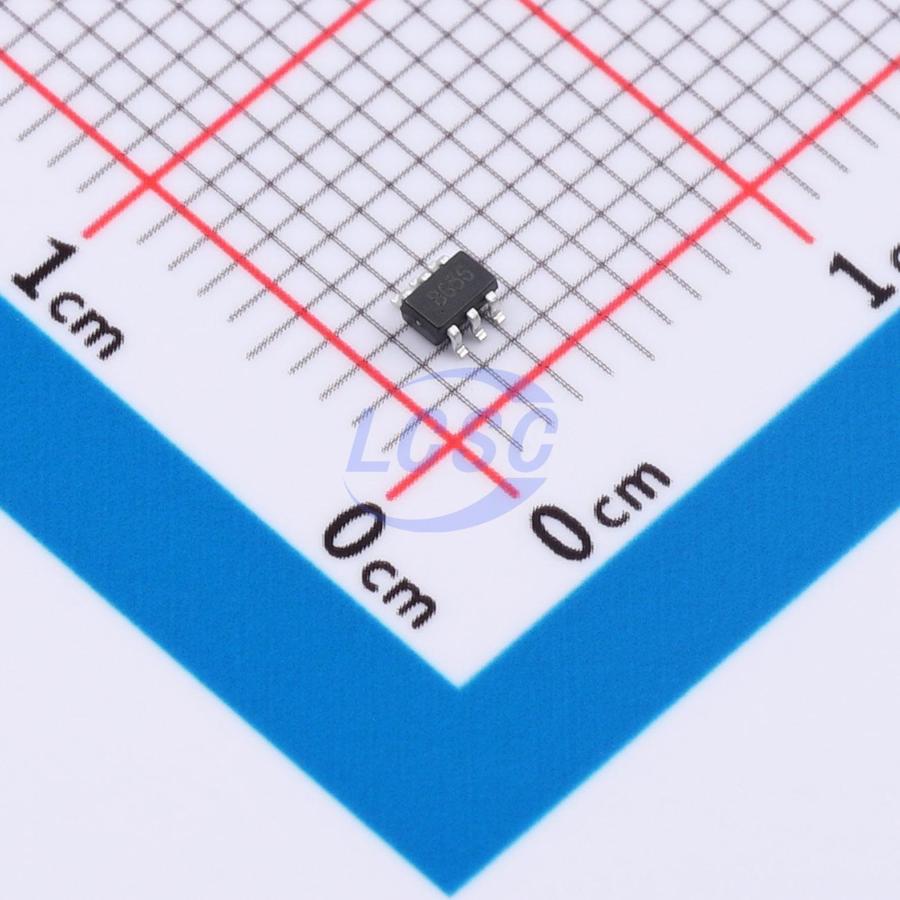

74LVC2G07GW,125-JSM
1.65V~5.5V 1 2 9.1ns@3.3V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC2G07GW,125-JSM
- Store part #
- C53114386
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,395 in stock
#C53114386
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.05 | ₹55.25 |
| 50+ | ₹8.78 | ₹439.00 |
| 150+ | ₹7.66 | ₹1,149.00 |
| 500+ | ₹6.81 | ₹3,405.00 |
| 3,000+ | ₹6.14 | ₹18,420.00 |
| 6,000+ | ₹5.79 | ₹34,740.00 |
5 × ₹11.05
₹55.25
excl. GST
₹65.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G07GW,125-JSM
₹55.25 for 5 + GST
Specifications
- Function
- Level shifting
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 9.1ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The 74LVC2G07 provides two non-inverting buffers. The device features open-drain outputs that can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. Inputs can be driven by 3.3V or 5V devices, allowing the device to be used in mixed 3.3V and 5V environments.
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- 5V-compatible inputs for easy interface with 5V logic
- 24mA output drive capability (VCC = 3.0V)
- CMOS low power consumption
- Operating temperature range: -40℃ ~ +125℃
- Package options: SOT-23-6, SOT-363, XSON6
