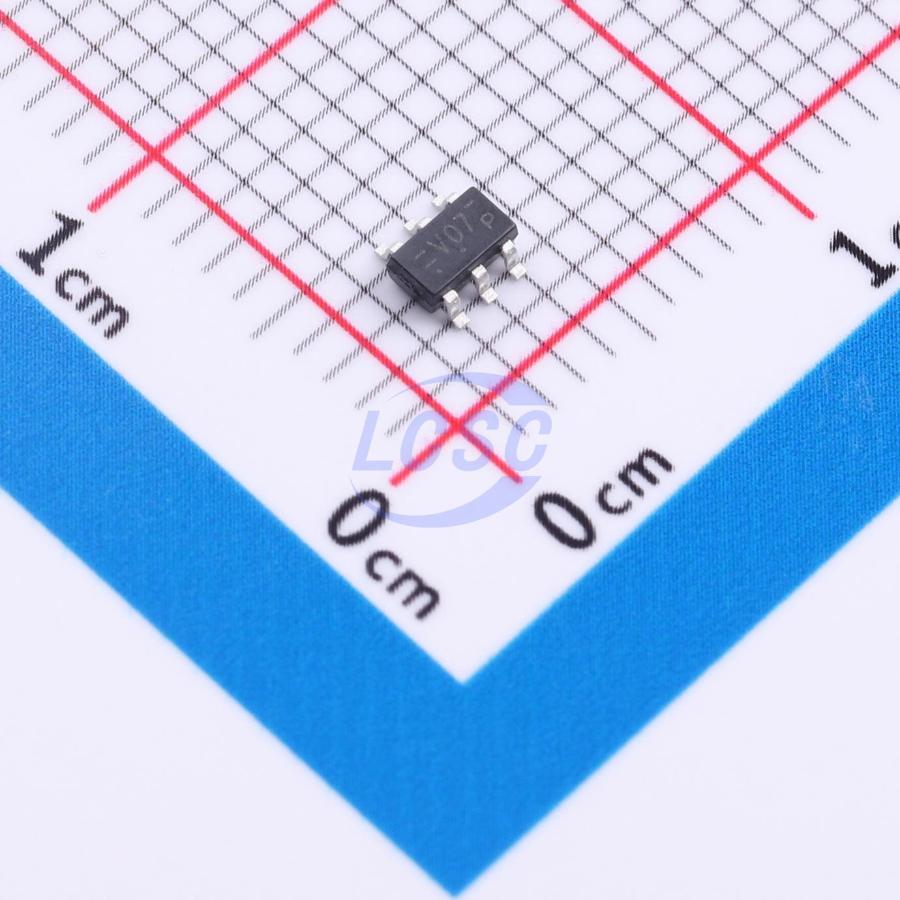

74LVC2G07W6-TP
Schmitt trigger 1.65V~5.5V 2 5.4ns@3.3V,50pF SOT23-6 Buffers, Drivers, Receivers, Transceivers
SOT23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC2G07W6-TP
- Store part #
- C52145917
- Package / case
- SOT23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C52145917
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.22 | ₹72.20 |
| 100+ | ₹5.68 | ₹568.00 |
| 300+ | ₹4.91 | ₹1,473.00 |
| 3,000+ | ₹4.33 | ₹12,990.00 |
| 6,000+ | ₹3.86 | ₹23,160.00 |
| 9,000+ | ₹3.64 | ₹32,760.00 |
10 × ₹7.22
₹72.20
excl. GST
₹85.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G07W6-TP
₹72.20 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 5.4ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
74LVC2G07 is a high-performance, low-power, low-voltage silicon-gate CMOS device that provides two independent buffers with Schmitt-trigger inputs. The device converts slowly changing input signals into clean, well-defined, bounce-free output signals.
Applications
- Voltage level translation
- General-purpose logic
- Power-off signal isolation
- Personal computers
- Network equipment
- Laptops
- Netbooks
- PDAs
- Tablet PCs
- E-readers
- Computer peripherals
- Hard disk drives
- CD/DVD drives
- TVs
- DVD players
- Digital video recorders
- Set-top boxes
- Mobile phones
- Personal navigation/GPS devices
- MP3 players
- Cameras
- Camcorders
Key features
- Operating voltage range: 1.65V to 5.5V
- 5V-tolerant inputs/outputs compatible with 5V logic
- ±24mA output drive capability (VCC = 3.3V)
- CMOS low power consumption and high noise immunity
- Partial power-down mode operation supported during power-off
- Latch-up performance exceeds 100mA
- Operating temperature range: -40°C ~ +125°C
- ESD protection exceeds JESD 22 standard
- 2000-V Human Body Model (A114-A)
- 1000-V Charged Device Model (C101)
- Available in SOT23-6 package
- Available in SOT363 package
