TDSEMICDatasheet (PDF)

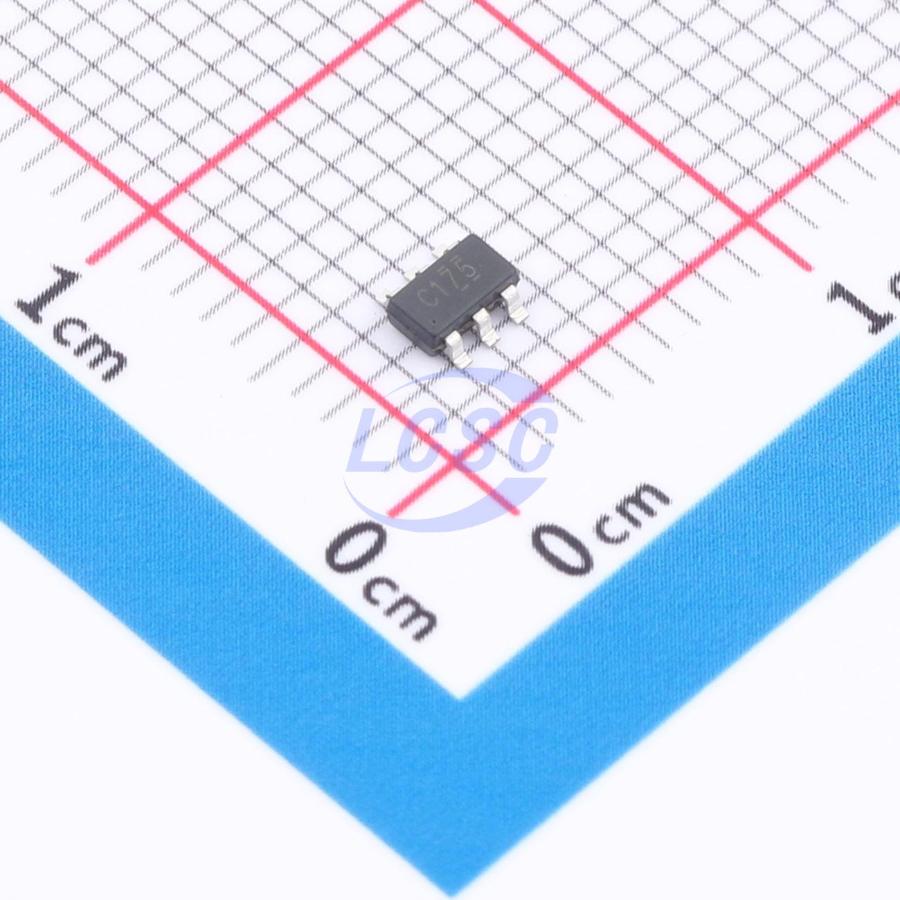

74LVC2G17DBVR-TD
Schmitt trigger 1.65V~5.5V 2 2 SOT-23-6 Buffers, Drivers, Receivers, Transceivers
SOT-23-6RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- 74LVC2G17DBVR-TD
- Store part #
- C53514497
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C53514497
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.41 | ₹84.10 |
| 100+ | ₹6.89 | ₹689.00 |
| 300+ | ₹6.13 | ₹1,839.00 |
| 3,000+ | ₹5.56 | ₹16,680.00 |
| 6,000+ | ₹5.09 | ₹30,540.00 |
| 9,000+ | ₹4.87 | ₹43,830.00 |
10 × ₹8.41
₹84.10
excl. GST
₹99.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G17DBVR-TD
₹84.10 for 10 + GST
Specifications
- Current - Output High(IOH)
- 32mA
- Input type
- Schmitt trigger
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 2
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.12 g
Overview
This dual Schmitt-trigger buffer is designed for 1.65V to 5.5V VCC operation. The 74LVC2G17 device contains two buffers that perform the Boolean function Y = A. The device operates as two independent buffers, but due to the Schmitt-trigger action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. The device is fully specified for partial power-down applications using Ioff. The Ioff circuit disables the outputs, preventing damaging current backflow through the device when it is powered down.
Key features
- 5V VCC operation supported
- Inputs accept voltages up to 5.5V
- Low power consumption, maximum ICC of 10μA
- Output drive of ±24mA at 3.3V
- Ioff supports hot insertion, partial power-down mode, and back-drive protection
