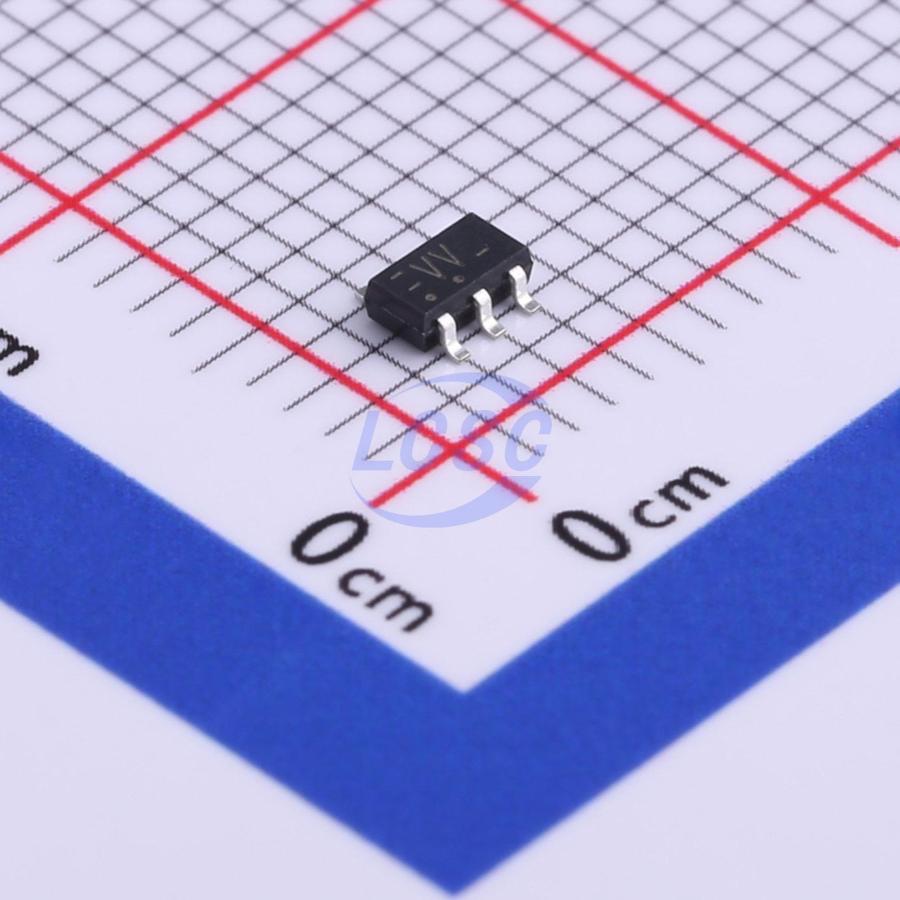

74LVC2G17GV,125
Schmitt trigger 1.65V~5.5V 1 2 3.6ns@3.3V,50pF SC-74-6 Buffers, Drivers, Receivers, Transceivers RoHS
SC-74-6ROHS3 CompliantActive
Dual non-inverting Schmitt trigger with 5 V tolerant input
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC2G17GV,125
- Store part #
- C513289
- Package / case
- SC-74-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,225 in stock
#C513289
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.09 | ₹155.45 |
| 50+ | ₹24.90 | ₹1,245.00 |
| 150+ | ₹22.24 | ₹3,336.00 |
| 500+ | ₹18.93 | ₹9,465.00 |
| 3,000+ | ₹15.03 | ₹45,090.00 |
| 6,000+ | ₹14.14 | ₹84,840.00 |
5 × ₹31.09
₹155.45
excl. GST
₹183.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G17GV,125
₹155.45 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 3.6ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
The 74LVC2G17 is a dual buffer with Schmitt-trigger inputs. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.
Applications
- Wave and pulse shapers for highly noisy environments
- Dual non-inverting Schmitt trigger with 5 V tolerant input
Key features
- Wide supply voltage range from 1.65 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- ±24 mA output drive (VCC = 3.0 V)
- CMOS low-power consumption
- Latch-up performance exceeds 250 mA
- Direct interface with TTL levels
- IOFF circuitry provides partial Power-down mode operation
- Complies with JEDEC standard: JESD8 - 7 (1.65 V to 1.95 V), JESD8 - 5 (2.3 V to 2.7 V), JESD - 8B/JESD36 (2.7 V to 3.6 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS - 001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS - 002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC2G07GV-Q100H#C548569Nexperia · SC-74 | Nexperia | SC-74 | 100 | ₹27.51 · 100 in stock | View |
 | 74LVC2G34GV,125#C548649Nexperia · SC-74 | Nexperia | SC-74 | 20 | ₹25.60 · 20 in stock | View |
 | SN74LVC2G17DB(LX)#C22469940lingxingic · SOT-23-6 | lingxingic | SOT-23-6 | 180 | ₹8.12 · 180 in stock | View |
 | AIP74LVC2G17GB236.TR#C3294723Wuxi I-core Elec · SOT-23-6 | Wuxi I-core Elec | SOT-23-6 | 1,490 | ₹10.11 · 1,490 in stock | View |
 | SN74LVC2G17T236(XBLW)#C49242133XBLW · SOT-23-6 | XBLW | SOT-23-6 | 390 | ₹7.92 · 390 in stock | View |
