MDD(Microdiode Semiconductor)

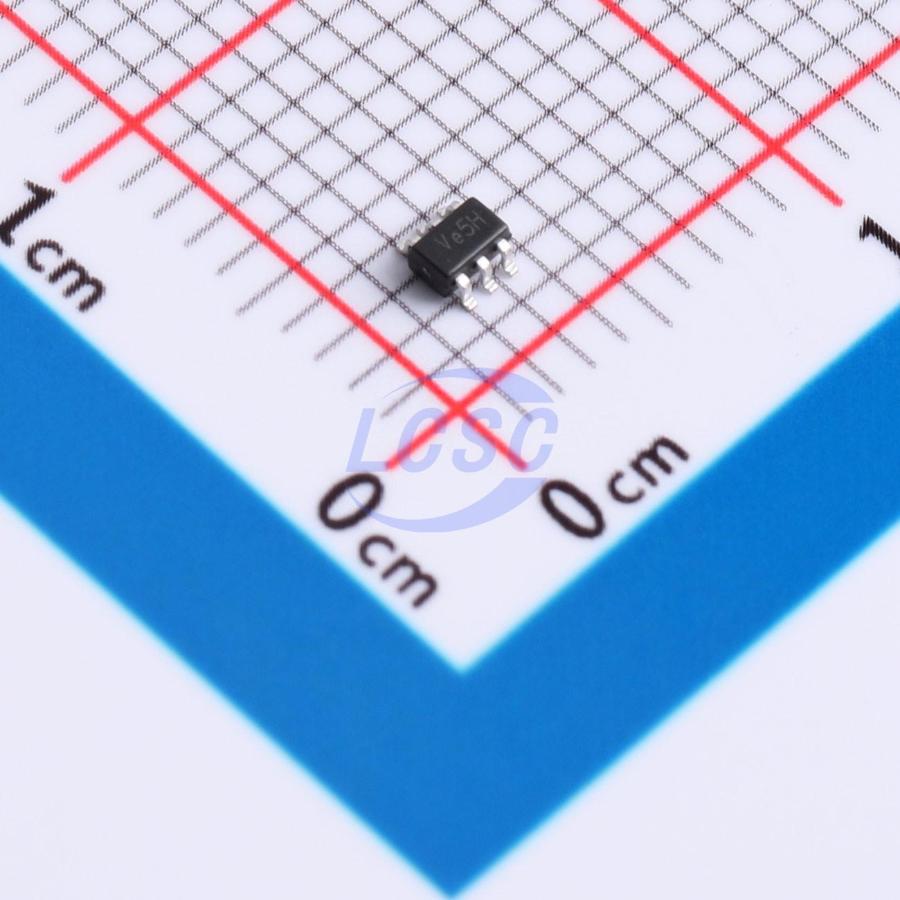

74LVC2G17GW

Schmitt trigger 1.65V~5.5V 1 2 4.3ns@3.3V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers

SOT-363RoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74LVC2G17GW
Store part #: C52953353
Package / case: SOT-363
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,750 in stock

#C52953353

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.59	₹95.90
100+	₹7.55	₹755.00
300+	₹6.55	₹1,965.00
3,000+	₹5.78	₹17,340.00
6,000+	₹5.17	₹31,020.00
9,000+	₹4.87	₹43,830.00

Quantity (min 10, multiples of 10)

10 × ₹9.59

₹95.90

excl. GST

₹113.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC2G17GW

₹95.90 for 10 + GST

Specifications

Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 4uA
Function: Power-off isolation;Level shifting
Current - Output High(IOH): 24mA
Series: 74LVC
Current - Output Low(IOL): 24mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 2
Propagation Delay: 4.3ns@3.3V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.074 g

Overview

The 74LVC2G17 is a dual buffer with Schmitt-trigger inputs. Its inputs can be driven by 3.3V or 5V devices, allowing it to function as a level translator in mixed 3.3V/5V environments. The device is fully specified for partial power-down applications using I(OFF). The I(OFF) circuitry disables the outputs, preventing potentially damaging reverse current flow when the device is powered down.

Key features

Wide supply voltage range: 1.65V to 5.5V
Input overvoltage tolerance up to 5.5V
High noise immunity
±24 mA output drive capability (VCC = 3.0V)
CMOS low power consumption
Latch-up performance exceeds 100mA
Direct TTL-level interface compatible
I(OFF) circuitry enables partial power-down mode operation
Compliant with JEDEC standards: JESD8-7 (1.65V to 1.95V), JESD8-5 (2.3V to 2.7V), JESD8B/JESD36 (2.7V to 3.6V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000V; MM JESD22-A115C Class C exceeds 550V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
Multiple package options
