JSMSEMIDatasheet (PDF)

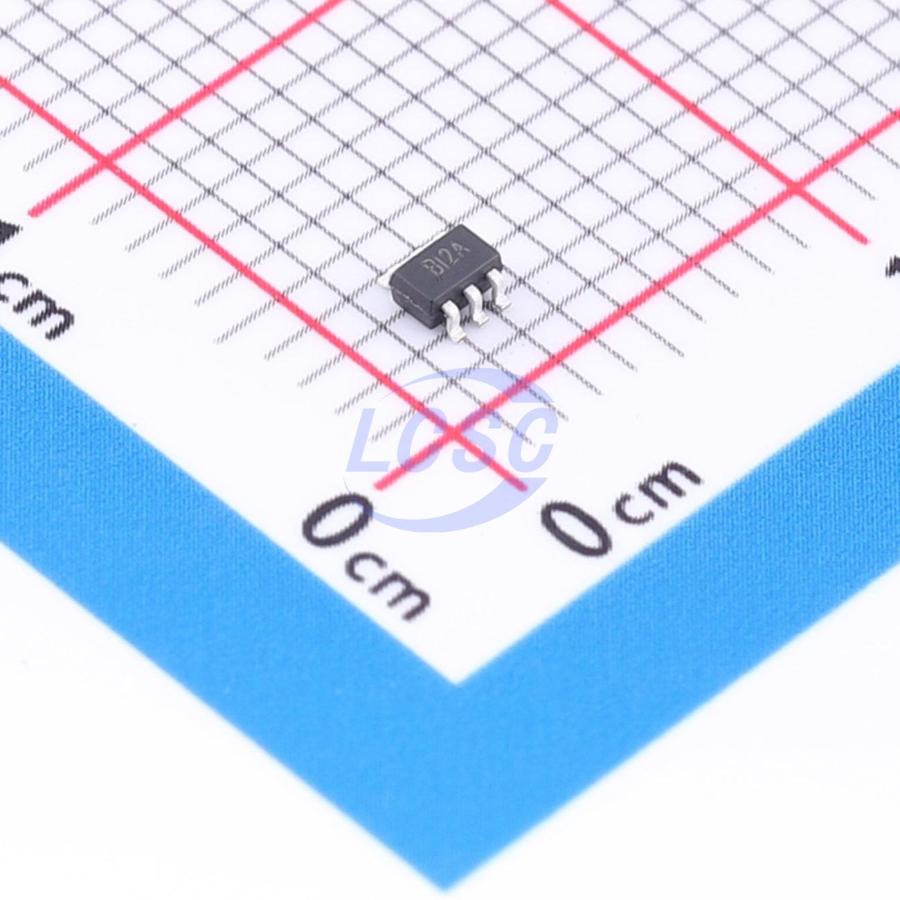

74LVC2G17GW-JSM
Schmitt trigger 1.65V~5.5V 2 1 10ns@5V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC2G17GW-JSM
- Store part #
- C53436267
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C53436267
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.38 | ₹73.80 |
| 100+ | ₹5.87 | ₹587.00 |
| 300+ | ₹5.12 | ₹1,536.00 |
| 3,000+ | ₹4.55 | ₹13,650.00 |
| 6,000+ | ₹4.10 | ₹24,600.00 |
| 9,000+ | ₹3.88 | ₹34,920.00 |
10 × ₹7.38
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G17GW-JSM
₹73.80 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Current - Output High(IOH)
- 50mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 50mA
- Number of Bits per Element
- 2
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 10ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
The 74LVC2G17 provides two Schmitt-trigger buffers. The inputs are compatible with 3.3V or 5V logic levels, allowing the device to be used in mixed 3.3V/5V voltage environments. All inputs incorporate Schmitt-trigger action, enabling the circuit to accommodate input signals with slow rise and fall times.
Key features
- Supply voltage range: 1.65V ~ 5.5V
- 5V input compatible
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Operating temperature: -40°C ~ +125°C
- Package: SOT–23–6/SOT–363
