74LVC2G32DP,125
Schmitt trigger 1.65V~5.5V 3.2ns@5V,50pF 4uA TSSOP-8 Gates and Inverters RoHS
TSSOP-8ROHS3 CompliantActive

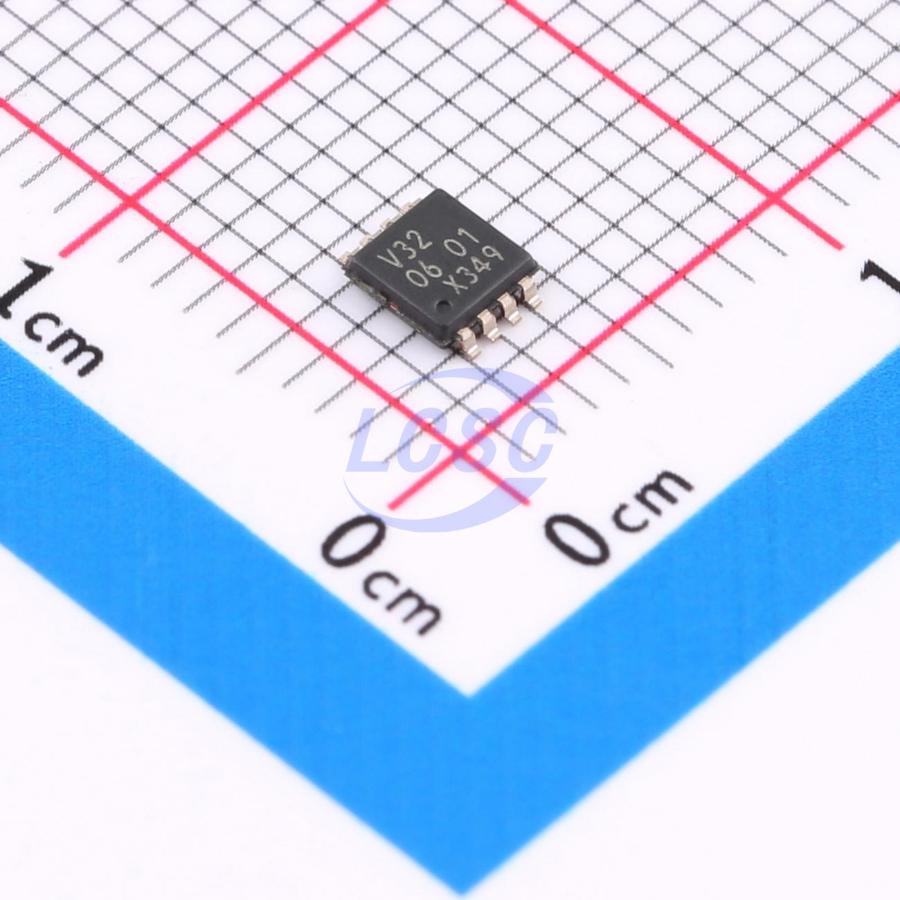

Dual 2-input OR gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC2G32DP,125
- Store part #
- C548635
- Package / case
- TSSOP-8
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,220 in stock
#C548635
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.46 | ₹202.30 |
| 50+ | ₹31.71 | ₹1,585.50 |
| 150+ | ₹27.97 | ₹4,195.50 |
| 500+ | ₹23.30 | ₹11,650.00 |
| 3,000+ | ₹20.68 | ₹62,040.00 |
| 6,000+ | ₹19.43 | ₹1,16,580.00 |
5 × ₹40.46
₹202.30
excl. GST
₹238.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G32DP,125
₹202.30 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 430mV~550mV
- Propagation Delay
- 3.2ns@5V,50pF
- Features
- Local shutdown mode;Overvoltage-tolerant input;Rear drive protection
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V~2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.8V~4.1V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 2;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
The 74LVC2G32 is a dual 2-input OR gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range from 1.65 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- 5 V tolerant outputs in the Power-down mode
- ±24 mA output drive (VCC = 3.0 V)
- Latch-up performance exceeds 250 mA
- Direct interface with TTL levels
- IOFF circuitry provides partial Power-down mode operation
- Complies with JEDEC standard: JESD8 - 7 (1.65 V to 1.95 V) JESD8 - 5 (2.3 V to 2.7 V) JESD8C (2.7 V to 3.6 V) JESD36 (4.5 V to 5.5 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS - 001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS - 002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
