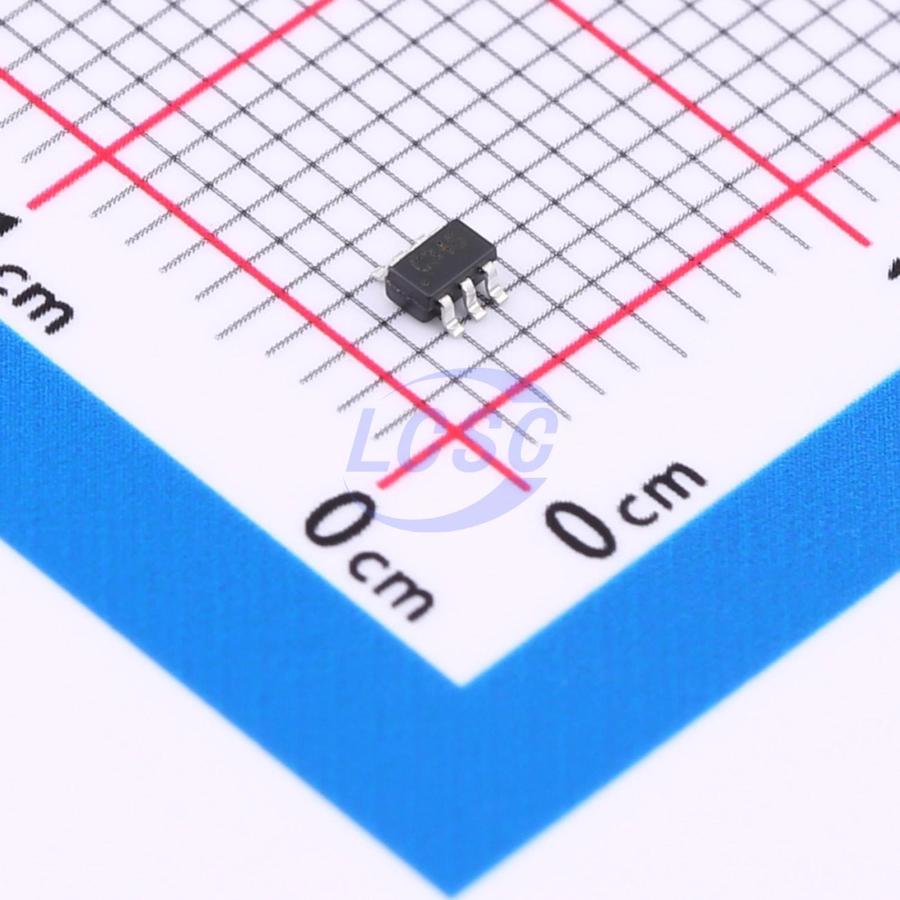

74LVC2G34CT06ARCQ

1.65V~5.5V 1 2 SC-70-6 Buffers, Drivers, Receivers, Transceivers

SC-70-6RoHSActive

Dual Buffer Gate

Manufacturer: GR
Manufacturer part #: 74LVC2G34CT06ARCQ
Store part #: C46527081
Package / case: SC-70-6
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,540 in stock

#C46527081

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
10+	₹5.86	₹58.60
100+	₹4.63	₹463.00
300+	₹4.02	₹1,206.00
3,000+	₹3.56	₹10,680.00
6,000+	₹3.19	₹19,140.00
9,000+	₹3.00	₹27,000.00

Quantity (min 10, multiples of 10)

10 × ₹5.86

₹58.60

excl. GST

₹69.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC2G34CT06ARCQ

₹58.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 1.65V~5.5V
Operating Temperature: 0℃~+70℃
Quiescent Supply Current: 10uA
Function: Power-off isolation;Hot-swap support;Level shifting
Current - Output High(IOH): 32mA
Series: 74LVC
Current - Output Low(IOL): 32mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 2

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

The 74LVC2G34 is a dual buffer gate designed for 1.65V to 5.5V Vcc operation. The device performs the Boolean function Y = A in positive logic. The device is fully specified for partial power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow when the device is powered down.

Key features

Supports 5.5V VCC operation
Inputs accept voltages up to 5.5V
Low power consumption, maximum ICC of 10μA
±24 mA output drive at 3.3V
I_off supports hot insertion, partial power-down mode, and back-drive protection
Usable as a down-translation converter, translating inputs up to 5.5V to Vcc level
