MDD(Microdiode Semiconductor)

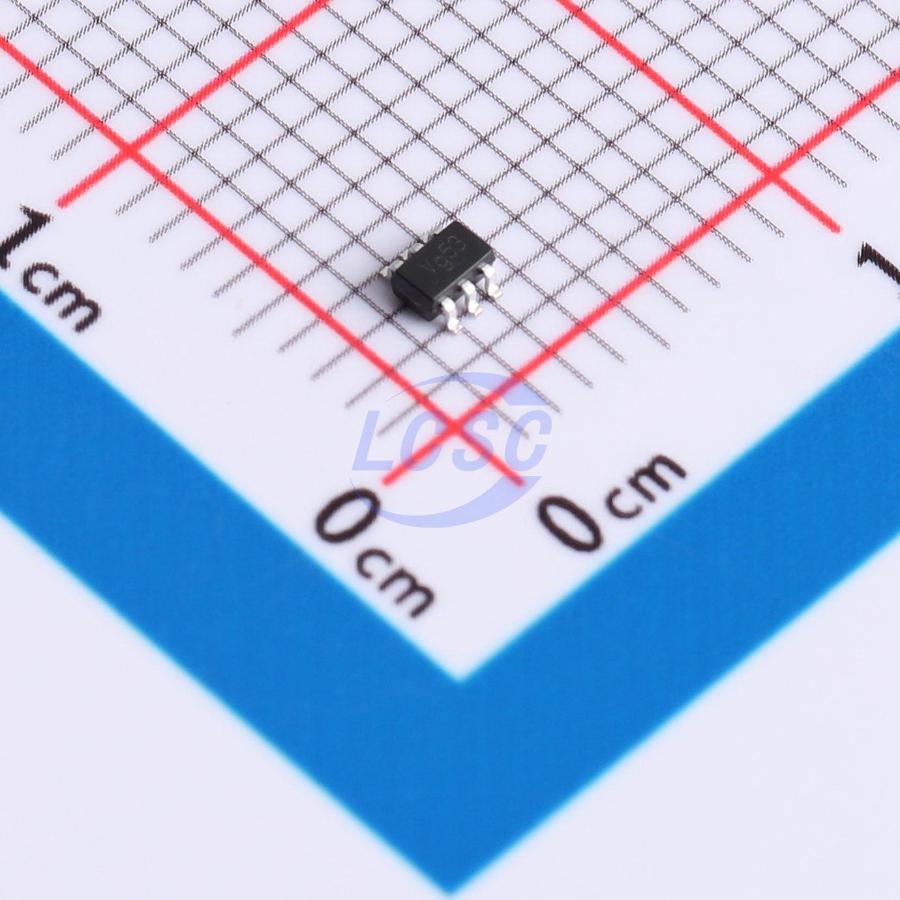

74LVC2G34GW

Schmitt trigger 1.65V~5.5V 2 2 2.5ns@3.3V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers

SOT-363RoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74LVC2G34GW
Store part #: C52140488
Package / case: SOT-363
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,901 in stock

#C52140488

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹16.64	₹16.64
10+	₹13.11	₹131.10
30+	₹11.35	₹340.50
100+	₹10.04	₹1,004.00
500+	₹8.98	₹4,490.00
1,000+	₹8.45	₹8,450.00

Quantity (min 1)

1 × ₹16.64

₹16.64

excl. GST

₹19.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC2G34GW

₹16.64 for 1 + GST

Specifications

Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 4uA
Function: Power-off isolation;Level shifting
Current - Output High(IOH): 24mA
Series: 74LVC
Current - Output Low(IOL): 24mA
Number of Bits per Element: 2
Channel Type: Unidirectional
Number of Elements: 2
Propagation Delay: 2.5ns@3.3V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.072 g

Overview

The 74LVC2G34 is a dual buffer. Its inputs can be driven by 3.3V or 5V devices, allowing the device to be used as a level translator in mixed 3.3V and 5V environments. All inputs feature Schmitt-trigger action, enabling the circuit to tolerate slow input rise and fall times. The device is fully specified for partial power-down applications using I_OFF. The I_OFF circuit disables the outputs, preventing damaging backflow current when the device is powered down.

Key features

Wide supply voltage range: 1.65 V to 5.5 V
Input overvoltage tolerance up to 5.5 V
High noise immunity
Output drive capability ±24 mA (VCC = 3.0 V)
CMOS low power consumption
Direct TTL-level interface compatible
I_OFF circuit for partial power-down mode operation
Latch-up performance exceeds 100 mA
JEDEC compliant: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.6 V to 5.5 V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; MM JESD22-A115C Class C exceeds 550 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
Multiple package options
Dual-buffered gates
