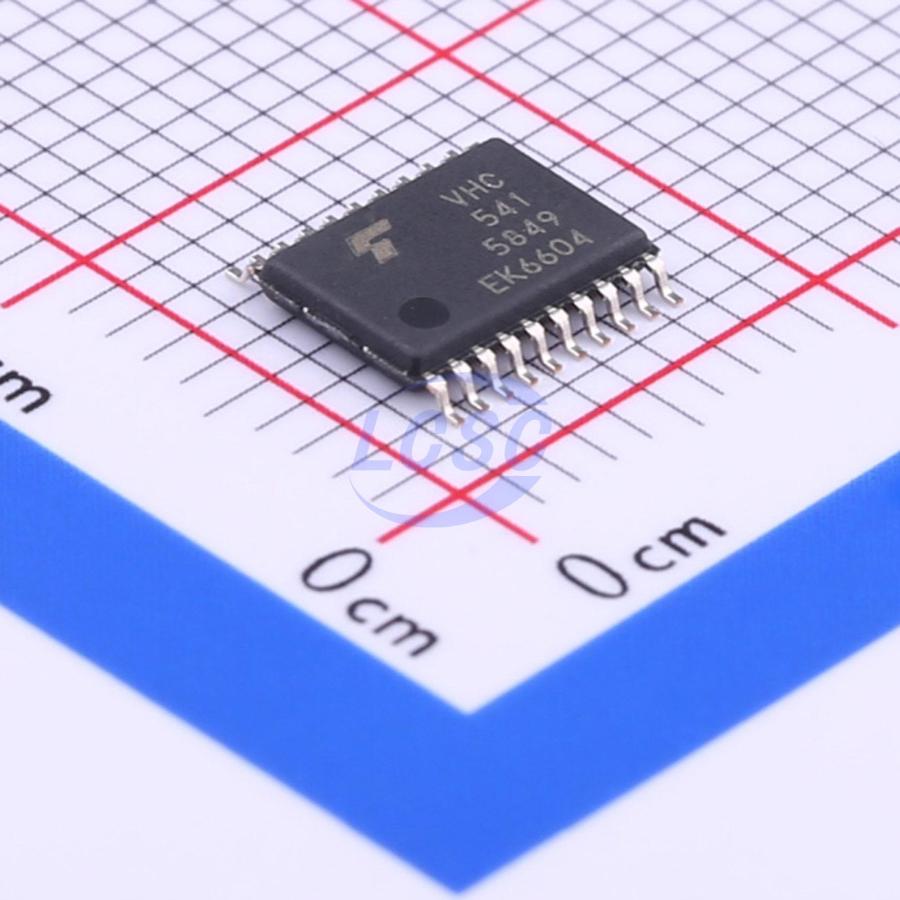

74VHC541FT(BJ)

Octal Bus Buffer 74VHC540FT: Inverted, 3-State Outputs 74VHC541FT: Non-Inverted, 3-State Outputs The 74VHC540FT/74VHC541FT are advanced high speed CMOS OCTAL BUS BUFFERs fabricated with silicon gate C2MOS technology. They achieve the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The 74VHC540FT is an inverting type, and the 74VHC541FT is a non-inverting type. When either G1 or G2 are high, the terminal outputs are in the high-impedance state. An input protection circuit ensures that 0 to 5.5 V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5V to 3V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages

Key features

• AEC-Q100 (Rev. H)
• Wide operating temperature range: Topr = -40 to 125 ℃
• High speed: Propagation delay time = 3.7 ns (typ.) at VCC = 5.0 V
• Low power dissipation: ICC = 4.0 μA (max) at Ta = 25 ℃
• High noise immunity: VNI H = VNIL = 28% VCC (min)
• Power down protection is provided on all inputs.
• Balanced propagation delays: ΔtPLH ≈ tPHL
• Wide operating voltage range: VCC(opr) = 2.0 V to 5.5 V
• Low noise: VOLP = 1.0 V (max)
• Pin and function compatible with 74 series (74AC/HC/AHC/LV etc.) 540 or 541 type.
