NexperiaDatasheet (PDF)

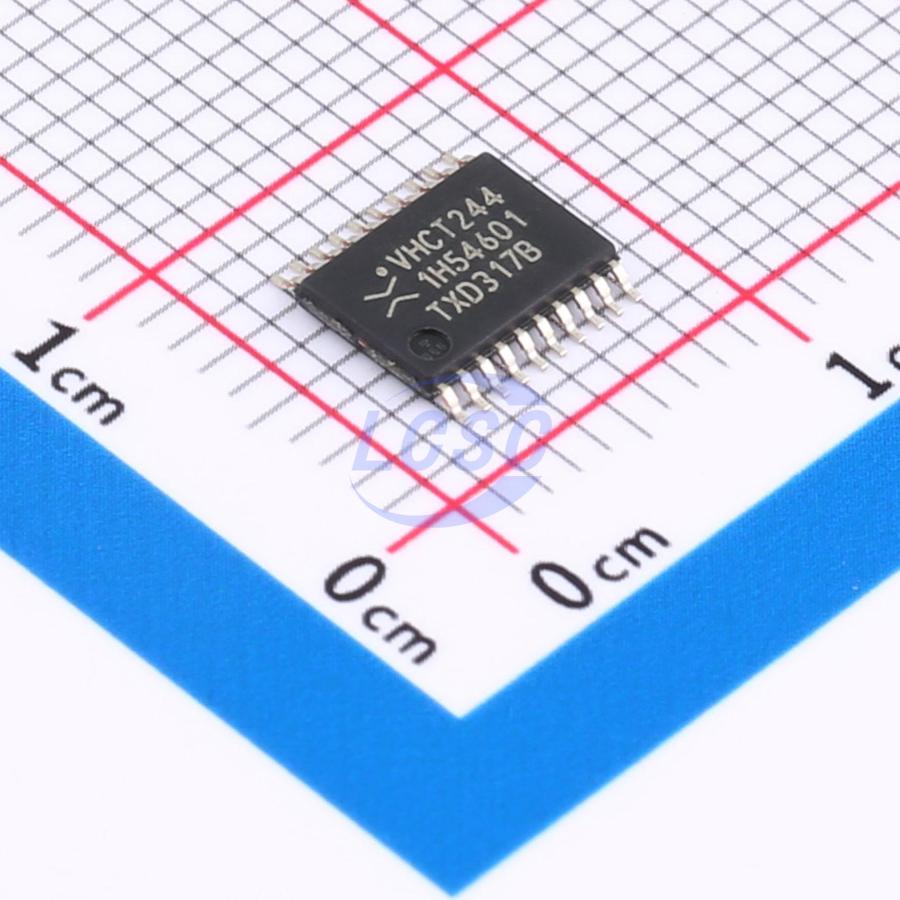

74VHCT244PW,118
Schmitt trigger 4.5V~5.5V 4 2 5ns@5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
Octal buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74VHCT244PW,118
- Store part #
- C549169
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,854 in stock
#C549169
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.95 | ₹53.95 |
| 10+ | ₹42.20 | ₹422.00 |
| 30+ | ₹37.20 | ₹1,116.00 |
| 100+ | ₹30.89 | ₹3,089.00 |
| 500+ | ₹28.06 | ₹14,030.00 |
| 1,000+ | ₹26.33 | ₹26,330.00 |
1 × ₹53.95
₹53.95
excl. GST
₹63.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74VHCT244PW,118
₹53.95 for 1 + GST
Specifications
- Function
- Output enable
- Input type
- Schmitt trigger
- Current - Output High(IOH)
- 8mA
- Series
- 74VHCT
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.145 g
Overview
The 74VHC244; 74VHCT244 are a high-speed Si-gate CMOS devices. The 74VHC244; 74VHCT244 have octal non-inverting buffer/line drivers with 3-state outputs. The 3-state outputs are controlled by the output enable inputs (nOE). A HIGH on nOE causes the outputs to assume a high-impedance OFF-state.
Applications
- Data buffer
- Line driver
Key features
- Balanced propagation delays
- All inputs have a Schmitt-trigger action
- Inputs accepts voltages higher than VCC
- Input levels: The 74VHC244 operates with CMOS input level The 74VHCT244 operates with TTL input level
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT244PW,118#C135583Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 9,360 | ₹30.84 · 9,360 in stock | View |
 | 74AHCT244PW-Q100,1#C554609Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 88 | ₹54.73 · 88 in stock | View |
 | 74AHCT240PW-Q100J#C554602Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 1 | ₹107.92 · 1 in stock | View |
 | 74VHCT244AMTCX#C6154onsemi · TSSOP-20 | onsemi | TSSOP-20 | 2 | ₹74.97 · 2 in stock | View |
 | SN74AHCT240PWR#C507217TI · TSSOP-20 | TI | TSSOP-20 | 99 | ₹62.45 · 99 in stock | View |
