AD4057
nan

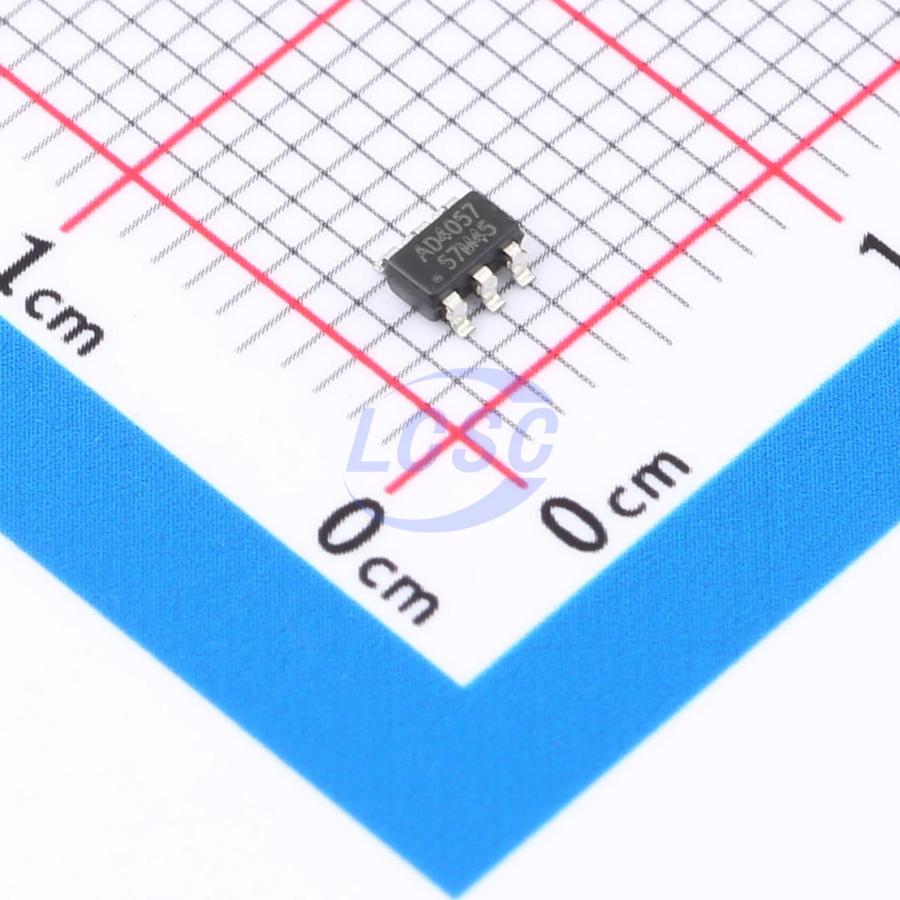

Dual-LED indicator linear lithium-ion battery charger
- Manufacturer
- IDCHIP
- Manufacturer part #
- AD4057
- Store part #
- C395461
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,910 in stock
#C395461
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.75 | ₹77.50 |
| 100+ | ₹6.19 | ₹619.00 |
| 300+ | ₹5.41 | ₹1,623.00 |
| 3,000+ | ₹4.37 | ₹13,110.00 |
| 6,000+ | ₹3.89 | ₹23,340.00 |
| 9,000+ | ₹3.65 | ₹32,850.00 |
10 × ₹7.75
₹77.50
excl. GST
₹91.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AD4057
₹77.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 45uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
AD4057 is a complete single-cell lithium-ion battery charger featuring constant-current/constant-voltage linear charging. Housed in a tiny SOT-23-6 package with minimal external components, the AD4057 is ideal for portable applications. The AD4057 is compatible with both USB power supplies and AC adapter power sources. The internal PMOSFET architecture combined with reverse-charge protection eliminates the need for an external isolation diode. Thermal feedback automatically adjusts the charge current to limit die temperature during high-power operation or elevated ambient temperature conditions. The charge voltage is fixed at 4.2V, while the charge current can be set externally via a single resistor. When the charge current drops to 1/10 of the programmed value after reaching the final float voltage, the AD4057 automatically terminates the charge cycle. When the input voltage (AC adapter or USB power supply) is removed, the AD4057 automatically enters a low-current state, reducing battery leakage current to below 2µA. The AD4057 can also be placed into shutdown mode while power is present, reducing supply current to 25µA. Additional features of the AD4057 include battery temperature monitoring, undervoltage lockout, automatic recharge, and two LED status pins for end-of-charge indication.
Applications
- Mobile phones, PDAs
- MP3, MP4 players
- Digital cameras
- Electronic dictionaries
- GPS portable devices, various chargers
Key features
- Programmable charge current up to 600mA
- No MOSFET, sense resistors, or blocking diodes required
- Complete linear charger for single-cell Li-Ion batteries in SOP package
- Constant-current/constant-voltage operation with thermal regulation for maximizing charge rate without risk of overheating
- 4.2V preset charge voltage with ±1% accuracy
- Charge current monitor output for battery fuel gauging
- Automatic recharge
- C/10 charge termination with LED off
- 2.9V trickle charge device version
- Soft-start limits inrush current
- Battery temperature sensing
- 25uA supply current in standby mode
- Dual LED indication with integrated external LED transistors
