ADIDatasheet (PDF)

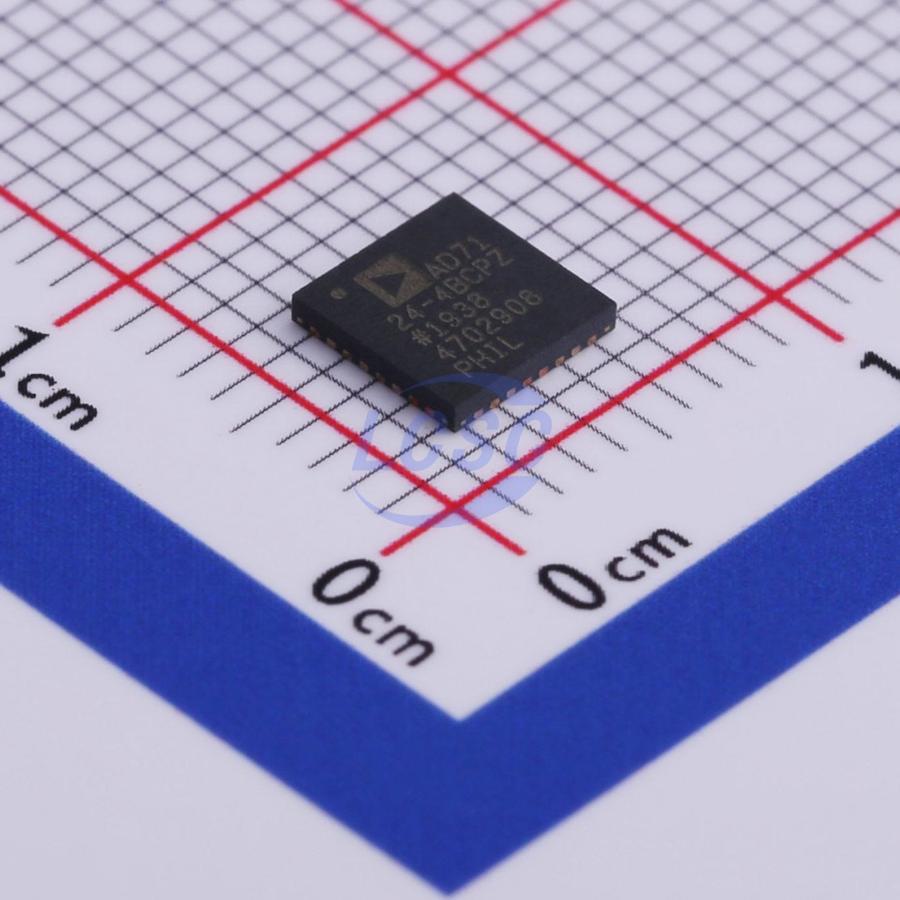

AD7124-4BCPZ-RL7
24 Bit Analog to Digital Converter 4 Input Sigma-Delta LFCSP-32(5x5)
LFCSP-32(5x5)ROHS3 CompliantActive
4-Channel, Low Noise, Low Power, 24-Bit, Sigma-Delta ADC with PGA and Reference
- Manufacturer
- ADI
- Manufacturer part #
- AD7124-4BCPZ-RL7
- Store part #
- C514233
- Package / case
- LFCSP-32(5x5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,131 in stock
#C514233
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,494.08 | ₹1,494.08 |
| 10+ | ₹1,314.33 | ₹13,143.30 |
| 30+ | ₹1,118.98 | ₹33,569.40 |
| 100+ | ₹1,027.27 | ₹1,02,727.00 |
1 × ₹1,494.08
₹1,494.08
excl. GST
₹1,763.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
AD7124-4BCPZ-RL7
₹1,494.08 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Interface
- SPI
- Quiescent Current (Iq)
- 1uA
- Voltage - Supply
- 2.7V~3.6V
- Number of Channels
- 4
- Voltage Reference
- Built-in
- Clock/Oscillator
- Built-in
- Clock Frequency
- 614.4kHz
- Features
- Multiplexers;Built-in temperature sensor;Auto calibration;Bipolar power supply;Under-voltage detection
- Resolution(Bits)
- 19.2kHz;24
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Support
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.093 g
Overview
Applications
- Temperature measurement
- Pressure measurement
- Industrial process control
- Instrumentation
- Smart transmitters
Key features
- 3 power modes RMS noise
- Low power: 24 nV rms at 1.17 SPS, gain = 128 (255 μA typical)
- Mid power: 20 nV rms at 2.34 SPS, gain = 128 (355 μA typical)
- Full power: 23 nV rms at 9.4 SPS, gain = 128 (930 μA typical)
- Up to 22 noise free bits in all power modes (gain = 1)
- Output data rate
- Full power: 9.38 SPS to 19,200 SPS
- Mid power: 2.34 SPS to 4800 SPS
- Low power: 1.17 SPS to 2400 SPS
- Rail-to-rail analog inputs for gains >1
- Simultaneous 50 Hz/60 Hz rejection at 25 SPS (single cycle settling)
- Diagnostic functions (which aid safe integrity level (SIL) certification)
- Crosspoint multiplexed analog inputs
- 4 differential/7 pseudo differential inputs
- Programmable gain (1 to 128)
- Band gap reference with 10 ppm/℃ drift maximum (70 μA)
- Matched programmable excitation currents
- Internal clock oscillator
- On-chip bias voltage generator
- Low-side power switch
- General-purpose outputs
- Multiple filter options
- Internal temperature sensor
- Self and system calibration
- Sensor burnout detection
- Automatic channel sequencer
- Per channel configuration
- Power supply: 2.7 V to 3.6 V and ±1.8 V
- Independent interface power supply
- Power-down current: 5 μA maximum
- Temperature range: -40℃ to +125℃
- 32-lead LFCSP/24-lead TSSOP
- 3-wire or 4-wire serial interface
- SPI, QSPI, MICROWIRE, and DSP compatible
- Schmitt trigger on SCLK
- ESD: 4 kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AD7124-4BCPZ#C398824ADI · LFCSP-32(5x5) | ADI | LFCSP-32(5x5) | 79 | ₹1,562.15 · 79 in stock | View |
| AD7124-4BCPZ-RL#C650584ADI · LFCSP-32(5x5) | ADI | LFCSP-32(5x5) | 8 | ₹1,337.25 · 8 in stock | View | |
 | AD7124-4BBCPZ#C650581ADI · LFCSP-32(5x5) | ADI | LFCSP-32(5x5) | 2 | ₹1,442.52 · 2 in stock | View |
| ADFS7124-4BBCPZ#C23159227ADI · LFCSP-32(5x5) | ADI | LFCSP-32(5x5) | 7 | ₹2,981.70 · 7 in stock | View | |
 | AD7172-4BCPZ#C427450ADI · LFCSP-32(5x5) | ADI | LFCSP-32(5x5) | On request | Price on request | Quote |
