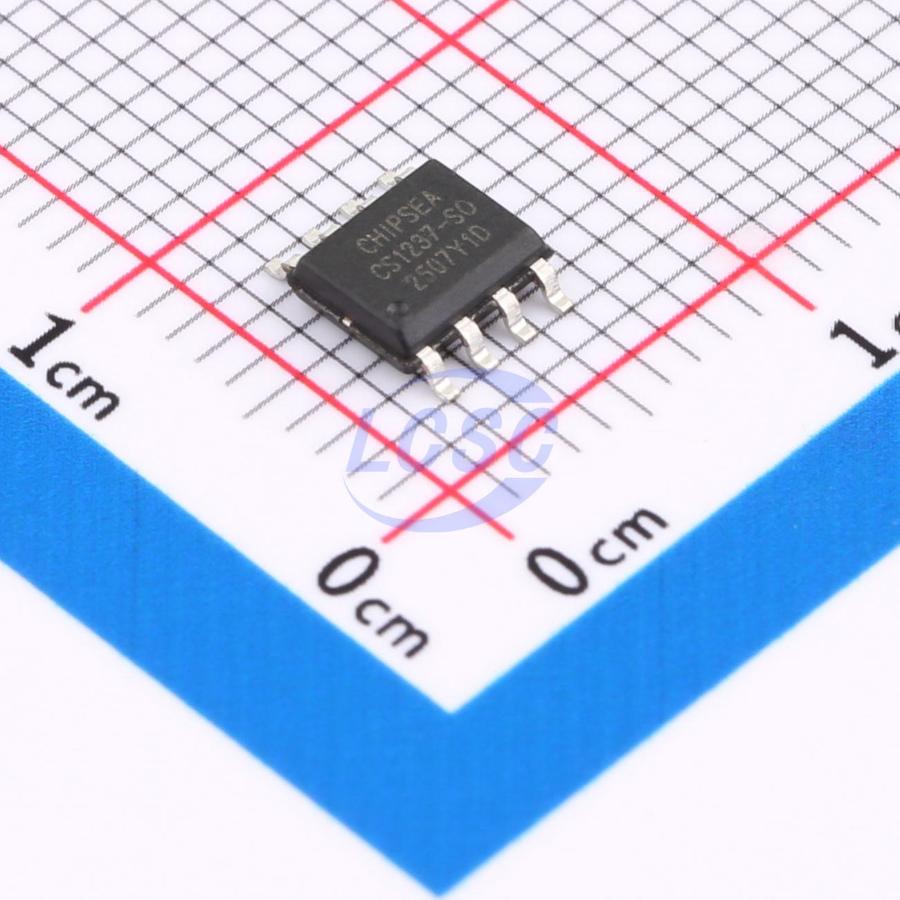

CS1237-SOP8
24 Bit Analog to Digital Converter 1 Input Sigma-Delta SOP-8
SOP-8RoHSActive
24-bit Sigma-Delta ADC
- Manufacturer
- CHIPSEA
- Manufacturer part #
- CS1237-SOP8
- Store part #
- C77801
- Package / case
- SOP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,325 in stock
#C77801
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.27 | ₹81.27 |
| 10+ | ₹69.54 | ₹695.40 |
| 30+ | ₹61.28 | ₹1,838.40 |
| 100+ | ₹53.46 | ₹5,346.00 |
| 500+ | ₹51.29 | ₹25,645.00 |
| 1,000+ | ₹49.98 | ₹49,980.00 |
1 × ₹81.27
₹81.27
excl. GST
₹95.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
CS1237-SOP8
₹81.27 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 100nA
- Voltage - Supply
- 3V~5.5V
- Number of Channels
- 1
- Voltage Reference
- Built-in;External
- Clock/Oscillator
- Built-in
- Clock Frequency
- 5.2MHz
- Features
- Built-in temperature sensor;Input buffer;Power-on reset
- Resolution(Bits)
- 24;1.28kHz
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Support
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
CS1237 is a high-precision, low-power Sigma-Delta ADC chip with one built-in Sigma-Delta ADC, one differential input channel, and one temperature sensor. The ADC employs a second-order Sigma-Delta modulator and achieves PGA amplification through a low-noise instrumentation amplifier architecture, with selectable gain settings of 1, 2, 64, and 128. At PGA=128, the effective resolution can reach 20 bits (operating at 5V). CS1237 features a built-in RC oscillator, eliminating the need for an external crystal. CS1237 supports multiple functional mode configurations via DRDY/DOUT and SCLK, including temperature sensing, PGA selection, ADC output data rate selection, and more. CS1237 features a power-down mode.
Applications
- Industrial process control
- Electronic scales
- Liquid/gas chemical analysis
- Blood analyzers
- Smart transducers
- Portable devices
Key features
- Integrated crystal oscillator
- Integrated temperature sensor
- Power-down function
- 2-wire SPI interface, maximum rate 1.1MHz
- ADC features:
- 24-bit no missing codes
- Selectable PGA gain: 1, 2, 64, 128
- 1-channel 24-bit no missing code differential input, ENOB 20 bits (5V) / 19.5 bits (3.3V) at PGA=128
- P-P noise: PGA=128, 10Hz: 180nV
- INL less than 0.0015%
- Selectable output rate: 10Hz, 40Hz, 640Hz, 1.28kHz
- Internal short function
