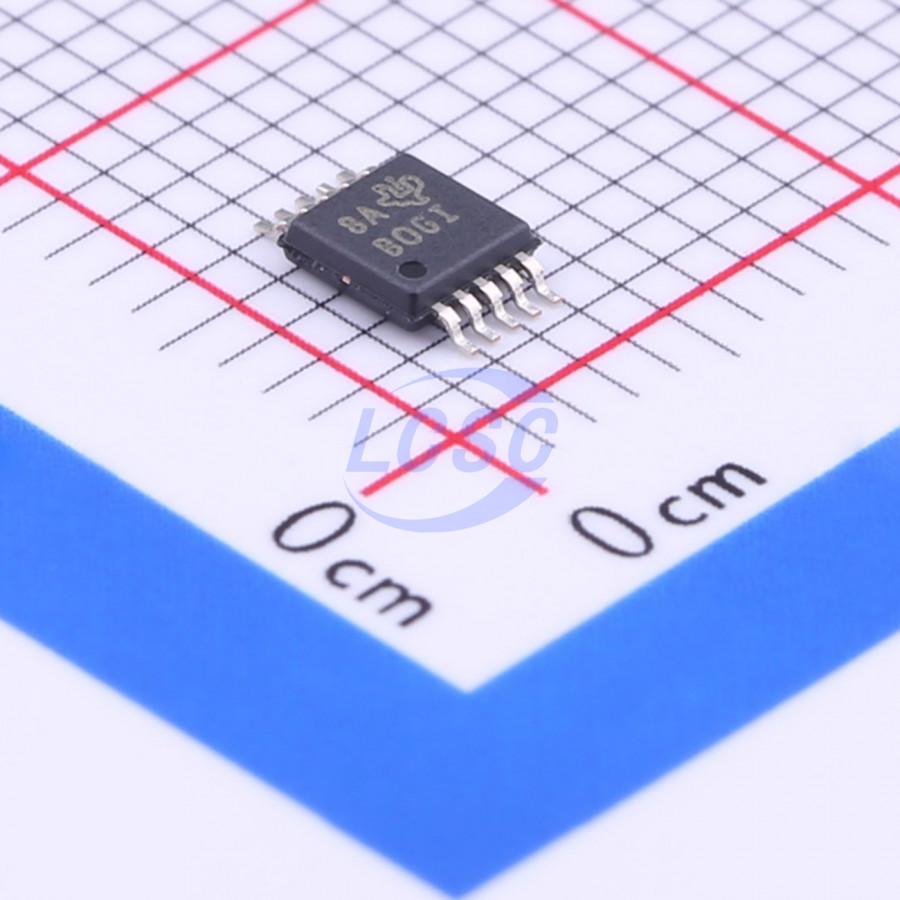

ADS1115IDGSR
I2C 2V~5.5V VSSOP-10 Analog to Digital Converters (ADC) RoHS
PopularVSSOP-10ROHS3 CompliantActive
Ultra-Small, Low-Power, 16-Bit Analog-to-Digital Converter with Internal Reference
- Manufacturer
- TI
- Manufacturer part #
- ADS1115IDGSR
- Store part #
- C37593
- Package / case
- VSSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,044 in stock
#C37593
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.51 | ₹135.51 |
| 10+ | ₹118.16 | ₹1,181.60 |
| 30+ | ₹102.08 | ₹3,062.40 |
| 100+ | ₹89.98 | ₹8,998.00 |
| 500+ | ₹85.10 | ₹42,550.00 |
| 1,000+ | ₹82.58 | ₹82,580.00 |
1 × ₹135.51
₹135.51
excl. GST
₹159.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADS1115IDGSR
₹135.51 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Interface
- I2C
- Quiescent Current (Iq)
- 500nA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 2
- Integral non - linearity
- 1LSB
- Voltage Reference
- Built-in
- Clock/Oscillator
- Built-in
- Features
- Multiplexers;Integrated modulator;Built-in digital filter;Power-on reset
- Resolution(Bits)
- 860Hz;16
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Support
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.063 g
Overview
The ADS1113, ADS1114, and ADS1115 are precision analog-to-digital converters (ADCs) with 16 bits of resolution offered in an ultra-small, leadless QFN-10 package or an MSOP-10 package. The ADS1113/4/5 are designed with precision, power, and ease of implementation in mind. The ADS1113/4/5 feature an onboard reference and oscillator. Data are transferred via an I²C-compatible serial interface; four I²C slave addresses can be selected. The ADS1113/4/5 operate from a single power supply ranging from 2.0V to 5.5V. The ADS1113/4/5 can perform conversions at rates up to 860 samples per second (SPS). An onboard PGA is available on the ADS1114 and ADS1115 that offers input ranges from the supply to as low as ±256mV, allowing both large and small signals to be measured with high resolution. The ADS1115 also features an input multiplexer (MUX) that provides two differential or four single-ended inputs. The ADS1113/4/5 operate either in continuous conversion mode or a single-shot mode that automatically powers down after a conversion and greatly reduces current consumption during idle periods. The ADS1113/4/5 are specified from -40°C to +125°C.
Applications
- PORTABLE INSTRUMENTATION
- CONSUMER GOODS
- BATTERY MONITORING
- TEMPERATURE MEASUREMENT
- FACTORY AUTOMATION AND PROCESS CONTROLS
Key features
- ULTRA-SMALL QFN PACKAGE: 2mm×1.5mm×0.4mm
- WIDE SUPPLY RANGE: 2.0V to 5.5V
- LOW CURRENT CONSUMPTION: Continuous Mode: Only 150μA; Single-Shot Mode: Auto Shut-Down
- PROGRAMMABLE DATA RATE: 8SPS to 860SPS
- INTERNAL LOW-DRIFT VOLTAGE REFERENCE
- INTERNAL OSCILLATOR
- INTERNAL PGA
- I²C INTERFACE: Pin-Selectable Addresses
- FOUR SINGLE-ENDED OR TWO DIFFERENTIAL INPUTS (ADS1115)
- PROGRAMMABLE COMPARATOR (ADS1114 and ADS1115)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CM1103-SOPTA#C20606814CIMO · MSOP-10 | CIMO | MSOP-10 | 4,900 | ₹234.26 · 4,900 in stock | View |
 | ADS1115LIDGSR#C34842333TI · VSSOP-10 | TI | VSSOP-10 | 505 | ₹583.55 · 505 in stock | View |
Questions about ADS1115IDGSR
What Compliance and Reliability Standards Does the ADS1115IDGSR Meet?
The ADS1115IDGSR is manufactured by Texas Instruments to meet RoHS (Restriction of Hazardous Substances) compliance requirements, ensuring environmental safety and regulatory adherence. The part is classified under ECCN EAR99 for export control purposes. For comprehensive technical specifications, thermal performance data, and detailed electrical characteristics, refer to the official TI ADS1115IDGSR datasheet available on the LCSC product page.
What Compatible or Equivalent ADCs Are Available From Texas Instruments?
The ADS1115IDGSR is part of Texas Instruments' ADS1x15 family. The ADS1015 is a related device that offers lower resolution (12-bit) but faster sampling speed. For specific comparisons of pin compatibility, electrical characteristics, and performance metrics between models, consult the device datasheets to ensure the selected alternative meets your application requirements.
What Are Common Applications for the ADS1115IDGSR?
The ADS1115IDGSR is well-suited for sensor signal conditioning, data acquisition systems, and battery voltage monitoring. Its 16-bit resolution and adjustable gain amplifier make it ideal for precision measurements in embedded systems, IoT devices, and industrial control applications where accurate analog signal conversion is required. Engineers often choose this IC when they need low-power, high-resolution ADC functionality in space-constrained designs.
What Are the Key Specifications and Features of the ADS1115IDGSR?
The ADS1115IDGSR is a 16-bit analog-to-digital converter (ADC) from Texas Instruments that converts analog signals to digital format. It features a programmable gain amplifier (PGA), I²C serial interface, and supports up to 860 samples per second. The device offers four single-ended or two differential input channels, making it flexible for various measurement applications. It operates on 2V to 5.5V supply and comes in a compact VSSOP-10 surface-mount package.
