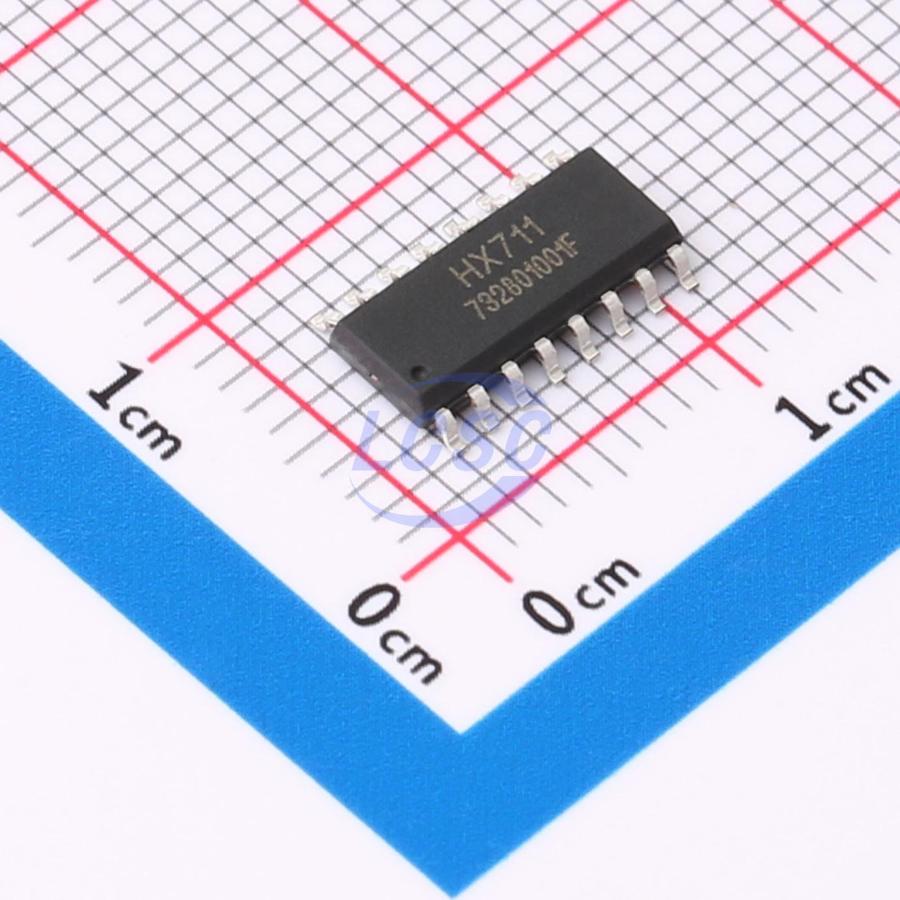

HX711
SPI 2.6V~5.5V SOP-16 Analog to Digital Converters (ADC) RoHS
PopularSOP-16ROHS CompliantActive
24-Bit Analog-to-Digital Converter (ADC) for Weigh Scales
- Manufacturer
- Avia Semicon (Xiamen)
- Manufacturer part #
- HX711
- Store part #
- C6705483
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,65,701 in stock
#C6705483
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.00 | ₹56.00 |
| 10+ | ₹43.54 | ₹435.40 |
| 30+ | ₹37.40 | ₹1,122.00 |
| 100+ | ₹31.98 | ₹3,198.00 |
| 500+ | ₹29.99 | ₹14,995.00 |
| 1,000+ | ₹29.08 | ₹29,080.00 |
1 × ₹56.00
₹56.00
excl. GST
₹66.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX711
₹56.00 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 1.4mA
- Voltage - Supply
- 2.6V~5.5V
- Number of Channels
- 2
- Voltage Reference
- Built-in
- Clock/Oscillator
- Built-in;External
- Clock Frequency
- 11.0592MHz;1MHz~20MHz
- Features
- Multiplexers;Power-on reset
- Resolution(Bits)
- 24;10Hz;80Hz
- Programmable Gain
- Support
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.295 g
Overview
HX711 is a precision 24-bit analog-to-digital converter (ADC) designed for weigh scales and industrial control applications to interface directly with a bridge sensor.
Applications
- Weigh Scales
- Industrial Process Control
Key features
- Two selectable differential input channels
- On-chip active low noise PGA with selectable gain of 32, 64 and 128
- On-chip power supply regulator for load-cell and ADC analog power supply
- On-chip oscillator requiring no external component with optional external crystal
- On-chip power-on-reset
- Simple digital control and serial interface: pin-driven controls, no programming needed
- Selectable 10SPS or 80SPS output data rate
- Simultaneous 50 and 60Hz supply rejection
- Current consumption including on-chip analog power supply regulator: normal operation <1.5mA, power down < 1uA
- Operation supply voltage range: 2.6 ~ 5.5V
- Operation temperature range: -40~+85°C
- 16 pin SOP-16 package
