ADIDatasheet (PDF)

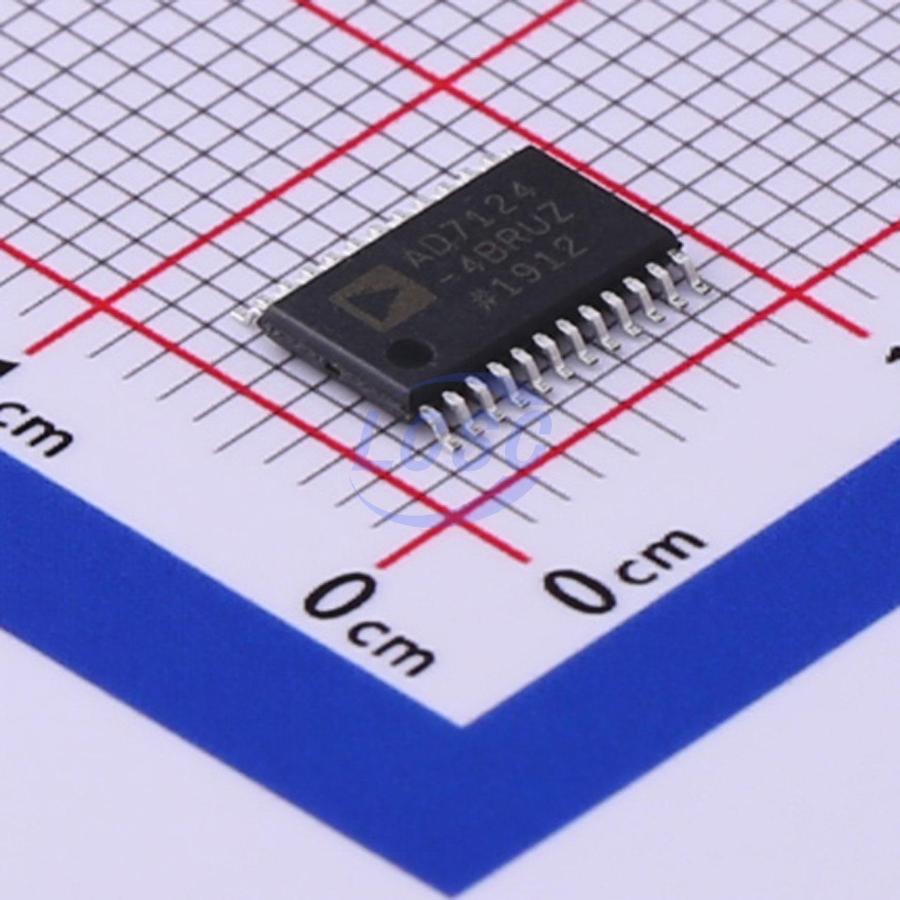

AD7124-4BRUZ-RL7
24 Bit Analog to Digital Converter 4 Input Sigma-Delta TSSOP-24
TSSOP-24ROHS3 CompliantActive
4-Channel, Low Noise, Low Power, 24-Bit, Sigma-Delta ADC with PGA and Reference
- Manufacturer
- ADI
- Manufacturer part #
- AD7124-4BRUZ-RL7
- Store part #
- C462194
- Package / case
- TSSOP-24
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,940 in stock
#C462194
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,736.23 | ₹1,736.23 |
| 10+ | ₹1,587.72 | ₹15,877.20 |
| 30+ | ₹1,329.92 | ₹39,897.60 |
| 100+ | ₹1,238.10 | ₹1,23,810.00 |
1 × ₹1,736.23
₹1,736.23
excl. GST
₹2,048.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
AD7124-4BRUZ-RL7
₹1,736.23 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Interface
- SPI
- Quiescent Current (Iq)
- 5uA
- Voltage - Supply
- 2.7V~3.6V
- Number of Channels
- 4
- Voltage Reference
- Built-in
- Clock/Oscillator
- Built-in
- Clock Frequency
- 614.4kHz
- Features
- Multiplexers;Built-in temperature sensor;Auto calibration;Multi-chip synchronization
- Resolution(Bits)
- 19.2kHz;24
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Support
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.143 g
Overview
Applications
- Temperature measurement
- Pressure measurement
- Industrial process control
- Instrumentation
- Smart transmitters
Key features
- 3 power modes RMS noise
- Low power: 24 nV rms at 1.17 SPS, gain = 128 (255 μA typical)
- Mid power: 20 nV rms at 2.34 SPS, gain = 128 (355 μA typical)
- Full power: 23 nV rms at 9.4 SPS, gain = 128 (930 μA typical)
- Up to 22 noise free bits in all power modes (gain = 1)
- Output data rate
- Full power: 9.38 SPS to 19,200 SPS
- Mid power: 2.34 SPS to 4800 SPS
- Low power: 1.17 SPS to 2400 SPS
- Rail-to-rail analog inputs for gains >1
- Simultaneous 50 Hz/60 Hz rejection at 25 SPS (single cycle settling)
- Diagnostic functions (which aid safe integrity level (SIL) certification)
- Crosspoint multiplexed analog inputs
- 4 differential/7 pseudo differential inputs
- Programmable gain (1 to 128)
- Band gap reference with 10 ppm/℃ drift maximum (70 μA)
- Matched programmable excitation currents
- Internal clock oscillator
- On-chip bias voltage generator
- Low-side power switch
- General-purpose outputs
- Multiple filter options
- Internal temperature sensor
- Self and system calibration
- Sensor burnout detection
- Automatic channel sequencer
- Per channel configuration
- Power supply: 2.7 V to 3.6 V and ±1.8 V
- Independent interface power supply
- Power-down current: 5 μA maximum
- Temperature range: -40℃ to +125℃
- 32-lead LFCSP/24-lead TSSOP
- 3-wire or 4-wire serial interface
- SPI, QSPI, MICROWIRE, and DSP compatible
- Schmitt trigger on SCLK
- ESD: 4 kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AD7124-4BRUZ-RL#C650585ADI · TSSOP-24 | ADI | TSSOP-24 | 23 | ₹1,616.93 · 23 in stock | View |
 | AD7124-4BRUZ#C67717ADI · TSSOP-24 | ADI | TSSOP-24 | 167 | ₹1,769.14 · 167 in stock | View |
 | LHA7668B-4SFTG#C42459094Legendsemi · TSSOP-24 | Legendsemi | TSSOP-24 | 281 | ₹1,351.95 · 281 in stock | View |
