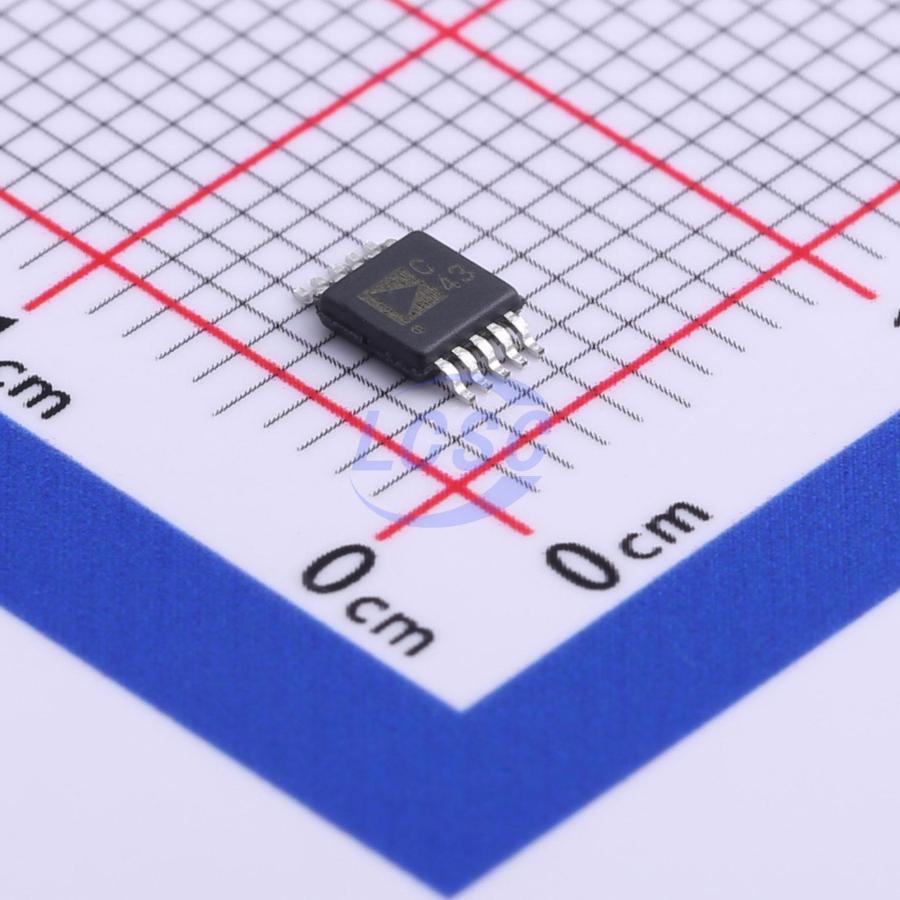

AD7789BRMZ-REEL

SPI 2.5V~5.25V MSOP-10 Analog to Digital Converters (ADC) RoHS

MSOP-10ROHS3 CompliantActive

Low Power, Sigma-Delta ADCs

Manufacturer: ADI
Manufacturer part #: AD7789BRMZ-REEL
Store part #: C67290
Package / case: MSOP-10
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,620 in stock

#C67290

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
1+	₹938.81	₹938.81
10+	₹832.79	₹8,327.90
30+	₹767.96	₹23,038.80
100+	₹713.76	₹71,376.00

Quantity (min 1)

1 × ₹938.81

₹938.81

excl. GST

₹1,107.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AD7789BRMZ-REEL

₹938.81 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+105℃
Interface: SPI
Quiescent Current (Iq): 1uA
Voltage - Supply: 2.5V~5.25V
Number of Channels: 1
Voltage Reference: External
Clock/Oscillator: Built-in
Features: Bipolar input;Integrated modulator;Built-in digital filter;Soft reset;Power-on reset
Resolution(Bits): 16.6Hz;24
ADC architecture: Sigma-Delta
Programmable Gain: Not supported

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.061 g

Overview

The AD7788/AD7789 are low power, low noise, analog front ends for low frequency measurement applications. The AD7789 contains a low noise, 24-bit, ∑-∆ analog-to-digital converter (ADC) with one differential input. The AD7788 is a 16-bit version of the AD7789. The devices operate from an internal clock. Therefore, the user does not have to supply a clock source to the devices. The output data rate is 16.6 Hz, which gives simultaneous 50 Hz/60 Hz rejection. The devices operate with a single power supply from 2.5 V to 5.25 V. When operating from a 3V supply, the power dissipation for the device is 225 μW maximum. The AD7788/AD7789 are available in a 10-lead MSOP.

Applications

Smart transmitters
Battery applications
Portable instrumentation
Sensor measurement
Temperature measurement
Pressure measurement
Weigh scales
4 to 20 mA loops

Key features

AD7788: 16-bit resolution
AD7789: 24-bit resolution
Power Supply: 2.5 V to 5.25 V operation Normal: 75 μA maximum Power-down: 1 μA maximum
RMS noise: 1.5 μV
AD7788: 16-bit p-p resolution
AD7789: 19-bit p-p resolution (21.5 bits effective)
Integral nonlinearity: 3.5 ppm typical
Simultaneous 50 Hz and 60 Hz rejection
Internal clock oscillator
VDD monitor channel
10-lead MSOP
3-wire serial
SPI-, QSPI-, MICROWIRE-, and DSP-compatible
Schmitt trigger on SCLK

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	AD7789BRMZ#C209451ADI · MSOP-10	ADI	MSOP-10	On request	₹736.94 · 0 in stock	View
	ADS1244IDGSR#C701626TI · MSOP-10	TI	MSOP-10	On request	Price on request	Quote
