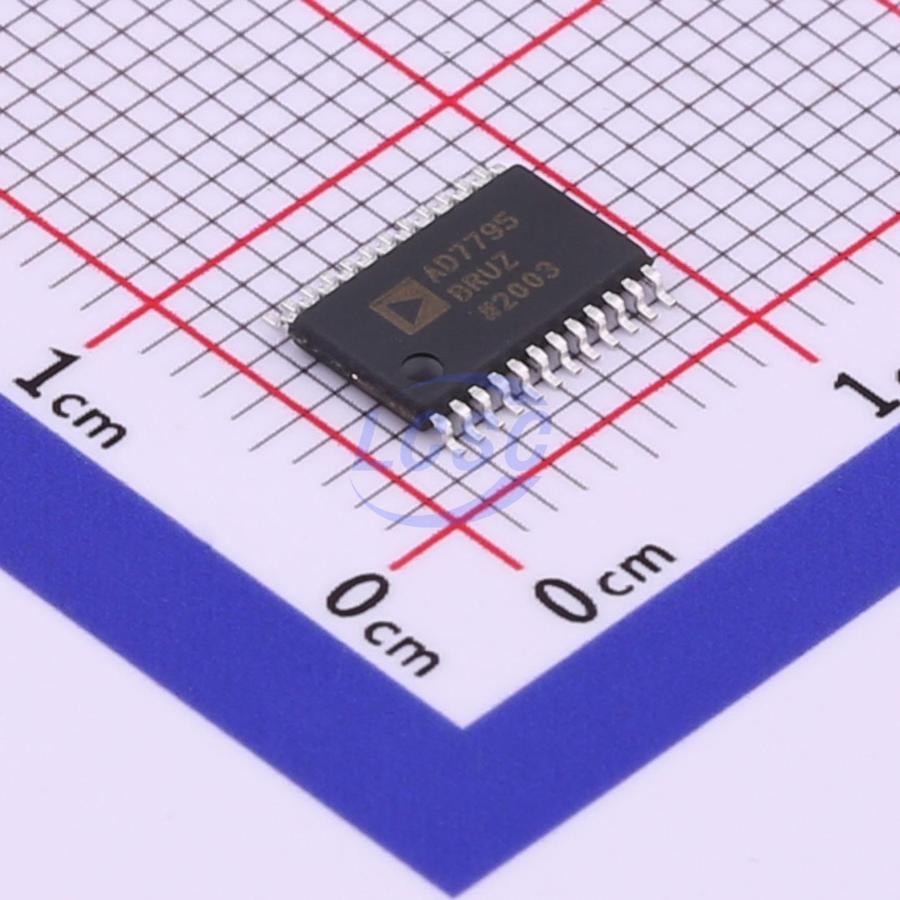

AD7795BRUZ-REEL

16 Bit Analog to Digital Converter 6 Input Sigma-Delta TSSOP-24

TSSOP-24ROHS3 CompliantActive

6-channel, low-noise, low-power sigma-delta (∑-△) ADC with built-in on-chip instrumentation amplifier and reference voltage source

Manufacturer: ADI
Manufacturer part #: AD7795BRUZ-REEL
Store part #: C456288
Package / case: TSSOP-24
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

991 in stock

#C456288

Stock & price checked 20 h ago

Quantity	Unit price	Pack price
1+	₹2,154.53	₹2,154.53
10+	₹2,077.43	₹20,774.30
30+	₹1,810.91	₹54,327.30
100+	₹1,694.26	₹1,69,426.00

Quantity (min 1)

1 × ₹2,154.53

₹2,154.53

excl. GST

₹2,542.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AD7795BRUZ-REEL

₹2,154.53 for 1 + GST

Specifications

Operating Temperature: -40℃~+105℃
Interface: SPI
Quiescent Current (Iq): 1uA
Voltage - Supply: 2.7V~5.25V
Number of Channels: 6
Integral non - linearity: 15LSB
Voltage Reference: Built-in
Clock/Oscillator: Built-in
Clock Frequency: 64kHz
Features: Bipolar input;Built-in temperature sensor;Multiplexers;Integrated modulator;Built-in digital filter;Auto calibration;Input buffer
Resolution(Bits): 470Hz;16
ADC architecture: Sigma-Delta
Programmable Gain: Support

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.163 g

Overview

The AD7794/AD7795 are low power, low noise, complete analog front ends designed for high precision measurement applications. They incorporate a low noise 24-bit/16-bit, 6-channel differential input Σ-Δ ADC, along with an on-chip low noise instrumentation amplifier that allows small signals to be applied directly to the ADC. Each device features a precision low noise, low drift internal bandgap voltage reference, and supports up to two external differential references. Additional on-chip features include programmable excitation current sources, burnout current control, and a bias voltage generator that can set the common-mode voltage of any channel to AVDD/2. A low-side power switch can be used to power down bridge sensors between conversions, minimizing overall system power consumption. The AD7794/AD7795 can operate with either an internal or external clock, with output data rates ranging from 4.17 Hz to 470 Hz. Both devices operate from a 2.7 V to 5.25 V supply. Grade B devices (AD7794 and AD7795) are rated for the -40°C to +105°C temperature range, while Grade C devices (AD7794) are rated for -40°C to +125°C. These devices have a typical current consumption of 400 μA and are available in a 24-lead TSSOP package.

Applications

Temperature measurement
Pressure measurement
Electronic scales
Strain gauge sensors
Gas analysis
Industrial process control
Instrumentation
Blood analysis
Smart transmitters
Liquid/gas chromatography
6-digit DVM

Key features

Up to 23-bit effective resolution
RMS noise: 40nV (at 4.17Hz), 85nV (at 16.7Hz)
Current: 400μA (typical)
Power-down mode: 1μA maximum
Low-noise programmable gain instrumentation amplifier
Bandgap voltage reference with typical temperature drift of 4ppm/°C
Update rate: 4.17Hz to 470Hz
6 differential analog inputs
Internal clock oscillator
Simultaneous 50Hz/60Hz rejection
Reference voltage detection
Programmable current sources
On-chip bias voltage generator
Burnout current control
Low-side power switch
Supply voltage: 2.7V to 5.25V
Temperature range: Grade B: -40°C to +105°C; Grade C: -40°C to +125°C
Separate interface supply
24-pin TSSOP package
3-wire serial interface, QSPI, MICROWIRE, DSP compatible with Schmitt trigger on SCLK
